RAFI E-BOX M12 Series Latching Emergency Stop Push Button, Screw, 40 mm Cutout, 1 NO/2 NC, IP65
- RS Stock No.:
- 524-416
- Mfr. Part No.:
- 1.22.114.392/0200
- Brand:
- RAFI
Subtotal (1 unit)*
£101.25
(exc. VAT)
£121.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £101.25 |
*price indicative
- RS Stock No.:
- 524-416
- Mfr. Part No.:
- 1.22.114.392/0200
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Mount Type | Screw | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 40mm | |
| Contact Configuration | 1 NO/2 NC | |
| Push Button Actuation | Latching | |
| Illuminated | No | |
| Series | E-BOX M12 | |
| IP Rating | IP65 | |
| Colour | Red, Yellow | |
| Number of Auxiliary Contacts | 3 | |
| Contact AC Voltage | 35V ac | |
| Contact DC Voltage | 35V dc | |
| Contact Current | 0.1A | |
| Depth | 60.2mm | |
| Length | 123.2mm | |
| Head Diameter | 40mm | |
| Hazardous Area Certification | CE | |
| Standards/Approvals | RoHS Compliant, REACH Compliant, DIN EN 60529 | |
| Width | 40mm | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Mount Type Screw | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 40mm | ||
Contact Configuration 1 NO/2 NC | ||
Push Button Actuation Latching | ||
Illuminated No | ||
Series E-BOX M12 | ||
IP Rating IP65 | ||
Colour Red, Yellow | ||
Number of Auxiliary Contacts 3 | ||
Contact AC Voltage 35V ac | ||
Contact DC Voltage 35V dc | ||
Contact Current 0.1A | ||
Depth 60.2mm | ||
Length 123.2mm | ||
Head Diameter 40mm | ||
Hazardous Area Certification CE | ||
Standards/Approvals RoHS Compliant, REACH Compliant, DIN EN 60529 | ||
Width 40mm | ||
- COO (Country of Origin):
- HU

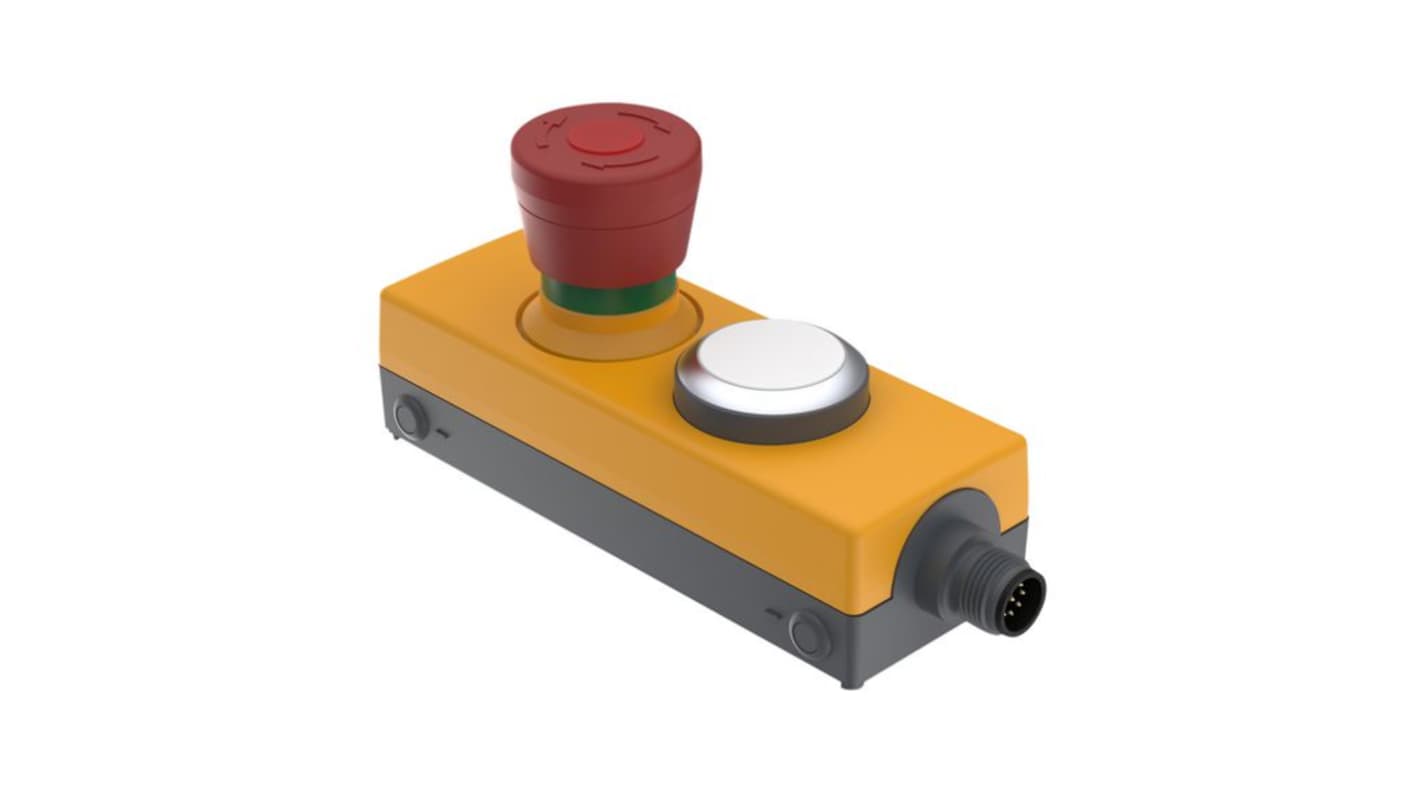

The RAFI E-BOX M12 emergency stop is a ready-to-connect, completely equipped housing including actuator and switching elements. Thus, for example emergency stop, on or off and up or down functions, also with additional status displays, can be implemented with the very compact dimensions of the E-Box. The assembly Screw on the clip, put on the box, connect the plug, check and ready. The E-Box M12 can be used wherever individual command device units are required at decentralized locations. Typically, for example, for emergency stop applications along a production facility or at the safety fence. The dimensions of the E-Box M12 are based on the edge dimensions of a 40 mm profile rail and the mounting concept is also designed for this.
Various actuator-indicator combinations from the RAFIX 22 FS+ control unit series
With yellow upper part of housing for combinations with emergency stop actuator
With grey upper part of housing for pushbutton combinations
