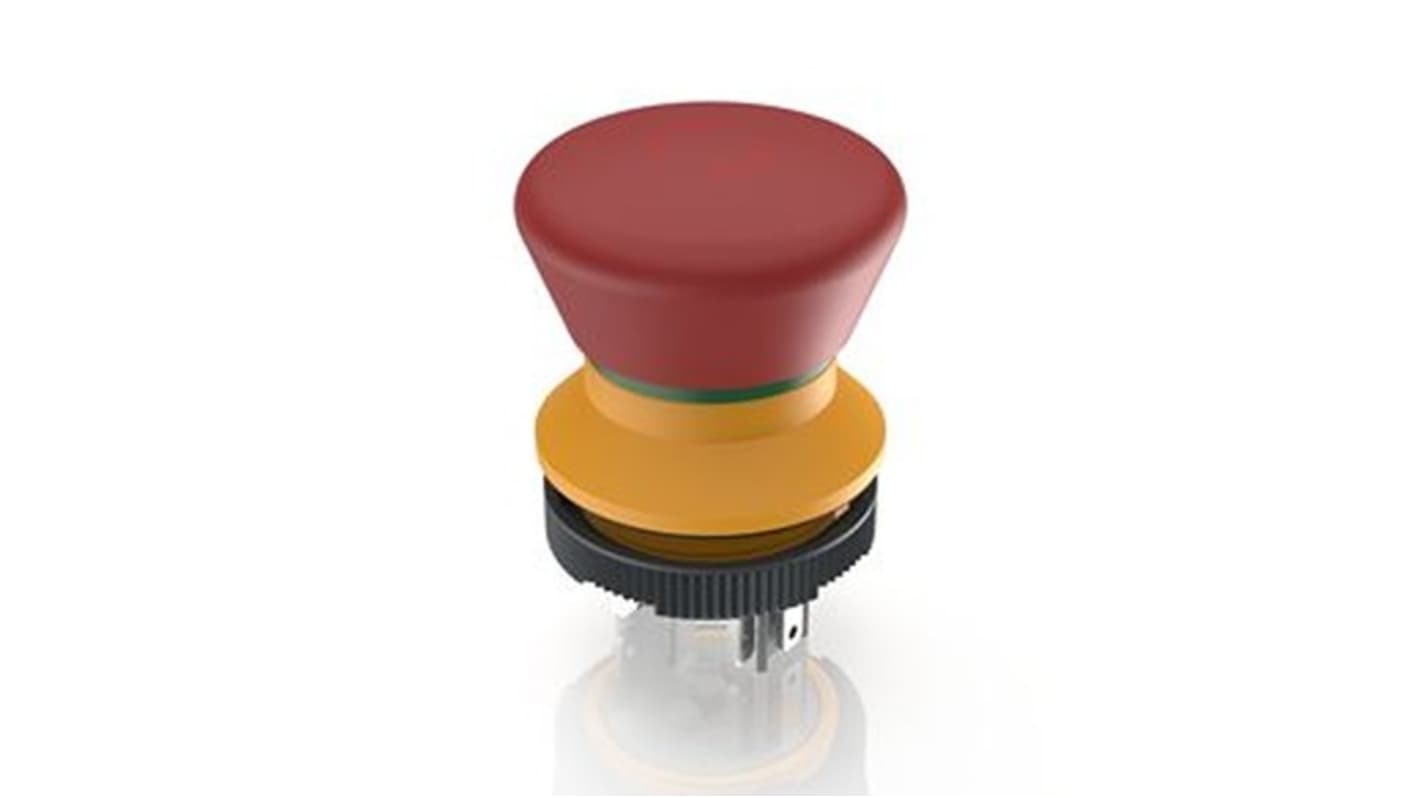

RAFI LUMOTAST 22 Series Latching Emergency Stop Push Button, PCB, 22.3 mm Cutout, 1 NO/2 NC, IP65
- RS Stock No.:
- 523-723
- Mfr. Part No.:
- 1.15.105.022/0000
- Brand:
- RAFI
Temporarily out of stock
- RS Stock No.:
- 523-723
- Mfr. Part No.:
- 1.15.105.022/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Mount Type | PCB | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22.3mm | |
| Contact Configuration | 1 NO/2 NC | |
| Push Button Actuation | Latching | |
| Series | LUMOTAST 22 | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Colour | Red, Yellow | |
| Terminal Type | 2.8 x 0.8 mm Flat Quick-Connect Terminal | |
| Contact Current | 3A | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 24V dc | |
| Number of Auxiliary Contacts | 2 | |
| Depth | 43.5mm | |
| Head Diameter | 29.6mm | |
| Length | 29.6mm | |
| Standards/Approvals | DIN EN 60529, DIN EN ISO 13850, RoHS Compliant, REACH Compliant | |
| Hazardous Area Certification | UL | |
| Width | 29.6mm | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Mount Type PCB | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22.3mm | ||
Contact Configuration 1 NO/2 NC | ||
Push Button Actuation Latching | ||
Series LUMOTAST 22 | ||
Illuminated No | ||
IP Rating IP65 | ||
Colour Red, Yellow | ||
Terminal Type 2.8 x 0.8 mm Flat Quick-Connect Terminal | ||
Contact Current 3A | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 24V dc | ||
Number of Auxiliary Contacts 2 | ||
Depth 43.5mm | ||
Head Diameter 29.6mm | ||
Length 29.6mm | ||
Standards/Approvals DIN EN 60529, DIN EN ISO 13850, RoHS Compliant, REACH Compliant | ||
Hazardous Area Certification UL | ||
Width 29.6mm | ||
- COO (Country of Origin):
- DE
The RAFI emergency stop button comply with IEC 60 204, IEC 60 073, IEC 60 947 and VDE 0113 Part 1. They are protected against unauthorized actuation by a positively guided mechanical movement sequence in accordance with DIN EN ISO 13850. To protect against accidental actuation, a pressure point must be overcome and the pushbutton engages in the pressed position. Due to the shape of the actuating element, the emergency stop pushbutton is protected against blocking. This means that an initiated emergency stop procedure cannot be interrupted by jamming objects. See appendix for original operating instructions.
Mounting hole diameter 22.3 mm
Night design illumination of the arrows possible
Low mounting depth of 17.6 mm
Water jet protection class IP 65 on front
Switching elements with silver contacts
Contact configurations 2 NC 2 NC + 1 NO
Quick-connect terminal
Complies with DIN EN ISO 13852
