Finder 39 Series Interface Relay, DIN Rail, 110V ac/dc Coil, SPST, 5.6mA
- RS Stock No.:
- 819-8944
- Mfr. Part No.:
- 39.51.0.125.0060
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 819-8944
- Mfr. Part No.:
- 39.51.0.125.0060
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 110V ac/dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | 39 | |
| Terminal Type | Push-in | |
| Switching Current | 6A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 5.6mA | |
| Switching DC Voltage | 110V dc | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Width | 90.7mm | |
| Height | 87mm | |
| Standards/Approvals | EAC, CE | |
| Length | 6.2mm | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 110V ac/dc | ||
Product Type Interface Relay | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series 39 | ||
Terminal Type Push-in | ||
Switching Current 6A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Current 5.6mA | ||
Switching DC Voltage 110V dc | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Width 90.7mm | ||
Height 87mm | ||
Standards/Approvals EAC, CE | ||
Length 6.2mm | ||
- COO (Country of Origin):
- IT

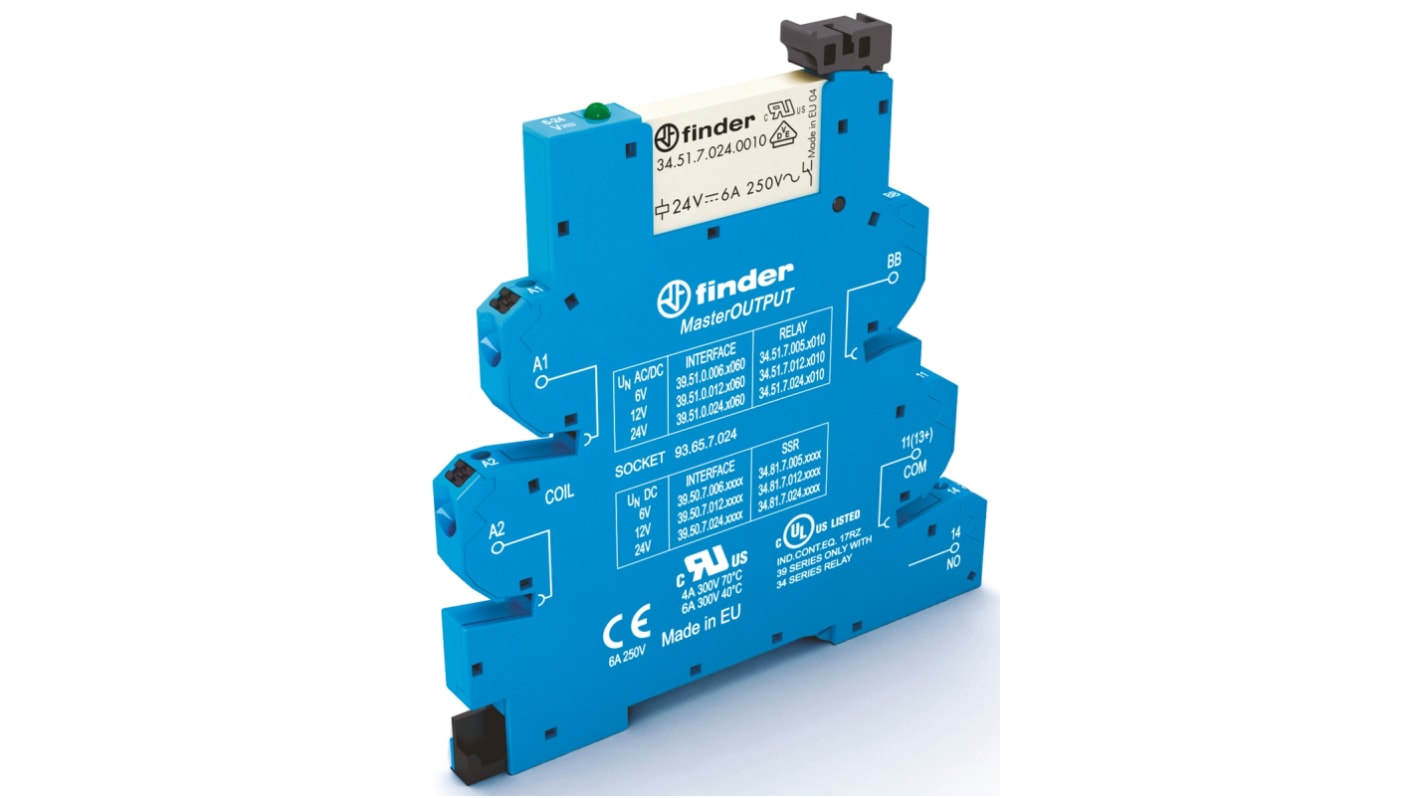

39 Series - EMR Screw Terminals
A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
