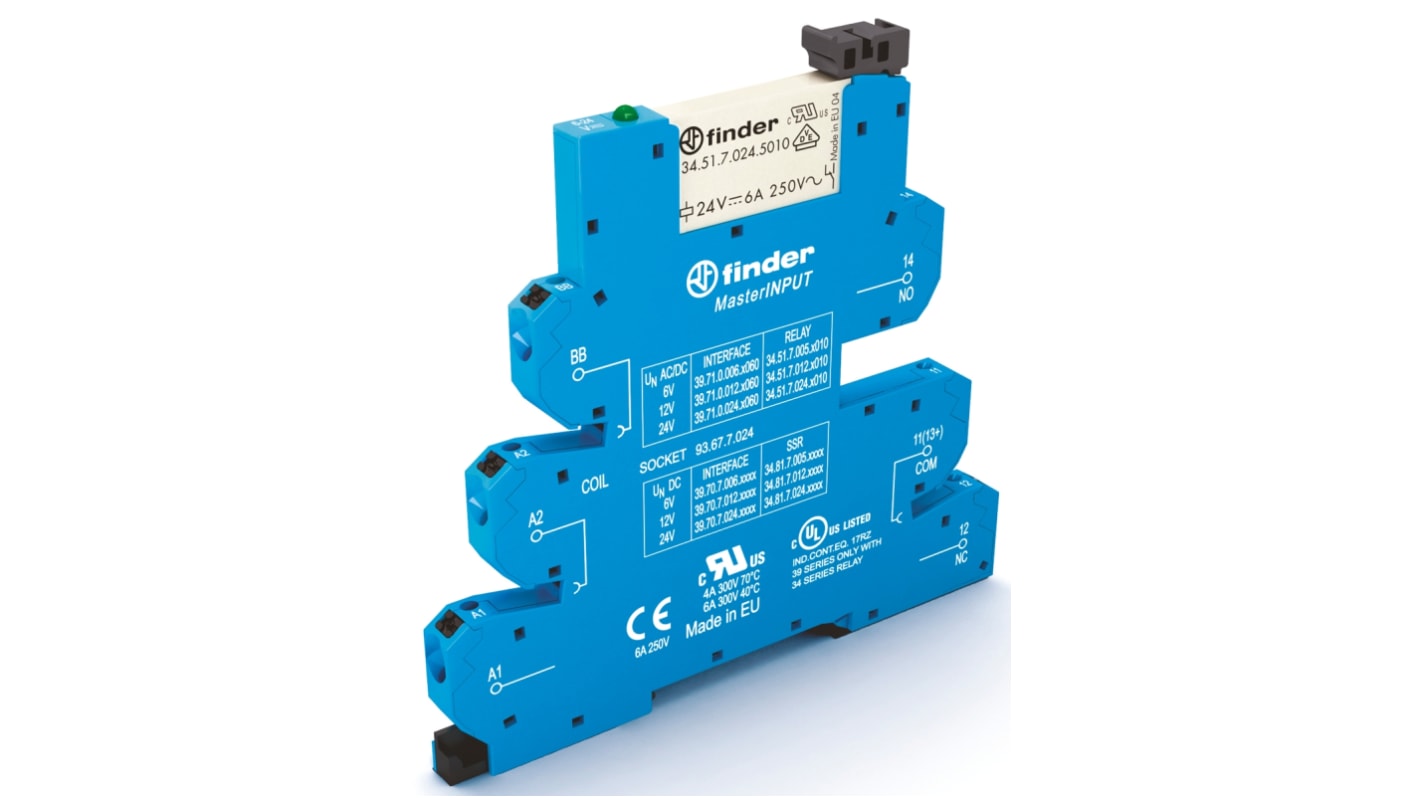

Finder 39 Series Interface Relay, DIN Rail Mount, 230V ac Coil, SPDT
- RS Stock No.:
- 819-8916
- Mfr. Part No.:
- 39.71.8.230.5060
- Brand:
- Finder
Available to back order for despatch 13/09/2024
Price Each
£27.60
(exc. VAT)
£33.12
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £27.60 |
| 5 - 9 | £26.78 |
| 10 + | £25.58 |
- RS Stock No.:
- 819-8916
- Mfr. Part No.:
- 39.71.8.230.5060
- Brand:
- Finder
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
39 Series - EMR Screw Terminals
A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Minimum Input Voltage | 184V ac/dc |
| Maximum Input Voltage | 264V ac/dc |
| Terminal Type | Push In |
| Switching Voltage | 250 → 400V ac |
| Depth | 90.7mm |
| Height | 94.3mm |
| Length | 6.2mm |
| Series | 39 Series |
| Contact Material | Silver Alloy |
| Input Current | 4.3mA |
| Dimensions | 6.2 x 90.7 x 94.3mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Special Features | Protection category IP 20 |
| Input Voltage Range | 184 → 264V |
| Operating Temperature Range | -40 → +70°C |
| Turn On Time | 5ms |
| Turn Off Time | 6ms |
