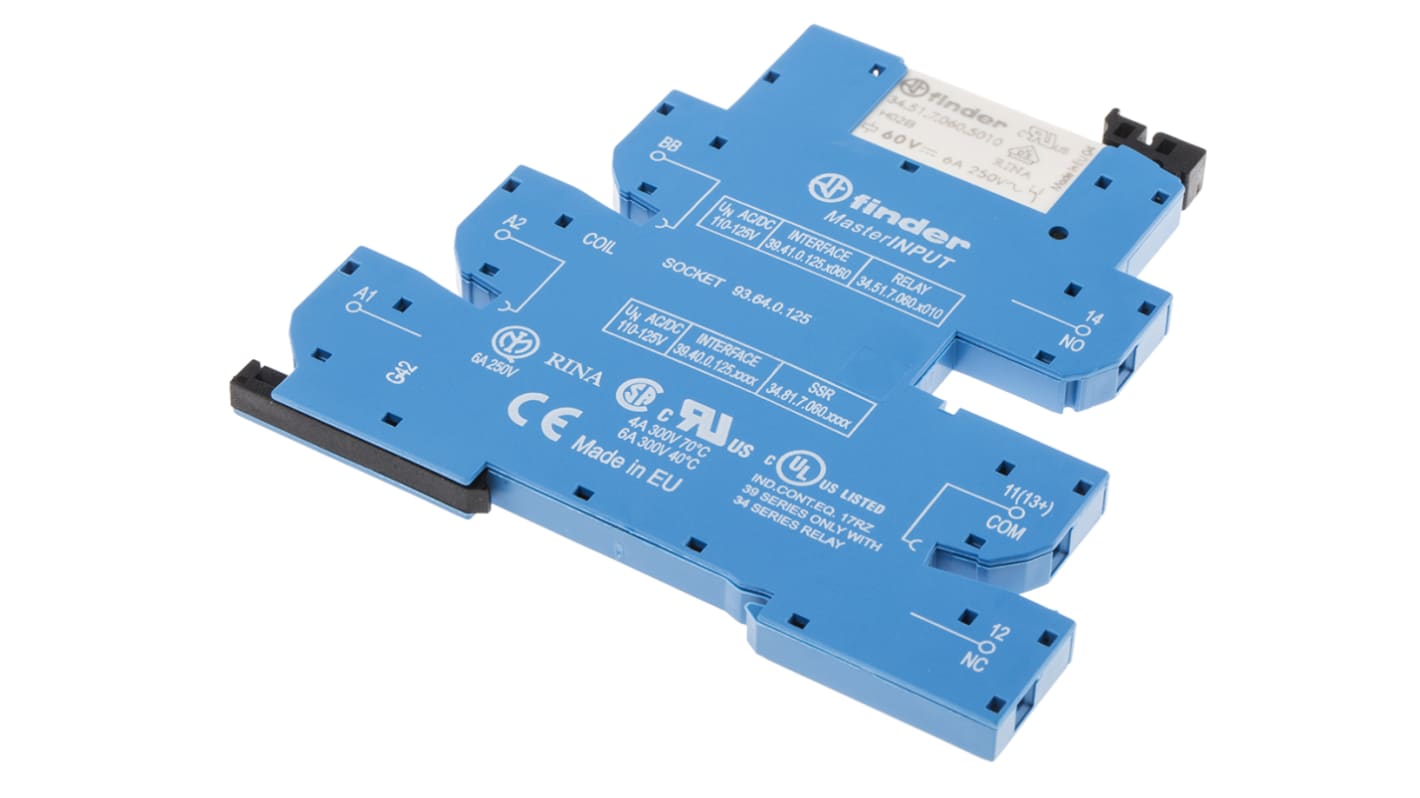

Finder 39 Series Interface Relay, DIN Rail, 125 V ac Coil, SPDT

RS Stock No.:: 776-1513
Mfr. Part No.:: 39.41.0.125.5060
Brand:: Finder

Finder 39 Series Interface Relay, DIN Rail, 125 V ac Coil, SPDT

Bulk discount available

Subtotal (1 unit)*

£29.87

(exc. VAT)

£35.84

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

20 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£29.87
5 - 9	£28.64
10 +	£27.15

*price indicative

Finder Relay Sockets

Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.

Explore Finder Relays Sockets

RS Stock No.:: 776-1513
Mfr. Part No.:: 39.41.0.125.5060
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Product Type	Interface Relay
	Coil Voltage	125 V ac
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	39
	Terminal Type	Screw
	Switching Current	6 A
	Minimum Operating Temperature	-40°C
	Switching AC Voltage	250 V ac
	Contact Material	Gold Plated
	Maximum Operating Temperature	70°C
	Width	6.2 mm
	Length	6.2mm
	Standards/Approvals	CE, EAC
	Height	94.3mm

	Select all
	Brand Finder
	Product Type Interface Relay
	Coil Voltage 125 V ac
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series 39
	Terminal Type Screw
	Switching Current 6 A
	Minimum Operating Temperature -40°C
	Switching AC Voltage 250 V ac
	Contact Material Gold Plated
	Maximum Operating Temperature 70°C
	Width 6.2 mm
	Length 6.2mm
	Standards/Approvals CE, EAC
	Height 94.3mm

COO (Country of Origin):: IT

Finder 39 Series Interface Relay Module, 125V AC Coil Voltage, SPDT Contact Configuration - 39.41.0.125.5060

This interface relay module is designed for efficient control in electrical applications. The SPDT configuration allows for versatile switching, accommodating loads with a current rating of 6/10A. With a robust construction suitable for DIN rail mounting, the module measures 90.7mm in depth, 94.3mm in height, and 6.2mm in length. It operates effectively across extreme temperatures, ranging from -40 to +70°C, making it ideal for varied environments.

Features & Benefits

• Supports both 250V AC and 400V AC load voltage ratings

• Equipped with gold-plated contacts for enhanced reliability

• Quick turn-on time of 6ms ensures minimal downtime

• Successfully meets cURus and EAC standards for safety

• Large operating temperature range enables diverse applications

• Features a compact design suitable for space-constrained setups

Applications

• Used with industrial control systems for automation

• Appropriate for high voltage switching in electrical circuits

• Ideal for safety interlocks in machinery control

• Employed in HVAC systems for efficient relay tasks

What type of mounting is compatible with this relay?

The relay is designed for easy installation on DIN rail systems, ensuring secure placement in control panels and electrical enclosures.

Can this relay be used in extreme temperature conditions?

Yes, it operates effectively within a temperature range from -40 to +70°C, suitable for challenging environments where temperature fluctuations occur.

How many cycles can this relay withstand over its lifetime?

The interface relay module is rated for a lifespan of 60,000 cycles, ensuring dependable performance throughout its operational life.

What kinds of load ratings does this relay support?

This module supports load currents of 6A and 10A, and it can handle load voltage ratings of 250/400V AC, making it flexible for different applications.
