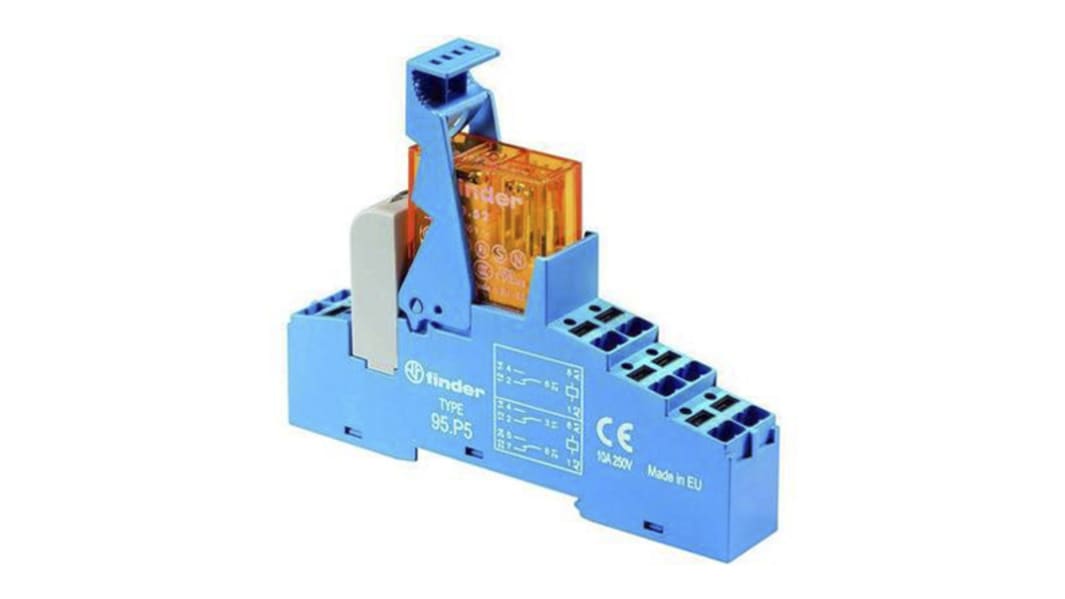

Finder 48 Series Interface Relay Module, DIN Rail Mount, 230V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

RS Stock No.:: 123-2815
Mfr. Part No.:: 48.P5.8.230.0060SPA
Brand:: Finder

Finder 48 Series Interface Relay Module, DIN Rail Mount, 230V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

Subtotal (1 unit)*

£25.10

(exc. VAT)

£30.12

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

71 unit(s) ready to ship
Plus 30 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£25.10

*price indicative

Finder Relay Sockets

Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.

Explore Finder Relays Sockets

RS Stock No.:: 123-2815
Mfr. Part No.:: 48.P5.8.230.0060SPA
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	230V ac
	Contact Configuration	DPDT-2C/0
	Mounting Type	DIN Rail
	Number of Poles	2
	Series	48 Series
	Load Current Rating	8A
	Minimum Input Voltage	250V ac
	Load Voltage Rating	250/400V ac
	Maximum Input Voltage	400V ac
	Terminal Type	Push In
	Switching Voltage	250 V ac → 400V ac
	Depth	75.3mm
	Height	95.5mm
	Length	15.8mm
	Contact Material	Silver Alloy
	Input Current	7mA
	Relay Switching Classification	General Purpose Relay
	Relay Type	Interface Relay
	Accessory Type	Interface Relay
	Turn Off Time	(dc) 12 ms, (ac) 4ms
	Operating Temperature Range	-40 → +70°C
	Life	100000 Cycles
	Standards Met	CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Dimensions	15.8 x 75.3 x 95.5mm
	Special Features	AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Turn On Time	(dc) 12 ms, (ac) 7ms

	Select all
	Brand Finder
	Coil Voltage 230V ac
	Contact Configuration DPDT-2C/0
	Mounting Type DIN Rail
	Number of Poles 2
	Series 48 Series
	Load Current Rating 8A
	Minimum Input Voltage 250V ac
	Load Voltage Rating 250/400V ac
	Maximum Input Voltage 400V ac
	Terminal Type Push In
	Switching Voltage 250 V ac → 400V ac
	Depth 75.3mm
	Height 95.5mm
	Length 15.8mm
	Contact Material Silver Alloy
	Input Current 7mA
	Relay Switching Classification General Purpose Relay
	Relay Type Interface Relay
	Accessory Type Interface Relay
	Turn Off Time (dc) 12 ms, (ac) 4ms
	Operating Temperature Range -40 → +70°C
	Life 100000 Cycles
	Standards Met CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Dimensions 15.8 x 75.3 x 95.5mm
	Special Features AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Turn On Time (dc) 12 ms, (ac) 7ms

COO (Country of Origin):: IT

Finder 48 Series Interface Relay Module, 230V AC Coil Voltage, 8A Load Current Rating - 48.P5.8.230.0060SPA

This interface relay module is an essential addition to automation and control systems. Designed for DIN rail mounting, it features a compact size of 15.8 x 75.3 x 95.5mm, ensuring compatibility with various electrical setups. Supporting a coil voltage of 230V AC, this general-purpose relay provides reliable switching capabilities for diverse applications.

Features & Benefits

• Offers high load current rating of 8A for robust performance
• Equipped with push-in terminals for easy and secure connections
• Operates effectively in temperatures from -40 to +70 °C
• Complies with multiple international standards for safety and reliability
• Incorporates AC coils or DC sensitive coils for flexible usage
• Features an identification label and supply status indication for user convenience

Applications

• Utilised in building automation for efficient control systems
• Ideal for control panels in industrial settings
• Implemented in hoists and cranes for safe operation
• Serves in medical and dental equipment for reliable performance
• Commonly used in electrical distribution panels for effective load management

What current and voltage ratings should I consider for effective operation?

This module handles a load current of up to 8A with a maximum switching voltage of 400V AC. Ensure the electrical systems align with these specifications for optimal performance.

How does the design facilitate integration into existing setups?

With its compact design and DIN rail mounting capability, it fits seamlessly into standard electrical distributions, allowing for streamlined upgrades and replacements.

What are the operational lifetime and cycle expectations for this module?

This relay guarantees a mechanical life of 10 million cycles and an electrical life of 100,000 cycles at rated load, ensuring longevity and reliability in demanding applications.

How does temperature affect the performance of this relay module?

This relay is designed to function within a wide ambient temperature range of -40 to +70 °C, making it suitable for a variety of environments including challenging conditions.

What features support safe operation in sensitive applications?

The module's AC or DC sensitive coils, combined with built-in EMC suppression, enhance operational safety in critical applications, ensuring minimal interference and stable operation.
