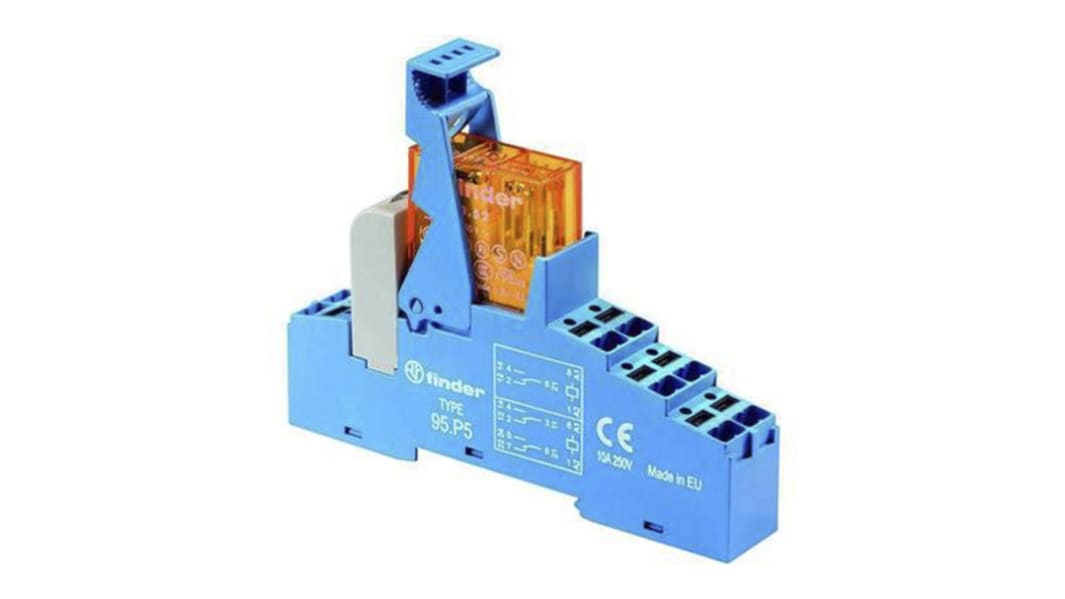

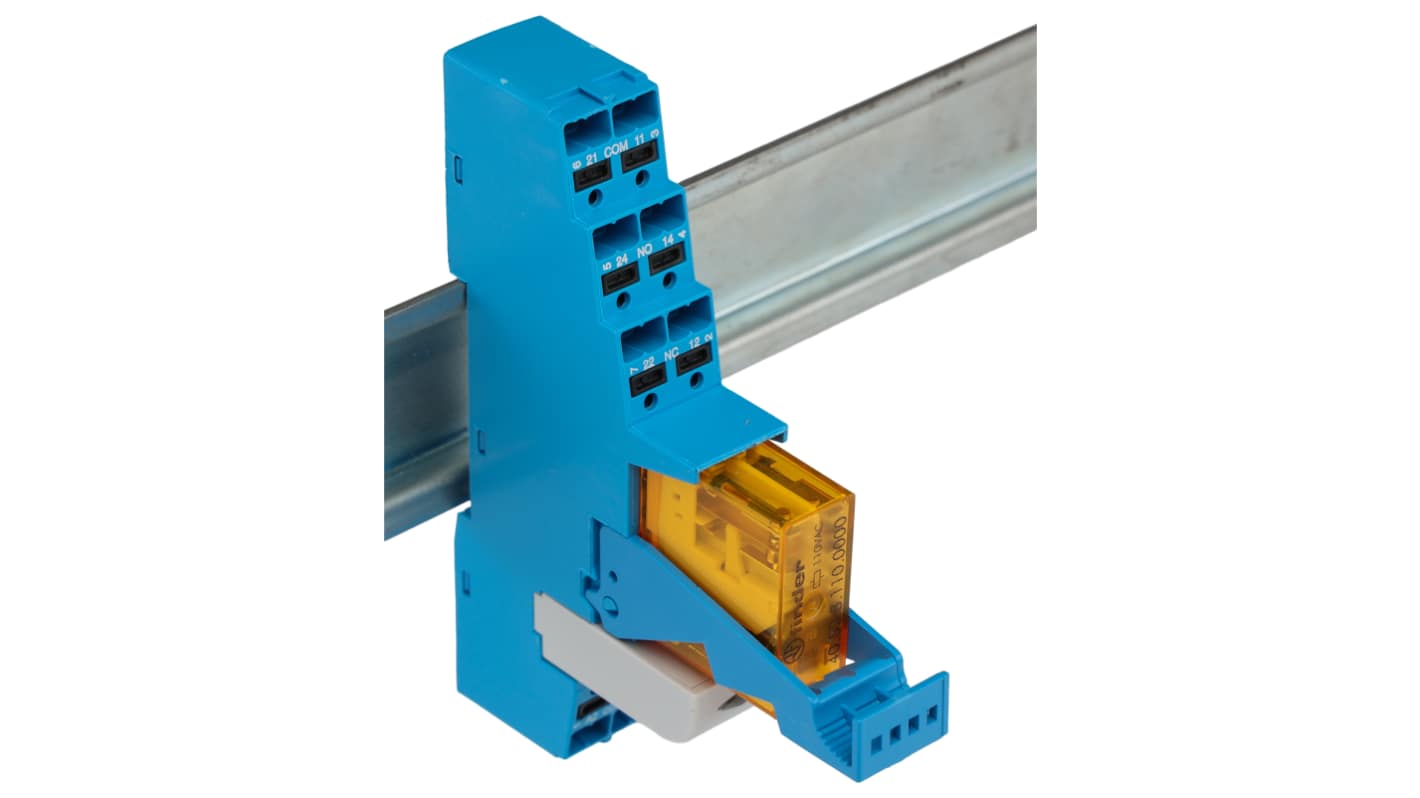

Finder 48 Series Interface Relay Module, DIN Rail Mount, 110V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

RS Stock No.:: 123-2814
Mfr. Part No.:: 48.P5.8.110.0060SPA
Brand:: Finder

Finder 48 Series Interface Relay Module, DIN Rail Mount, 110V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

Subtotal (1 unit)*

£22.72

(exc. VAT)

£27.26

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

37 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£22.72

*price indicative

Sponsored

Finder Relay Sockets

Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.

Explore Finder Relays Sockets

RS Stock No.:: 123-2814
Mfr. Part No.:: 48.P5.8.110.0060SPA
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	110V ac
	Contact Configuration	DPDT-2C/0
	Mounting Type	DIN Rail
	Series	48 Series
	Number of Poles	2
	Load Current Rating	8A
	Load Voltage Rating	250/400V ac
	Minimum Input Voltage	250V ac
	Maximum Input Voltage	400V ac
	Switching Voltage	250 V ac → 400V ac
	Terminal Type	Push In
	Depth	75.3mm
	Height	95.5mm
	Length	15.8mm
	Contact Material	Silver Alloy
	Input Current	10.1mA
	Relay Switching Classification	General Purpose Relay
	Relay Type	Interface Relay
	Accessory Type	Interface Relay
	Standards Met	CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE
	Turn On Time	(dc) 12 ms, (ac) 7ms
	Special Features	AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Operating Temperature Range	-40 → +70°C
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Dimensions	15.8 x 75.3 x 95.5mm
	Life	100000 Cycles
	Turn Off Time	(dc) 12 ms, (ac) 4ms

	Select all
	Brand Finder
	Coil Voltage 110V ac
	Contact Configuration DPDT-2C/0
	Mounting Type DIN Rail
	Series 48 Series
	Number of Poles 2
	Load Current Rating 8A
	Load Voltage Rating 250/400V ac
	Minimum Input Voltage 250V ac
	Maximum Input Voltage 400V ac
	Switching Voltage 250 V ac → 400V ac
	Terminal Type Push In
	Depth 75.3mm
	Height 95.5mm
	Length 15.8mm
	Contact Material Silver Alloy
	Input Current 10.1mA
	Relay Switching Classification General Purpose Relay
	Relay Type Interface Relay
	Accessory Type Interface Relay
	Standards Met CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE
	Turn On Time (dc) 12 ms, (ac) 7ms
	Special Features AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
	Operating Temperature Range -40 → +70°C
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Dimensions 15.8 x 75.3 x 95.5mm
	Life 100000 Cycles
	Turn Off Time (dc) 12 ms, (ac) 4ms

COO (Country of Origin):: IT

Finder 48 Series Interface Relay Module, 110V AC Coil Voltage, 8A Load Current Rating - 48.P5.8.110.0060SPA

This interface relay module is designed for efficient control in various automation applications. With a compact size of 15.8 x 75.3 x 95.5mm, this device operates at a coil voltage of 110V AC, making it suitable for general-purpose relay needs. It features DPDT contact configuration, allowing for flexible electrical connectivity and integration into existing systems.

Features & Benefits

• Supports up to 8A load current for reliable operations
• Designed for DIN rail mounting for easy installation
• Equipped with push-in terminals to simplify wiring
• Operates within -40°C to +70°C temperature range for versatility
• Offers both AC and DC sensitive coil options
• Features an integrated supply status indication for user awareness

Applications

• Used in medical and dental equipment for precision control
• Ideal for building automation systems requiring reliable switching
• Utilised in control panels for lifts and elevators
• Employed in hoists and cranes for safe operation management
• Serves in electrical distribution boards for effective energy management

What is the importance of the push-in terminals in this relay module?

The push-in terminals facilitate a quicker connection process, enhancing ease of installation and maintenance. This design allows for secure and stable connections without the need for special tools, significantly reducing installation time.

How does the temperature range enhance its functionality?

Operating within a broad temperature range of -40°C to +70°C ensures that this relay module can function effectively in diverse environments. This adaptability makes it ideal for applications in harsh conditions, such as industrial sites or outdoor installations.

What aspects of the design contribute to its reliability in automation?

The robust construction and high-quality silver alloy contact material ensure a long operational life of up to 100,000 cycles. Coupled with EMC coil suppression, this design minimises electrical noise, maintaining seamless operation in sensitive automation applications.
