Finder 48 Series Interface Relay, DIN Rail, 24 V dc Coil, DPDT-2 CO, 22.2 mA

RS Stock No.:: 123-2823
Distrelec Article No.:: 301-62-759
Mfr. Part No.:: 48.P8.7.024.0050SPA
Brand:: Finder

Finder 48 Series Interface Relay, DIN Rail, 24 V dc Coil, DPDT-2 CO, 22.2 mA

Subtotal (1 unit)*

£20.28

(exc. VAT)

£24.34

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

42 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location
Plus 50 unit(s) shipping from 13 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£20.28

*price indicative

Finder Relay Sockets

Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.

Explore Finder Relays Sockets

RS Stock No.:: 123-2823
Distrelec Article No.:: 301-62-759
Mfr. Part No.:: 48.P8.7.024.0050SPA
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24 V dc
	Product Type	Interface Relay
	Contact Configuration	DPDT-2 CO
	Mount Type	DIN Rail
	Series	48
	Terminal Type	Push-in
	Switching Current	10 A
	Switching DC Voltage	30 V dc
	Coil Current	22.2 mA
	Switching AC Voltage	400 V ac
	Minimum Operating Temperature	-40°C
	Contact Material	Silver Alloy
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS
	Length	15.8mm
	Width	75.3 mm
	Height	95.5mm

	Select all
	Brand Finder
	Coil Voltage 24 V dc
	Product Type Interface Relay
	Contact Configuration DPDT-2 CO
	Mount Type DIN Rail
	Series 48
	Terminal Type Push-in
	Switching Current 10 A
	Switching DC Voltage 30 V dc
	Coil Current 22.2 mA
	Switching AC Voltage 400 V ac
	Minimum Operating Temperature -40°C
	Contact Material Silver Alloy
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS
	Length 15.8mm
	Width 75.3 mm
	Height 95.5mm

COO (Country of Origin):: IT

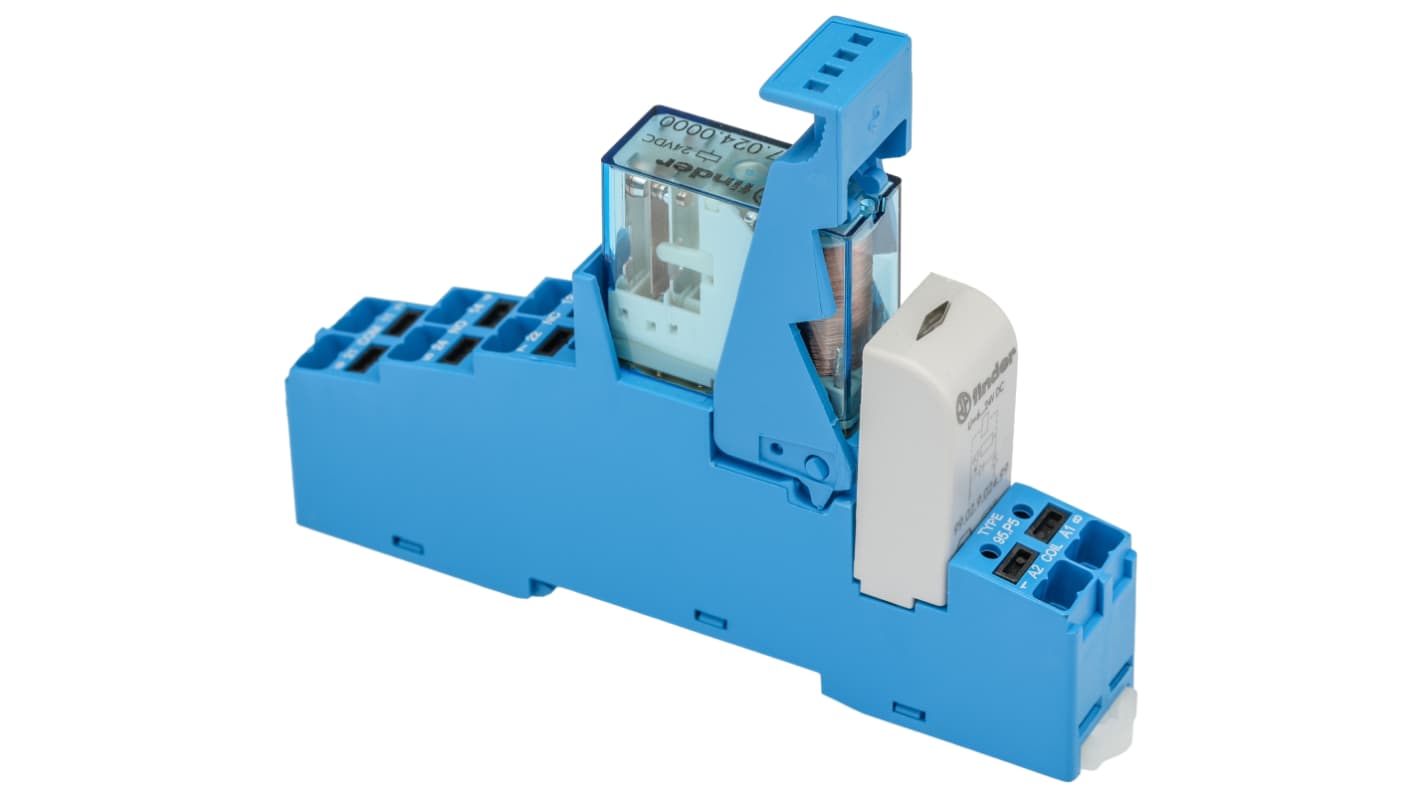

Finder 48 series Interface Relay, 24V DC Coil Voltage, DPDT-2C/0 Contact Configuration - 48.P8.7.024.0050SPA

This interface relay is an essential component in automation and electronic systems. Designed with a compact design, this unit measures 15.8mm in width, offering convenient DIN rail mounting. It operates effectively with a coil voltage of 24V DC and a load current rating of 10A, making it suitable for diverse applications in electrical engineering.

Features & Benefits

• DPDT relay configuration provides versatile switching options

• Durable silver alloy contacts ensure a longer lifespan

• AC and DC sensitive coils accommodate various circuit requirements

• Integrated supply status indication for operational visibility

• Capable of switching voltages up to 400V AC for enhanced flexibility

• High-temperature operation up to +70°C is ideal for demanding environments

Applications

• Utilised in industrial automation control systems

• Suitable for interfacing with programmable logic controllers (PLC)

• Employed in building management systems for efficient operation

• Applied in motor control circuits for reliable functionality

What are the key technical specifications of this relay?

It features a coil voltage of 24V DC and supports a maximum switching voltage of 400V AC. The load current rating stands at 10A, ensuring it meets various electrical demands.

How does the relay handle high-temperature environments?

This relay has an operating temperature range from -40°C to +70°C, making it suitable for high-temperature applications without compromising performance.

What distinguishes this relay from standard relays?

The incorporation of silver alloy contacts enhances durability and efficiency, while the relay’s sensitivity to both AC and DC allows for versatile application in different electronic applications.
