TE Connectivity CII MDR Series Electromechanical Interface Relay, Panel, 440V ac Coil, SPDT, 0.16A
- RS Stock No.:
- 480-191
- Distrelec Article No.:
- 303-52-858
- Mfr. Part No.:
- 1-1393139-9
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£6,484.58
(exc. VAT)
£7,781.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6,484.58 |
*price indicative
- RS Stock No.:
- 480-191
- Distrelec Article No.:
- 303-52-858
- Mfr. Part No.:
- 1-1393139-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 440V ac | |
| Product Type | Electromechanical Interface Relay | |
| Contact Configuration | SPDT | |
| Mount Type | Panel | |
| Series | CII MDR | |
| Coil Current | 0.16A | |
| Minimum Operating Temperature | 0°C | |
| Switching AC Voltage | 440V ac | |
| Coil Type | Non-Latching | |
| Maximum Operating Temperature | 65°C | |
| Contact Material | Silver Cadmium Oxide | |
| Width | 106.43mm | |
| Standards/Approvals | EU RoHS/ELV, CSA LR15734, CHINA RoHS, REACH, UL E22575 | |
| Height | 127mm | |
| Length | 106.43mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 440V ac | ||
Product Type Electromechanical Interface Relay | ||
Contact Configuration SPDT | ||
Mount Type Panel | ||
Series CII MDR | ||
Coil Current 0.16A | ||
Minimum Operating Temperature 0°C | ||
Switching AC Voltage 440V ac | ||
Coil Type Non-Latching | ||
Maximum Operating Temperature 65°C | ||
Contact Material Silver Cadmium Oxide | ||
Width 106.43mm | ||
Standards/Approvals EU RoHS/ELV, CSA LR15734, CHINA RoHS, REACH, UL E22575 | ||
Height 127mm | ||
Length 106.43mm | ||
- COO (Country of Origin):
- US

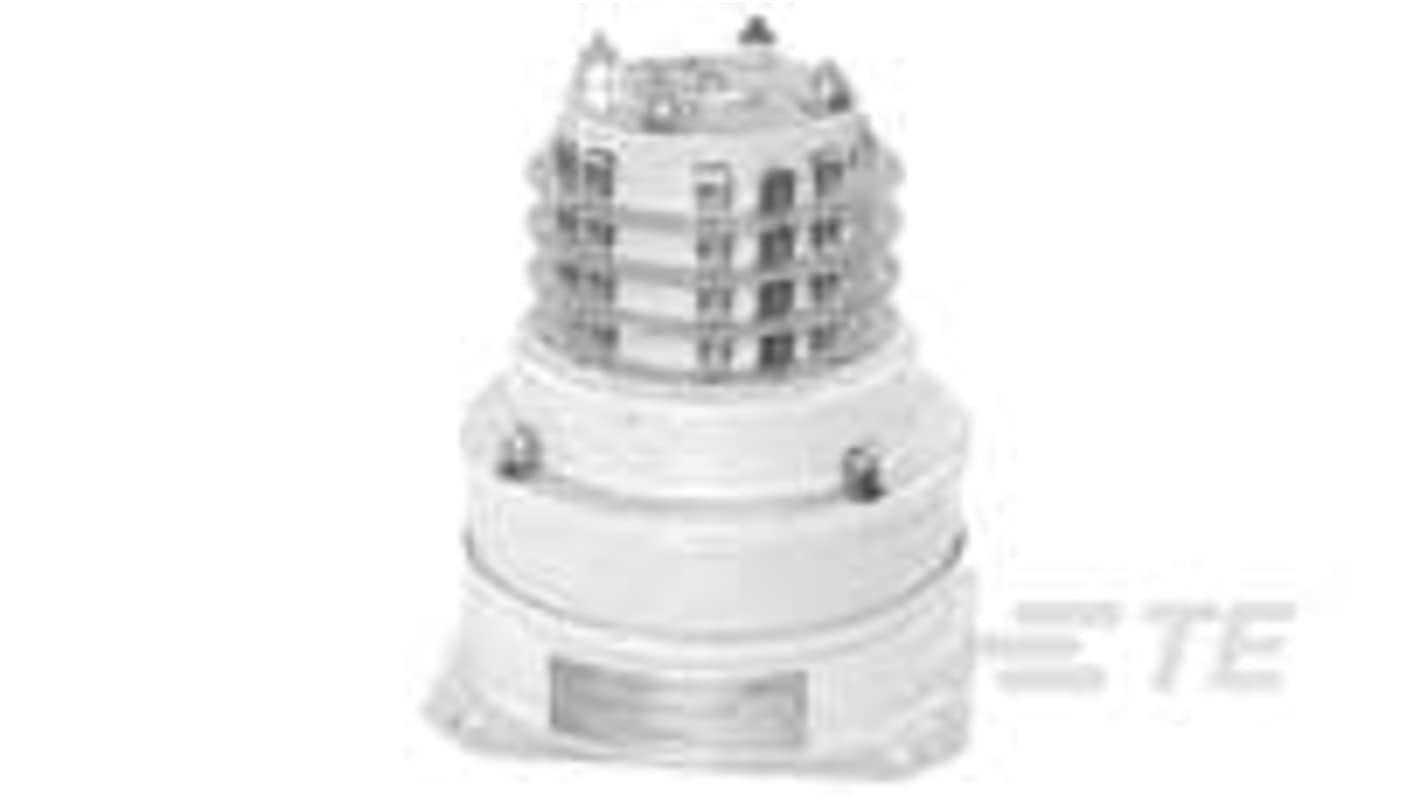

The TE Connectivity rotary relay offers exceptional reliability for various AC applications, combining advanced engineering with robust functionality. Designed with a non-latching coil magnetic system, it provides efficient operation at a contact rating of 10 A and features a unique 16 Form C arrangement. Operating effectively within temperatures ranging from 0 to 65 °C, this relay ensures steadfast performance across diverse environments. The product integrates seamlessly into panel mounting setups, making it an ideal choice for engineers seeking dependable solutions. Its remarkable construction includes silver cadmium oxide contact material, enhancing durability and performance in demanding conditions. The inclusion of comprehensive compliance insights reassures users about its regulatory adherence, ensuring that operational safety standards are met.
Flange type design allows for easy installation
Superior insulation capacity of 1880 Vims maintains operational integrity
Packaging includes both cartridges and boxes for secure transit
Optimal usage conditions for varied ambient temperatures
Electrical characteristics ensure minimal energy loss during operation
Recyclable materials promote environmentally friendly disposal
