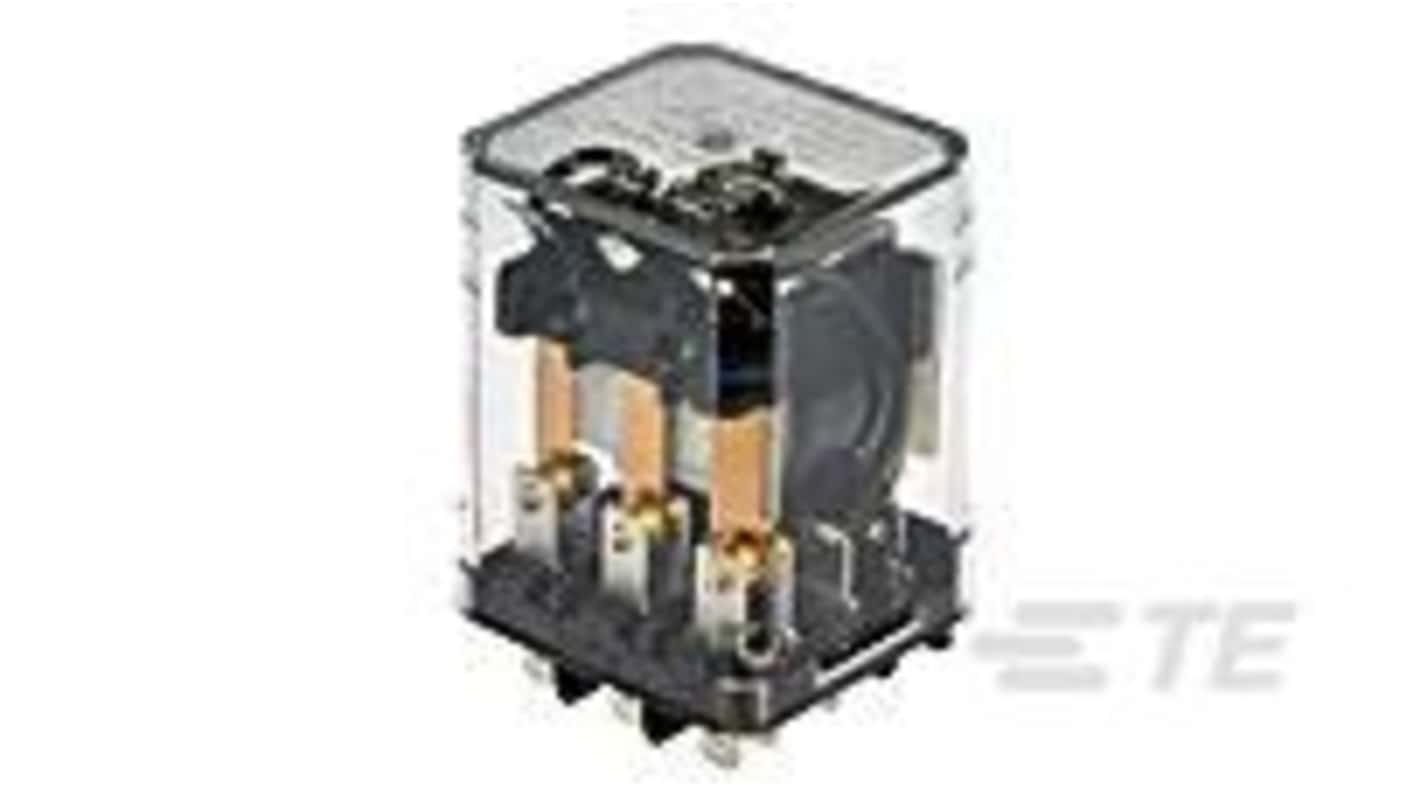

TE Connectivity KUP Series Electromechanical Interface Relay, Panel, 24 V Coil, DPDT
- RS Stock No.:
- 476-697
- Distrelec Article No.:
- 304-47-991
- Mfr. Part No.:
- 5-1393117-8
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 476-697
- Distrelec Article No.:
- 304-47-991
- Mfr. Part No.:
- 5-1393117-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24 V | |
| Coil Resistance | 472Ω | |
| Product Type | Electromechanical Interface Relay | |
| Contact Configuration | DPDT | |
| Mount Type | Panel | |
| Series | KUP | |
| Terminal Type | Quick Connect | |
| Switching Current | 10 A | |
| Minimum Operating Temperature | -45°C | |
| Switching AC Voltage | 240 V ac | |
| Switching DC Voltage | 12 V dc | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Cadmium Oxide | |
| Length | 73.7mm | |
| Width | 38.89 mm | |
| Standards/Approvals | UL | |
| Height | 35.71mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24 V | ||
Coil Resistance 472Ω | ||
Product Type Electromechanical Interface Relay | ||
Contact Configuration DPDT | ||
Mount Type Panel | ||
Series KUP | ||
Terminal Type Quick Connect | ||
Switching Current 10 A | ||
Minimum Operating Temperature -45°C | ||
Switching AC Voltage 240 V ac | ||
Switching DC Voltage 12 V dc | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Cadmium Oxide | ||
Length 73.7mm | ||
Width 38.89 mm | ||
Standards/Approvals UL | ||
Height 35.71mm | ||
- COO (Country of Origin):
- CN
The TE Connectivity general purpose power relay offers exceptional reliability and versatility for various DC applications. Engineered with a monostable coil magnetic system, this DPDT relay is designed to manage high currents while ensuring optimal performance. Its robust housing guarantees durability in demanding environments, making it an ideal choice for industrial and commercial use. With a rated contact current of 10 A, this relay delivers dependable switching capabilities, even under challenging conditions. Compatible with a range of setups, it ensures seamless integration into existing systems, providing engineers and designers with confidence in their circuit designs. Moreover, its UL coil insulation class B ensures safe operation, enhancing its appeal in critical applications.
Monostable coil magnetic system optimises performance in DC applications
Dust protected enclosure enhances reliability in harsh environments
Quick connect terminals simplify installation and maintenance processes
Lightweight design supports easy integration in various applications
Complies with EU RoHS and ELV directives for environmentally friendly usage
Flexible operating temperature range accommodates diverse operational settings
Low halogen content adheres to modern safety standards
Supports panel and socket mounting for versatile installation options
