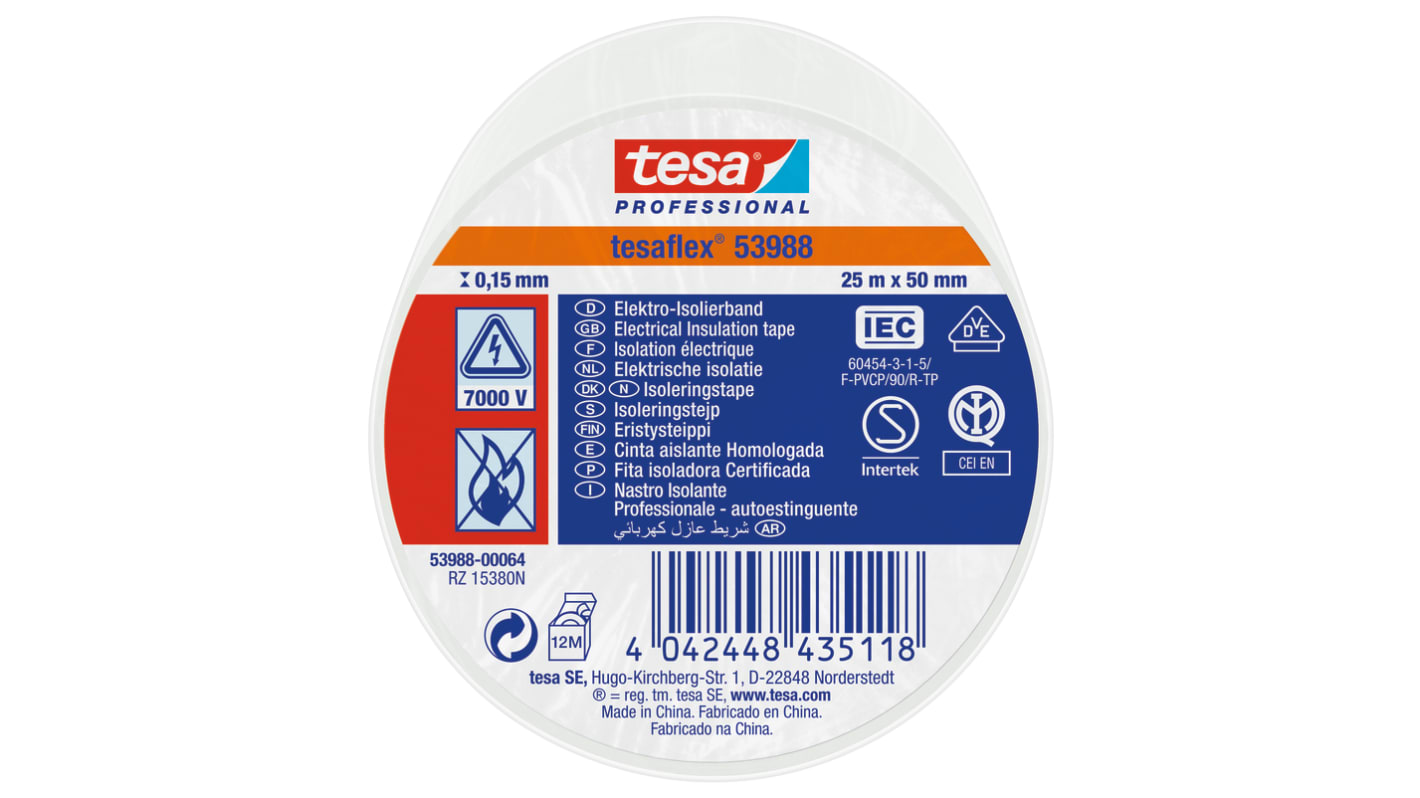

Tesa 53988 White Polyvinyl Chloride Electrical Insulation Tape, 50mm x 25 m
- RS Stock No.:
- 277-5129
- Distrelec Article No.:
- 301-50-213
- Mfr. Part No.:
- 53988-00064-00
- Brand:
- Tesa
Subtotal (1 unit)*
£5.64
(exc. VAT)
£6.77
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 54 left, ready to ship
- Plus 288 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.64 |
*price indicative
- RS Stock No.:
- 277-5129
- Distrelec Article No.:
- 301-50-213
- Mfr. Part No.:
- 53988-00064-00
- Brand:
- Tesa
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tesa | |
| Breakdown Voltage | 7kV | |
| Colour | White | |
| Product Type | Electrical Insulation Tape | |
| Width | 50mm | |
| Length | 25m | |
| Backing Material | Polyvinyl Chloride | |
| Thickness | 150μm | |
| Maximum Operating Temperature | 90°C | |
| Trade Name | 53988 | |
| Adhesive Material | Natural Rubber | |
| Adhesion Strength | 2.5N/cm | |
| Minimum Operating Temperature | 25°C | |
| Standards/Approvals | IEC 60454-3-1, IMQ, SEMKO, REACh, RoHS 2.0, VDE | |
| Tensile Strength | 25N/cm | |
| Select all | ||
|---|---|---|
Brand Tesa | ||
Breakdown Voltage 7kV | ||
Colour White | ||
Product Type Electrical Insulation Tape | ||
Width 50mm | ||
Length 25m | ||
Backing Material Polyvinyl Chloride | ||
Thickness 150μm | ||
Maximum Operating Temperature 90°C | ||
Trade Name 53988 | ||
Adhesive Material Natural Rubber | ||
Adhesion Strength 2.5N/cm | ||
Minimum Operating Temperature 25°C | ||
Standards/Approvals IEC 60454-3-1, IMQ, SEMKO, REACh, RoHS 2.0, VDE | ||
Tensile Strength 25N/cm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
TESA Electrical Insulation Tape, 150μm Thickness, 50mm Width - 53988-00064-00
This electrical insulation tape is a PVC-backed adhesive product intended for insulating and protecting electrical joints and conductors in low-voltage applications. It performs within environments requiring moderate thermal resistance and is suitable where recognised safety standards and substance restrictions apply. The roll format supports routine maintenance and repair tasks in installations that demand consistent dielectric performance.
Features and Benefits:
• 7000V breakdown voltage provides robust electrical isolation
• 2.5N/cm adhesion strength ensures secure layer bonding
• 25N/cm tensile strength resists elongation under stress
• Natural rubber adhesive offers reliable initial tack
• Rated to 90°C continuous operation for heat resilience
• 2.5N/cm adhesion strength ensures secure layer bonding
• 25N/cm tensile strength resists elongation under stress
• Natural rubber adhesive offers reliable initial tack
• Rated to 90°C continuous operation for heat resilience
Applications
• Suitable for insulating splices and cable terminations
• Ideal for colour-coding circuits in control panels
• Used for general maintenance on wiring harnesses
• Can be used for temporary protective wrapping during installation
• Suitable for field repairs on appliances and equipment
• Ideal for colour-coding circuits in control panels
• Used for general maintenance on wiring harnesses
• Can be used for temporary protective wrapping during installation
• Suitable for field repairs on appliances and equipment
What materials form the tape’s construction?
The backing is polyvinyl chloride and the adhesive is natural rubber.
How long is each roll and what colour is supplied?
Each roll measures 25m in length and is supplied in white.
Which approvals and standards does it meet?
It holds approvals to IEC 60454-3-1 Plus IMQ, SEMKO, REACH, RoHS 2.0 and VDE.
What physical thickness should installers expect?
The tape has a thickness of 150μm for layer consistency.
