MPN

Festo Screw Driven Linear Actuator, 500mm, 6890N, 600mm/s, 8041840

RS Stock No.:: 281-0453
Mfr. Part No.:: ELGA-BS-KF-120-500-0H-10P-ML
Brand:: Festo

Festo Screw Driven Linear Actuator, 500mm, 6890N, 600mm/s, 8041840

Subtotal (1 unit)*

£3,158.58

(exc. VAT)

£3,790.30

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 13 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£3,158.58

*price indicative

RS Stock No.:: 281-0453
Mfr. Part No.:: ELGA-BS-KF-120-500-0H-10P-ML
Brand:: Festo

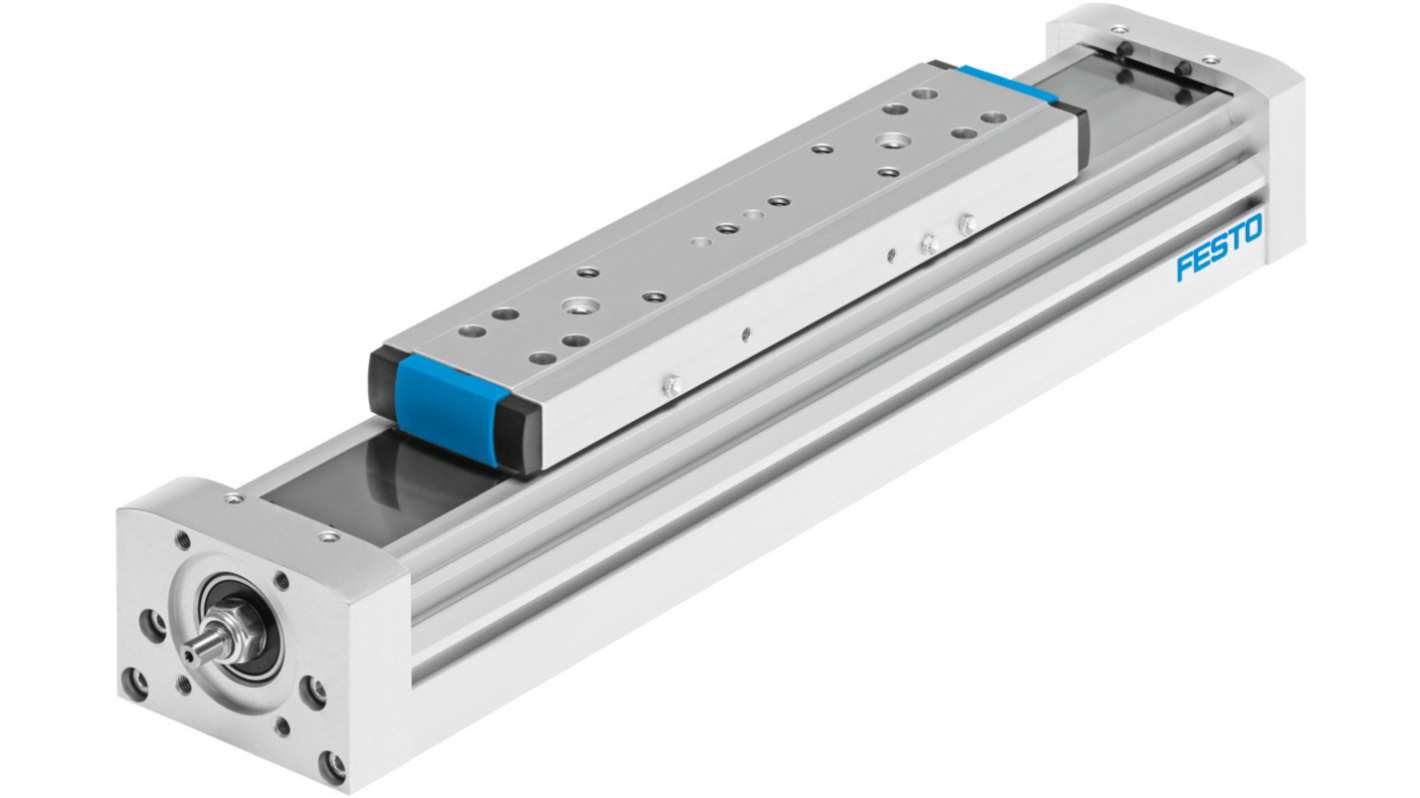

Festo ELGA-BS Series Electric Linear Actuator, 500mm Maximum Stroke Length, 5500N Maximum Lifting Force - ELGA-BS-KF-120-500-0H-10P-ML, Numeric Part Number:8041840

This electric linear actuator is a screw-driven linear actuator designed for high performance in various automation applications. With a maximum stroke length of 500mm, it provides exceptional versatility. The robust construction utilises a recirculating ball bearing guide and is powered by either a servo motor or a stepper motor, ensuring efficient operation.

Features & Benefits

• High load capability with a maximum force of 6890N
• Achieves speeds of up to 600mm/s for rapid movement
• Excellent precision with a repetition accuracy of ±0.02mm
• Versatile mounting positions to suit various setups
• IP40 rating protects against dust and direct contact
• Ideal for a duty cycle of 100%, suitable for continuous use

Applications

• Commonly used in automation systems for machinery movement
• Suitable for precise positioning in robotics
• Employed for assembly tasks requiring reliable linear motion
• Utilised in testing equipment for consistent performance measurements

What maximum acceleration can be achieved with this device?

It can achieve a maximum acceleration of 15 m/s², enabling quick adjustments during operation.

What is the significance of the IP40 rating for this actuator?

The IP40 rating indicates protection against solid objects larger than 1mm, making it suitable for indoor applications where dust exposure is minimal.

Is it possible to operate this actuator at varying temperatures?

Yes, it operates effectively within an ambient temperature range of -10°C to 60°C, providing versatility in environmental conditions.

How does the choice of motor type affect performance?

Using a servo motor enhances precision and responsiveness, while a stepper motor offers better control for specific applications requiring incremental movement.

What materials are used in the construction of this actuator?

It features anodised wrought aluminium alloy for the profile and end cap, along with steel for the guide slide and rail, ensuring durability and compliance with RoHS regulations.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Actuator Type	Screw Driven Linear Actuator
	Maximum Stroke Length	500mm
	Maximum Load	6890N
	Series	ELGA-BS
	Maximum Speed No Load	600mm/s
	Maximum Force Lifting	5500N
	Motor Technology	Servo Motor, Stepper Motor
	Duty Cycle	100%
	IP Rating	IP40
	Model Number	8041840

	Select all
	Brand Festo
	Actuator Type Screw Driven Linear Actuator
	Maximum Stroke Length 500mm
	Maximum Load 6890N
	Series ELGA-BS
	Maximum Speed No Load 600mm/s
	Maximum Force Lifting 5500N
	Motor Technology Servo Motor, Stepper Motor
	Duty Cycle 100%
	IP Rating IP40
	Model Number 8041840
