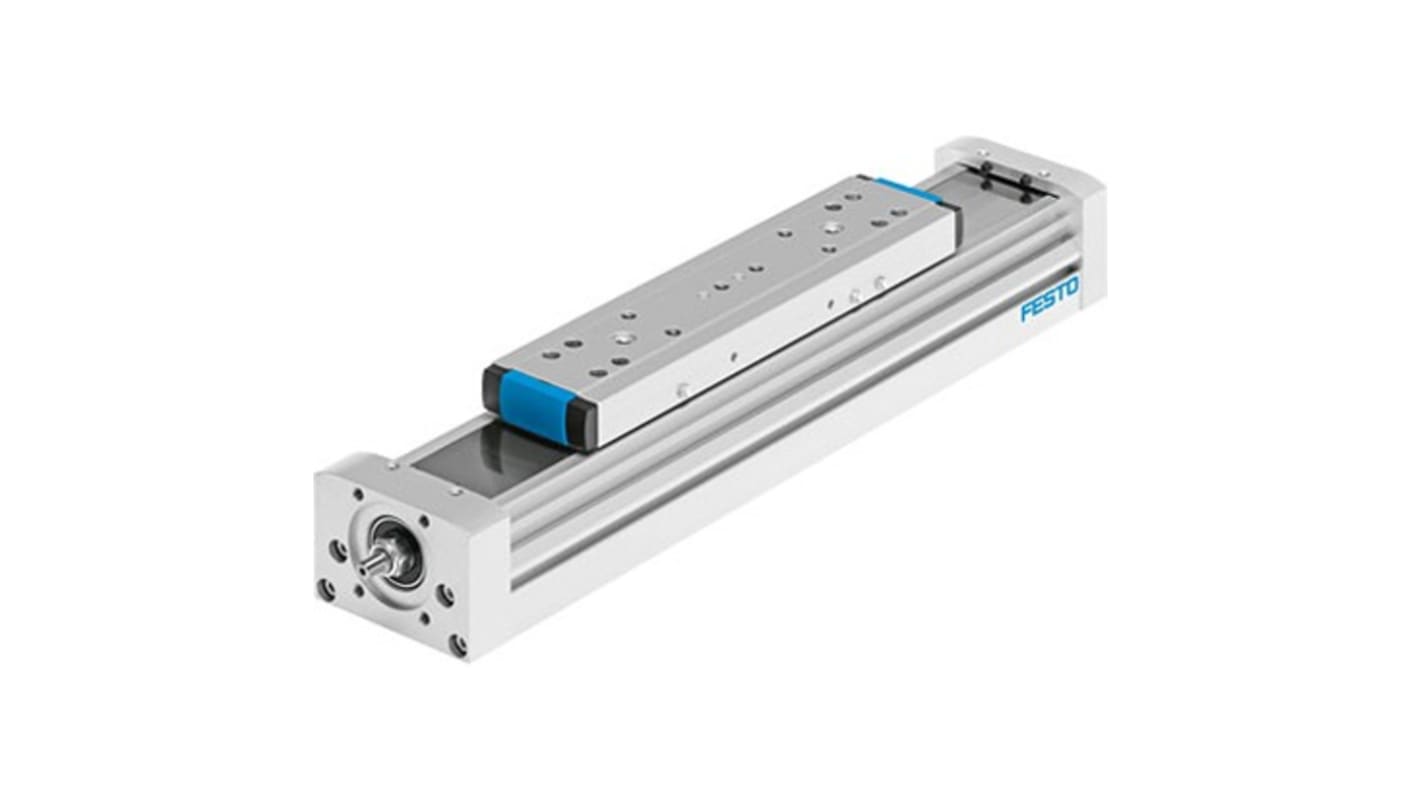

Festo ELGA-BS, 8041837 Electrical Linear Actuator, 600mm/s, 200 mm
- RS Stock No.:
- 281-0446
- Mfr. Part No.:
- ELGA-BS-KF-120-200-0H-10P-ML
- Brand:
- Festo
Subtotal (1 unit)*
£2,770.15
(exc. VAT)
£3,324.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,770.15 |
*price indicative
- RS Stock No.:
- 281-0446
- Mfr. Part No.:
- ELGA-BS-KF-120-200-0H-10P-ML
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 200mm | |
| Maximum Speed | 600mm/s | |
| Series | ELGA-BS | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Guide Type | Ball Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 200mm | ||
Maximum Speed 600mm/s | ||
Series ELGA-BS | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Guide Type Ball Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo ELGA-BS Series Electrical Linear Actuator, 200mm Stroke Length, 100% Duty Cycle - ELGA-BS-KF-120-200-0H-10P-ML, Numeric Part Number:8041837
This electrical linear actuator provides precise linear motion for industrial automation tasks, combining electrical drive options with a Compact guided carriage. It is designed for continuous operation in controlled environments where precise positioning and repeatable travel are required, with construction suitable for integration into machine assemblies and handling systems.
Features and Benefits:
• 100% duty cycle enables continuous operation without rest
• Ball-bearing guide reduces lateral play for accurate motion
• 200mm stroke delivers extended linear travel for positioning
• 600 mm/s maximum speed supports high-throughput cycles
• Compatible with servo or stepper motors for flexible control
• Rated to withstand ambient temperatures up to 60°C
• Ball-bearing guide reduces lateral play for accurate motion
• 200mm stroke delivers extended linear travel for positioning
• 600 mm/s maximum speed supports high-throughput cycles
• Compatible with servo or stepper motors for flexible control
• Rated to withstand ambient temperatures up to 60°C
Applications
• Suitable for pick-and-place conveyors requiring Rapid travel
• Ideal for assembly stations demanding continuous-duty actuation
• Used with motion controllers in gantry or XYZ rigs
• Can be used for test rigs needing repeatable linear displacement
• Suitable for electronic inspection systems where precision is required
• Ideal for assembly stations demanding continuous-duty actuation
• Used with motion controllers in gantry or XYZ rigs
• Can be used for test rigs needing repeatable linear displacement
• Suitable for electronic inspection systems where precision is required
What ingress protection does it offer for factory use?
The unit carries an IP40 rating, indicating protection against solid objects larger than 1mm but not against water ingress, so it should be placed in dry, enclosed machine areas.
Which motor types can be fitted to achieve closed-loop control?
It accepts either servo motors for closed-loop position control or stepper motors for open- or closed-loop schemes, permitting choice based on control architecture.
How does guidance affect long-term accuracy?
The ball-bearing guide reduces friction and side play, lowering wear and maintaining repeatable travel over extended service life in typical industrial duty cycles.
Are there regulatory limitations influencing material selection?
The design conforms to RoHS requirements, restricting the use of certain hazardous substances in constituent materials.
