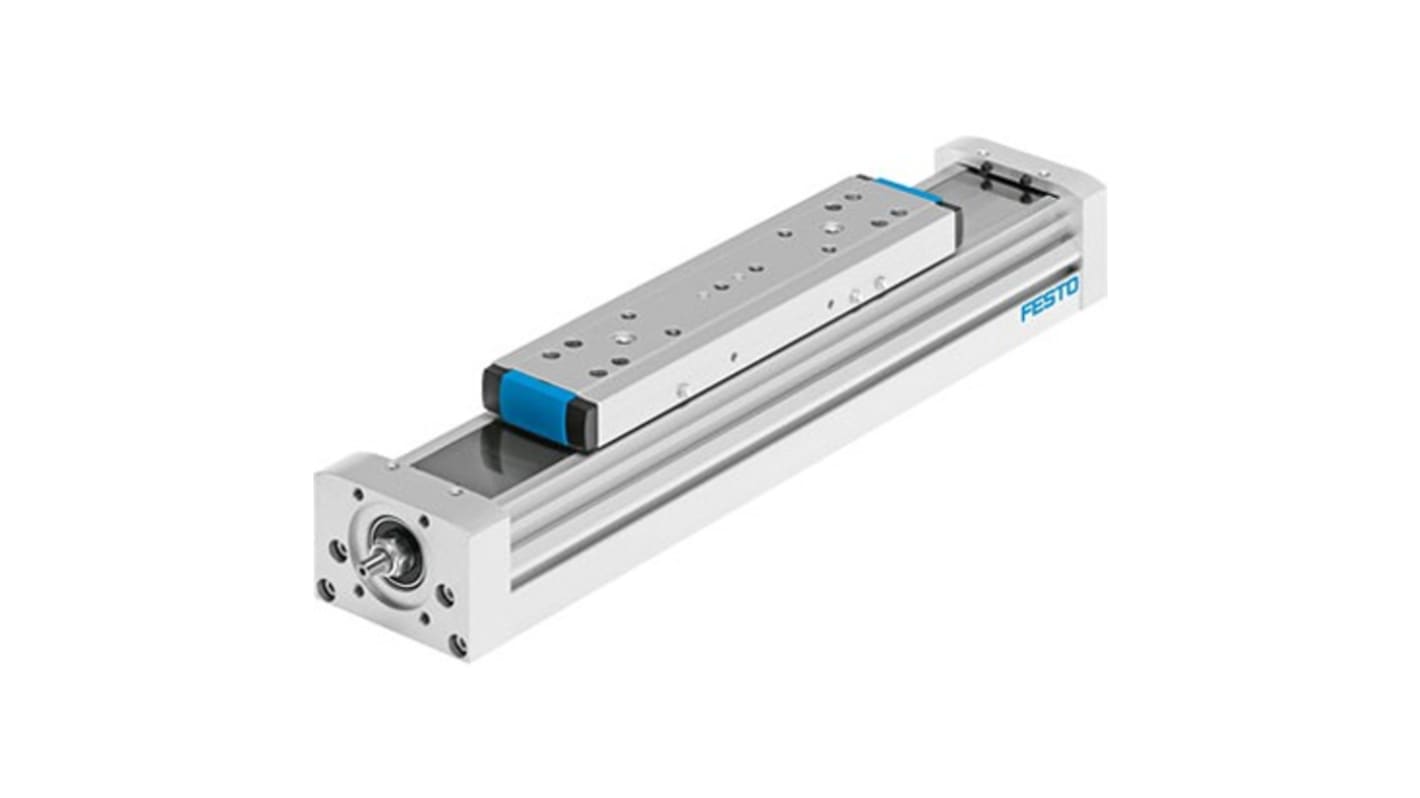

Festo Screw Driven Linear Actuator, 800mm, 600mm/s, 8041842
- RS Stock No.:
- 281-0458
- Mfr. Part No.:
- ELGA-BS-KF-120-800-0H-10P-ML
- Brand:
- Festo
Subtotal (1 unit)*
£3,517.89
(exc. VAT)
£4,221.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,517.89 |
*price indicative
- RS Stock No.:
- 281-0458
- Mfr. Part No.:
- ELGA-BS-KF-120-800-0H-10P-ML
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Screw Driven Linear Actuator | |
Maximum Stroke Length | 800mm | |
Series | ELGA-BS | |
Maximum Speed No Load | 600mm/s | |
Motor Technology | Servo Motor, Stepper Motor | |
Duty Cycle | 100% | |
IP Rating | IP40 | |
Model Number | 8041842 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Screw Driven Linear Actuator | ||
Maximum Stroke Length 800mm | ||
Series ELGA-BS | ||
Maximum Speed No Load 600mm/s | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 8041842 | ||
- COO (Country of Origin):
- DE
Festo ELGA-BS Series Electric Linear Actuator, IP40, 1 Duty Cycle - ELGA-BS-KF-120-800-0H-10P-ML, Numeric Part Number:8041842
This electric linear actuator is designed for precision and efficiency in motion control applications. With a maximum stroke length of 800mm and speeds reaching 600mm/s without a load, it is suitable for various automation demands across multiple industries. The robust industrial design promotes durability and consistent performance, making it a suitable choice for professionals in automation, electronics, and mechanical sectors.
Features & Benefits
• Maximum force of 6890N for enhanced load handling capabilities
• Recirculating ball bearing guide ensures smooth and precise motion
• Compatible with stepper and servo motors for versatile applications
• 100% duty cycle allows for continuous operation without overheating
• Incremental measuring system provides accurate position feedback
• Wide operating temperature range enables functionality in diverse environments
• Recirculating ball bearing guide ensures smooth and precise motion
• Compatible with stepper and servo motors for versatile applications
• 100% duty cycle allows for continuous operation without overheating
• Incremental measuring system provides accurate position feedback
• Wide operating temperature range enables functionality in diverse environments
Applications
• Precise positioning in robotic systems
• Material handling in automated assembly lines
• Suitable for CNC machines requiring consistent linear motion
• High-speed actuation in packaging operations
• Testing equipment where accuracy is essential
• Material handling in automated assembly lines
• Suitable for CNC machines requiring consistent linear motion
• High-speed actuation in packaging operations
• Testing equipment where accuracy is essential
How does the actuator handle different loads?
It supports loads up to 6890N, ensuring consistent performance across a range of applications.
What types of motors can be used with it?
It is compatible with both stepper and servo motors, allowing flexible integration into existing systems.
Is the actuator suitable for outdoor use?
It operates effectively within an ambient temperature range of -10°C to 60°C, although protection against environmental factors is recommended.
How is the installation process?
Installation is straightforward, with various mounting options available to suit your specific requirements.
What is the expected lifespan under regular operation?
The actuator features a reference service life of approximately 5000km, depending on usage conditions and load management.
