Festo Rod Linear Actuator, 150mm, 8172142
- RS Stock No.:
- 651-848
- Mfr. Part No.:
- DFPC-160-150-D-V4EX4-36E-31S-M16P-W2
- Brand:
- Festo
Subtotal (1 unit)*
£689.34
(exc. VAT)
£827.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £689.34 |
*price indicative
- RS Stock No.:
- 651-848
- Mfr. Part No.:
- DFPC-160-150-D-V4EX4-36E-31S-M16P-W2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Rod Linear Actuator | |
Maximum Stroke Length | 150mm | |
Series | DFPC | |
Model Number | 8172142 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Rod Linear Actuator | ||
Maximum Stroke Length 150mm | ||
Series DFPC | ||
Model Number 8172142 | ||
- COO (Country of Origin):
- UA

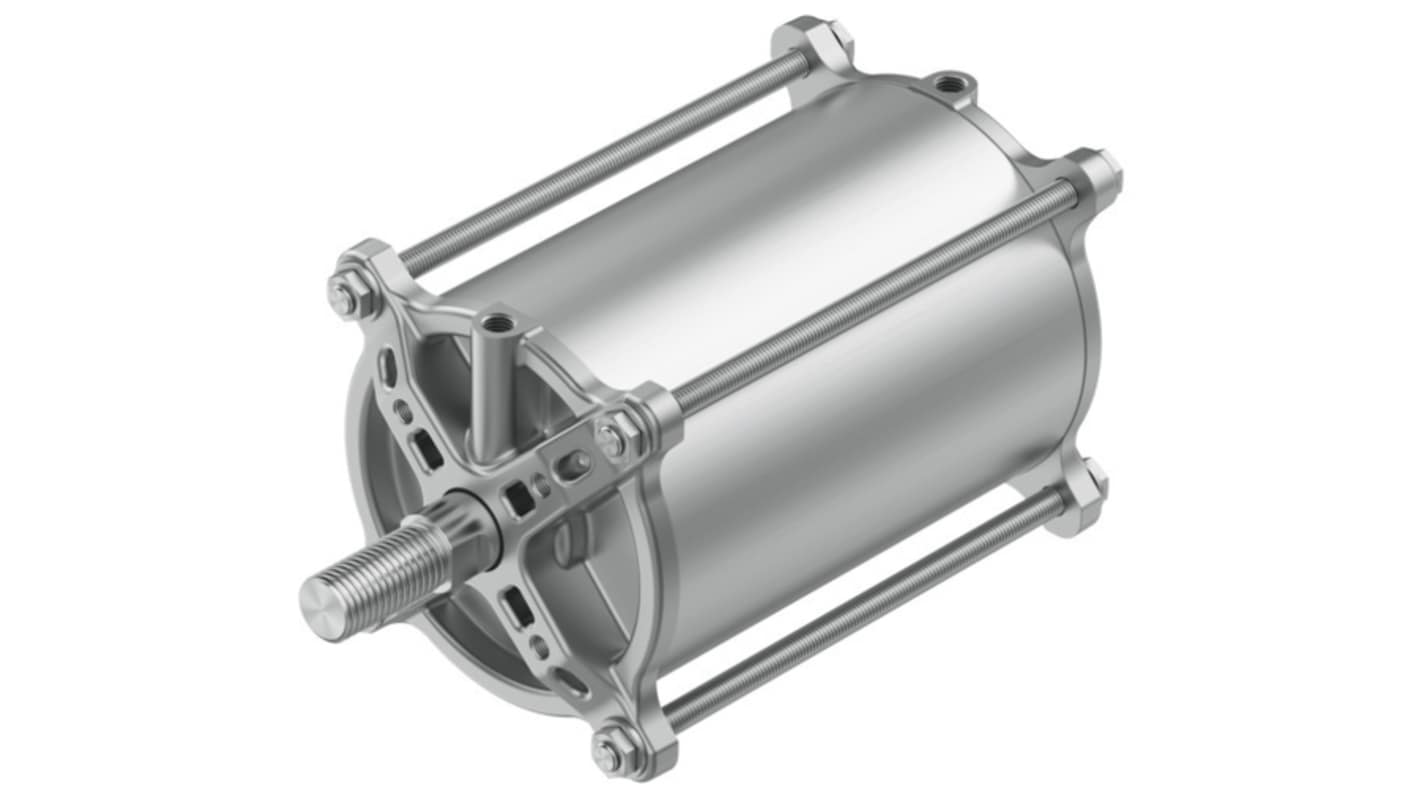

The Festo Linear Drive is designed for robust performance in diverse industrial applications. Engineered with a double-acting piston mechanism, this actuator offers reliable motion control with an adjustable stroke length of 150 mm and a piston diameter of 160 mm. Its unique cushioning system ensures smooth operation, enhancing longevity and reducing wear. The actuator is equipped to withstand various operational pressures, ranging from 0.2 MPa to 0.8 MPa, making it suitable for different tasks. Additionally, the integrated position detection via proximity switch enables precise positioning, essential for automated processes, while the compatibility with standard connection types simplifies installation. The product's versatility is further underscored by its array of explosion protection certifications, catering to safety in hazardous environments.
Double acting piston design for effective motion control
Adjustable stroke length of 150 mm for diverse applications
Cushioning rings/plates provide smooth operation and reduce wear
Integrated proximity switch for precise position detection
Operating pressure range of 0.2 MPa to 0.8 MPa enhances versatility
Compatibility with ISO 5210 standard fitting for easy installation
Explosion protection certifications ensure safe operation in hazardous areas
Robust aluminium and stainless steel materials guarantee durability
Vibration and shock resistance for reliable performance in challenging environments
Adjustable stroke length of 150 mm for diverse applications
Cushioning rings/plates provide smooth operation and reduce wear
Integrated proximity switch for precise position detection
Operating pressure range of 0.2 MPa to 0.8 MPa enhances versatility
Compatibility with ISO 5210 standard fitting for easy installation
Explosion protection certifications ensure safe operation in hazardous areas
Robust aluminium and stainless steel materials guarantee durability
Vibration and shock resistance for reliable performance in challenging environments
