Festo 125 mm, 8172150
- RS Stock No.:
- 651-661
- Mfr. Part No.:
- DFPC-125-125-D-V4EX4-40E-17S-M16P-W2
- Brand:
- Festo
Subtotal (1 unit)*
£413.39
(exc. VAT)
£496.07
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £413.39 |
*price indicative
- RS Stock No.:
- 651-661
- Mfr. Part No.:
- DFPC-125-125-D-V4EX4-40E-17S-M16P-W2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Miniature Electric Actuator - Rod | |
| Stroke Length | 125mm | |
| Series | DFPC | |
| Maximum Force | 7363N | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread | M16 | |
| Maximum Operating Temperature | 80°C | |
| Weight | 4310g | |
| Standards/Approvals | ISO 5210, RoHS, UKCA, ATEX (Zones 1,2,21,22), CE | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Miniature Electric Actuator - Rod | ||
Stroke Length 125mm | ||
Series DFPC | ||
Maximum Force 7363N | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread M16 | ||
Maximum Operating Temperature 80°C | ||
Weight 4310g | ||
Standards/Approvals ISO 5210, RoHS, UKCA, ATEX (Zones 1,2,21,22), CE | ||
- COO (Country of Origin):
- UA

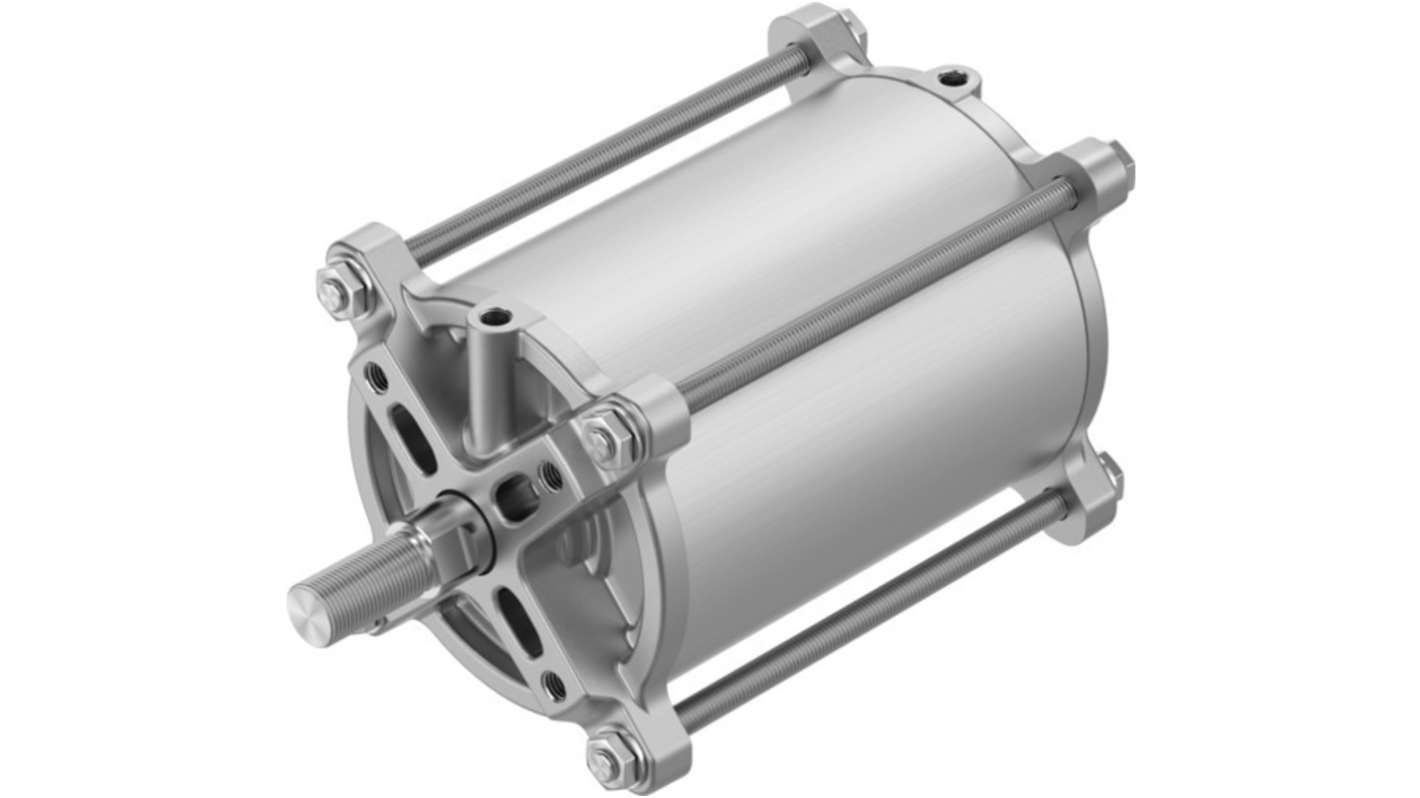

The Festo Linear Drive is engineered for precise actuation in various applications, featuring a double-acting design that ensures reliable performance. With an impressive stroke length of 125 mm and a piston diameter of 125 mm, this product provides exceptional control and force capabilities. The actuator benefits from customizable configurations such as an extended piston rod and various thread options, allowing it to adapt seamlessly to specific requirements. Certificated for use in explosive atmospheres, it meets both ATEX and UKEX standards, making it suitable for industries where safety is paramount. Designed to operate efficiently in a broad temperature range, the actuator supports lubricated operation, ensuring longevity and minimal maintenance in demanding environments.
Double acting mode facilitates efficient operation in varied applications
Versatile mounting options include flange and spacer bolt configurations
Integrated cushioning reduces impact energy enhancing durability
Position detection capability via proximity switch for accurate feedback
Robust materials ensure longevity with a piston rod made of high-alloy stainless steel
Compliant with RoHS emphasizing safety and environmental responsibility
Handles operating pressures from 0.2 MPa to 0.8 MPa providing flexibility in usage
Vibration and shock resistance tested for reliability in demanding conditions
Air consumption is optimised for efficiency during operation minimising waste
