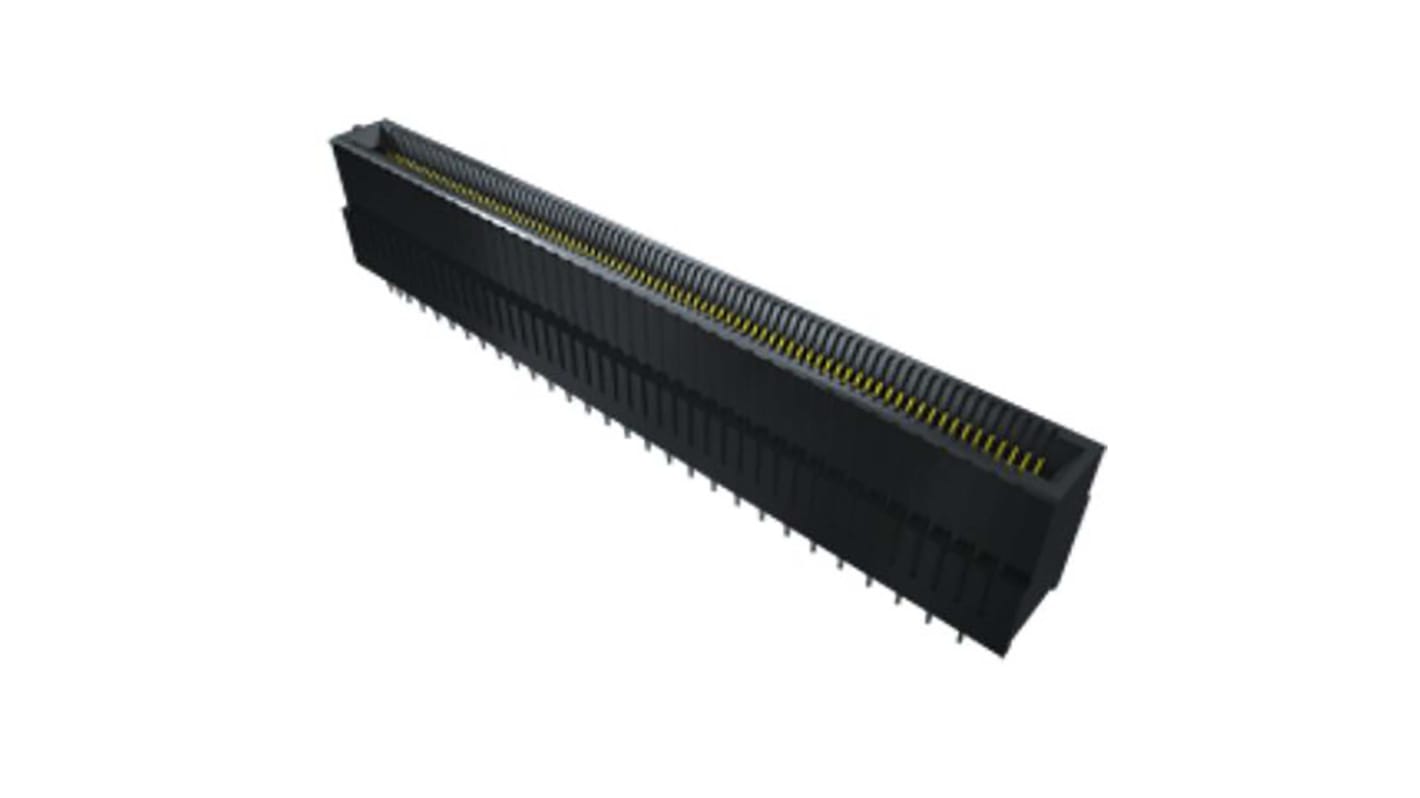

Samtec MTCA Series Straight Edge Connector Female, Surface Mount, 170-Contacts, 0.75 mm Pitch, 2 Row, Solder
- RS Stock No.:
- 208-8936
- Mfr. Part No.:
- MTCA-085-02-S-DV-SMT-K-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 100 units)*
£921.60
(exc. VAT)
£1,105.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £9.216 | £921.60 |
| 500 - 900 | £8.894 | £889.40 |
| 1000 + | £8.451 | £845.10 |
*price indicative
- RS Stock No.:
- 208-8936
- Mfr. Part No.:
- MTCA-085-02-S-DV-SMT-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Edge Connector | |
| Orientation | Straight | |
| Current | 900mA | |
| Number of Contacts | 170 | |
| Number of Rows | 2 | |
| Connector Gender | Female | |
| Pitch | 0.75mm | |
| Mount Type | Surface Mount | |
| Contact Plating | Gold, Tin | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Card Thickness | 1.6mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Housing Material | Liquid Crystal Polymer | |
| Series | MTCA | |
| Card Type | Edge | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Edge Connector | ||
Orientation Straight | ||
Current 900mA | ||
Number of Contacts 170 | ||
Number of Rows 2 | ||
Connector Gender Female | ||
Pitch 0.75mm | ||
Mount Type Surface Mount | ||
Contact Plating Gold, Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Card Thickness 1.6mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Housing Material Liquid Crystal Polymer | ||
Series MTCA | ||
Card Type Edge | ||
The Samtec 0.75 mm micro TCA connection used gold for contact plating and has 170 pins which used LCP insulating material.
Operating temperature range -55 °C to +125 °C
