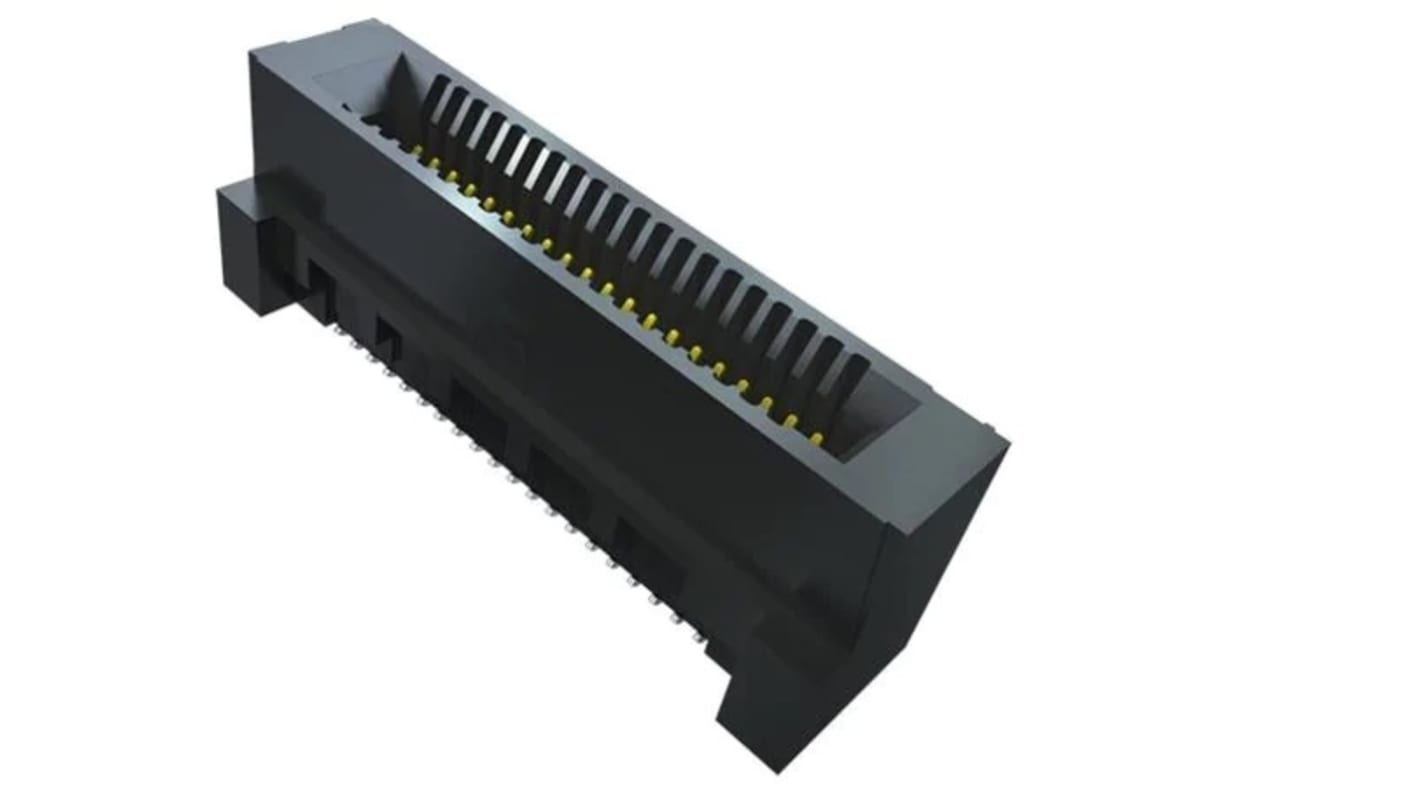

Samtec HSEC8-DV Series Vertical Edge Connector Female, Surface Mount, 140-Contacts, 0.8 mm Pitch, 2 Row, Solder
- RS Stock No.:
- 227-1393
- Mfr. Part No.:
- HSEC8-170-01-S-DV-A-K-TR
- Brand:
- Samtec
Subtotal (1 reel of 275 units)*
£998.25
(exc. VAT)
£1,199.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 275 + | £3.63 | £998.25 |
*price indicative
- RS Stock No.:
- 227-1393
- Mfr. Part No.:
- HSEC8-170-01-S-DV-A-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Orientation | Vertical | |
| Product Type | Edge Connector | |
| Number of Contacts | 140 | |
| Current | 2.8A | |
| Number of Rows | 2 | |
| Pitch | 0.8mm | |
| Connector Gender | Female | |
| Mount Type | Surface Mount | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Card Thickness | 1.6mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Voltage | 240V | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Housing Material | Liquid Crystal Polymer | |
| Standards/Approvals | No | |
| Series | HSEC8-DV | |
| Card Type | PCIe | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Orientation Vertical | ||
Product Type Edge Connector | ||
Number of Contacts 140 | ||
Current 2.8A | ||
Number of Rows 2 | ||
Pitch 0.8mm | ||
Connector Gender Female | ||
Mount Type Surface Mount | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Card Thickness 1.6mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Voltage 240V | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Housing Material Liquid Crystal Polymer | ||
Standards/Approvals No | ||
Series HSEC8-DV | ||
Card Type PCIe | ||
The Samtec HSEC8 series has 70 positions per row and 1 lead style. It has 0.000762mm selective gold on contact area and matte tin on tail.
Dual vertical row
Alignment pin
Polyimide film pick & place pad
Tape and reel packaging
