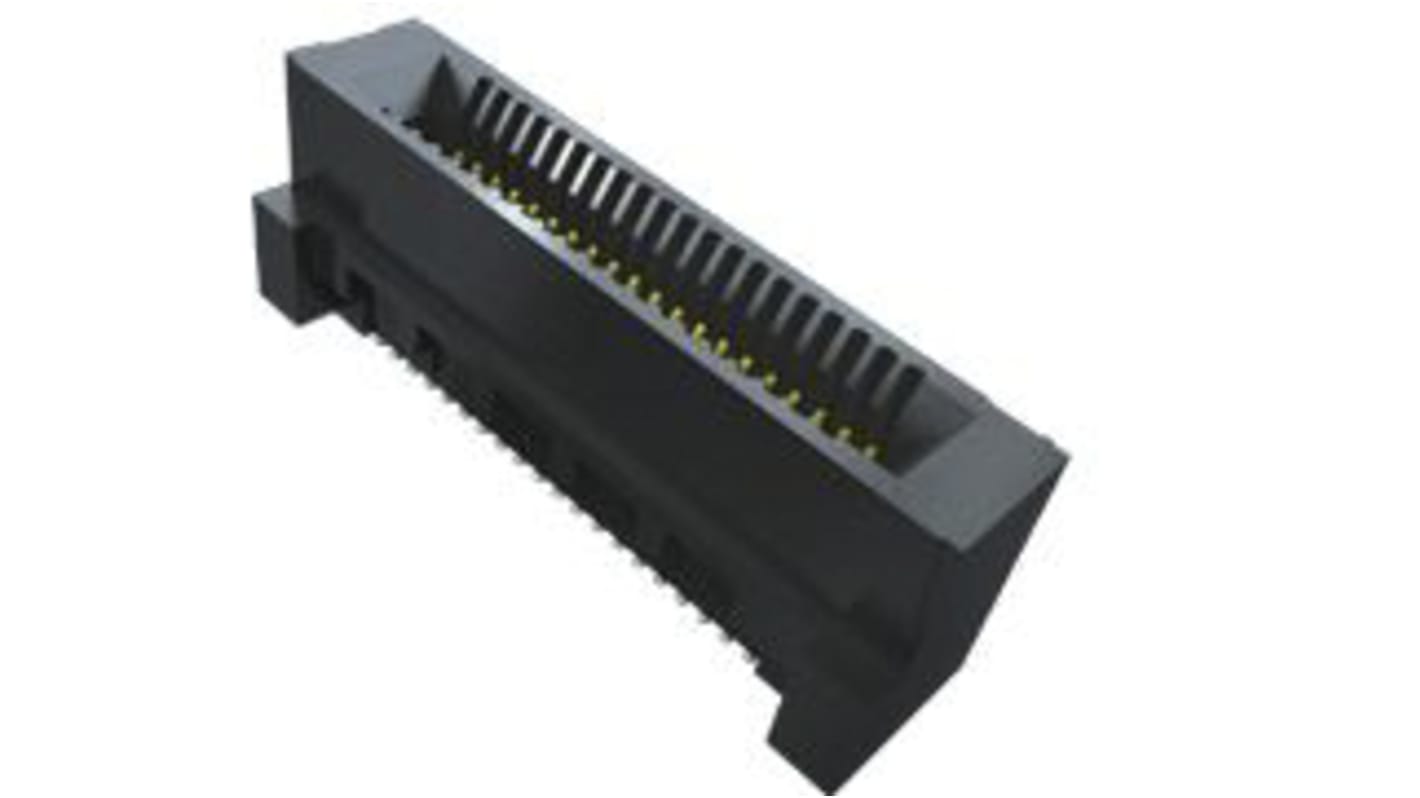

Samtec HSEC8-DV Series Vertical Female Edge Connector, Surface Mount, 120-Contacts, 0.8mm Pitch, 2-Row, Solder

View all Edge Connectors

Subtotal (1 tray of 42 units)*

£241.08

(exc. VAT)

£289.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 42 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
42 +£5.74£241.08

*price indicative

RS Stock No.:
180-4605
Mfr. Part No.:
HSEC8-160-01-L-DV-A-BL
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Body Orientation

Vertical

Gender

Female

Number of Contacts

120

Number of Rows

2

Pitch

0.8mm

Mounting Type

Surface Mount

Termination Method

Solder

Contact Plating

Gold

Contact Material

Beryllium Copper

Current Rating

2.8A

Housing Material

Liquid Crystal Polymer

Series

HSEC8-DV

Maximum Operating Temperature

+125°C

Card Type

Card Edge

Length

52.6mm

Depth

7.98mm

Minimum Operating Temperature

-55°C

Width

7mm

COO (Country of Origin):
MY
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
