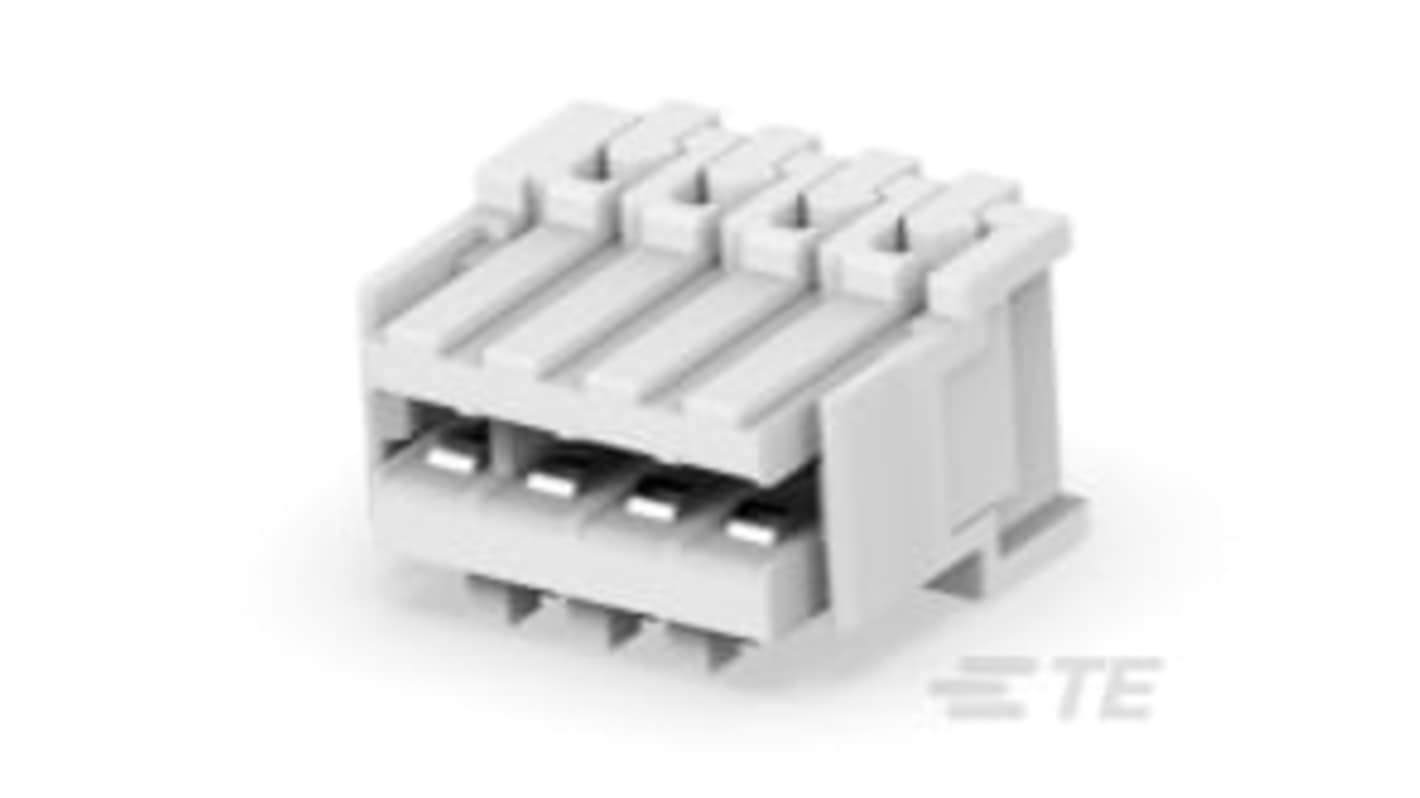

TE Connectivity 28486 Series Right Angle Edge Connector Female, Board, 4-Contacts, 2.5 mm Pitch, 1 Row, IDC
- RS Stock No.:
- 475-907
- Distrelec Article No.:
- 304-63-478
- Mfr. Part No.:
- 284865-4
- Brand:
- TE Connectivity
Subtotal (1 tray of 728 units)*
£148.32
(exc. VAT)
£177.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £148.32 | £0.204 |
*price indicative
- RS Stock No.:
- 475-907
- Distrelec Article No.:
- 304-63-478
- Mfr. Part No.:
- 284865-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Edge Connector | |
| Orientation | Right Angle | |
| Number of Contacts | 4 | |
| Current | 2A | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Connector Gender | Female | |
| Mount Type | Board | |
| Contact Plating | Pre Tin | |
| Contact Material | Phosphor Bronze | |
| Card Thickness | 1.5mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | IDC | |
| Keying Way | Yes | |
| Contact Gender | Female | |
| Voltage | 63V | |
| Maximum Operating Temperature | 110°C | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Standards/Approvals | China RoHS 2 MIIT Order No 32, EU RoHS 2011/65/EU, 2016, EU ELV 2000/53/EC | |
| Series | 28486 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Edge Connector | ||
Orientation Right Angle | ||
Number of Contacts 4 | ||
Current 2A | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Connector Gender Female | ||
Mount Type Board | ||
Contact Plating Pre Tin | ||
Contact Material Phosphor Bronze | ||
Card Thickness 1.5mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type IDC | ||
Keying Way Yes | ||
Contact Gender Female | ||
Voltage 63V | ||
Maximum Operating Temperature 110°C | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Standards/Approvals China RoHS 2 MIIT Order No 32, EU RoHS 2011/65/EU, 2016, EU ELV 2000/53/EC | ||
Series 28486 | ||
- COO (Country of Origin):
- IT
The TE Connectivity Standard edge connector is designed for wire-to-board applications, featuring a 4-position layout with a compact .098 in (2.5 mm) centreline. The product utilises an insulation displacement connection method, ensuring reliable electrical performance. Constructed from robust PBT GF material, the connector is engineered for durability, even in demanding environments. Its fully loaded design allows for efficient wiring, making it an ideal choice for a variety of electronic assemblies. With an operating temperature range of -40 to 110 °C, this connector excels in versatility, catering to both standard and extreme applications. The right-angle PCB mount orientation further enhances its adaptability in space-constrained designs, showcasing its suitability for modern connectivity needs.
Manufactured from high-quality PBT GF for enhanced durability
Utilises insulation displacement termination for easy and secure connections
Designed for flexibility with compatible discrete wire configurations
Features a side card entry style for straightforward insertion
Offers reliable mating retention to ensure stable connections
Optimised for operating voltages up to 63 VAC, suitable for various applications
Complies with EU RoHS and REACH regulations for environmentally responsible use
Packaged in trays for efficient handling and storage
