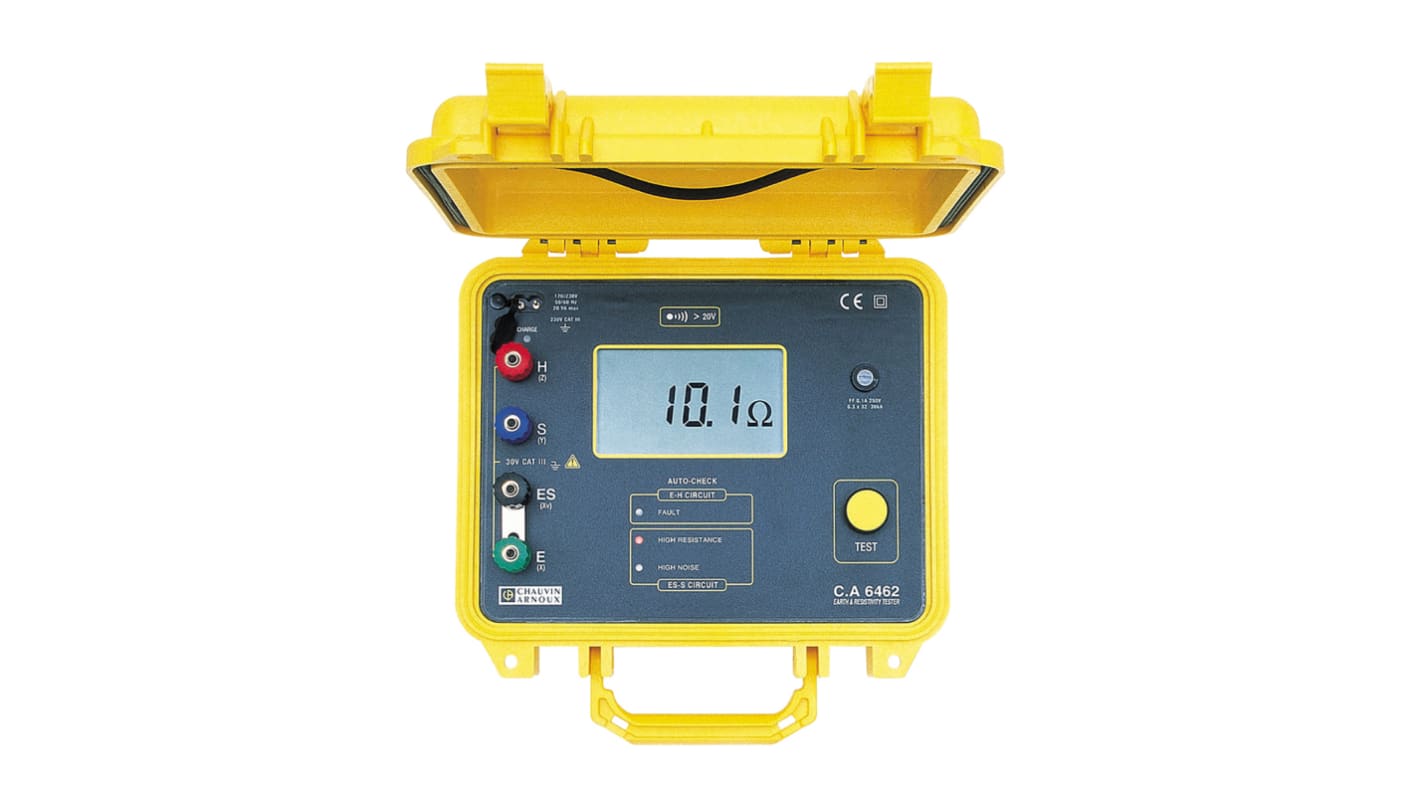

Chauvin Arnoux CA 6462 Earth Tester, 2 kΩ Aurix 30V
- RS Stock No.:
- 447-7785
- Distrelec Article No.:
- 300-77-258
- Mfr. Part No.:
- P01126502
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£1,239.73
(exc. VAT)
£1,487.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,239.73 |
*price indicative
- RS Stock No.:
- 447-7785
- Distrelec Article No.:
- 300-77-258
- Mfr. Part No.:
- P01126502
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Earth Tester | |
| Maximum Resistance Measurement | 2kΩ | |
| Accuracy | ±2% + 3 Digits | |
| Display Type | LCD | |
| Measurement Type | Earth Resistance, 4 Wire | |
| Battery Life | 6h | |
| Battery Type | Rechargeable Nickel-Metal Hydride | |
| Power Source | Mains, Battery | |
| Weight | 3.3kg | |
| Height | 127mm | |
| Includes | User Manual | |
| Length | 273mm | |
| Standards/Approvals | EN/IEC | |
| Maximum Operating Temperature | 55°C | |
| Plug Type | Type C | |
| Minimum Operating Temperature | -10°C | |
| Model Number | CA 6462 | |
| Width | 247mm | |
| Safety Category Level | Aurix | |
| Safety Category Voltage | 30V | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Earth Tester | ||
Maximum Resistance Measurement 2kΩ | ||
Accuracy ±2% + 3 Digits | ||
Display Type LCD | ||
Measurement Type Earth Resistance, 4 Wire | ||
Battery Life 6h | ||
Battery Type Rechargeable Nickel-Metal Hydride | ||
Power Source Mains, Battery | ||
Weight 3.3kg | ||
Height 127mm | ||
Includes User Manual | ||
Length 273mm | ||
Standards/Approvals EN/IEC | ||
Maximum Operating Temperature 55°C | ||
Plug Type Type C | ||
Minimum Operating Temperature -10°C | ||
Model Number CA 6462 | ||
Width 247mm | ||
Safety Category Level Aurix | ||
Safety Category Voltage 30V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
CA 6460 and CA 6462 Earth and Resistivity Testers
In their rugged, sealed housing, the CA 6460 and CA 6462 are easy to use and are designed specifically for operation in the field.
The CA 6460 and CA 6462 help to establish a fast and accurate diagnosis with optimum comfort and safety.
Use conventional stake methods (3- or 4-wire).
Indicator lights warn of elements impacting measurement (noise or excessive resistance in the voltage circuit).
The earth / resistivity kit must be ordered separately.
Standards
NF EN 61010- IEC 61557
