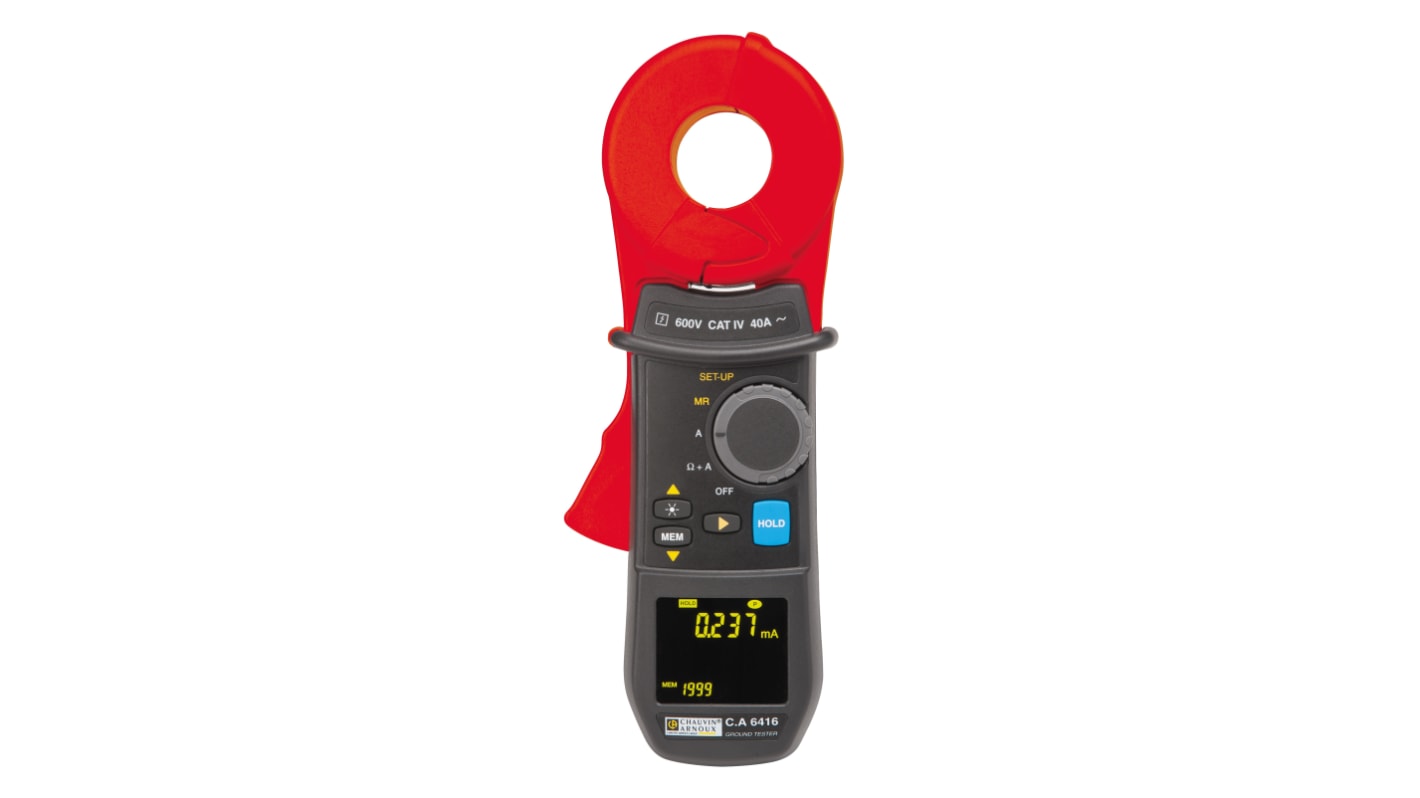

Chauvin Arnoux CA 6416 Earth Clamp, 1.5 kΩ CAT IV 600V
- RS Stock No.:
- 212-1261
- Distrelec Article No.:
- 301-72-032
- Mfr. Part No.:
- P01122115
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£1,304.11
(exc. VAT)
£1,564.93
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,304.11 |
*price indicative
- RS Stock No.:
- 212-1261
- Distrelec Article No.:
- 301-72-032
- Mfr. Part No.:
- P01122115
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Maximum Resistance Measurement | 1.5kΩ | |
| Product Type | Earth Clamp | |
| Accuracy | ±1.5 % | |
| Measurement Type | Earth Resistance | |
| Display Type | OLED | |
| Battery Type | Nickel-Metal Hydride, Alkaline, AA | |
| Power Source | Battery | |
| Weight | 935g | |
| Height | 55mm | |
| Length | 262mm | |
| Standards/Approvals | IEC 61010 | |
| Width | 95mm | |
| Model Number | CA 6416 | |
| Safety Category Voltage | 600V | |
| Safety Category Level | CAT IV | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Maximum Resistance Measurement 1.5kΩ | ||
Product Type Earth Clamp | ||
Accuracy ±1.5 % | ||
Measurement Type Earth Resistance | ||
Display Type OLED | ||
Battery Type Nickel-Metal Hydride, Alkaline, AA | ||
Power Source Battery | ||
Weight 935g | ||
Height 55mm | ||
Length 262mm | ||
Standards/Approvals IEC 61010 | ||
Width 95mm | ||
Model Number CA 6416 | ||
Safety Category Voltage 600V | ||
Safety Category Level CAT IV | ||
RoHS Status: Exempt
The CA 6418 is an earth clamp for quick testing of all types of earth loops.
With an oblong head for easy gripping, the CA 6418 is suitable for checking earth loops on 30 x 40mm, 20 x 55mm rectangular bars and 32mm diameter cables.
The AC 6418 clamp simultaneously displays the earth loop resistance and leakage current.
Wide measuring range from 0.010 Ω to 1200 Ω
Current from 0.5 mA to 20 A
Configurable alarms in Ω and A
High visibility OLOED display
Automatic Pre-Hold mode when the clamp is opened
300 time-stamped measurements
Automatic air gap calibration at start-up
Buzzer and automatic switch-off
