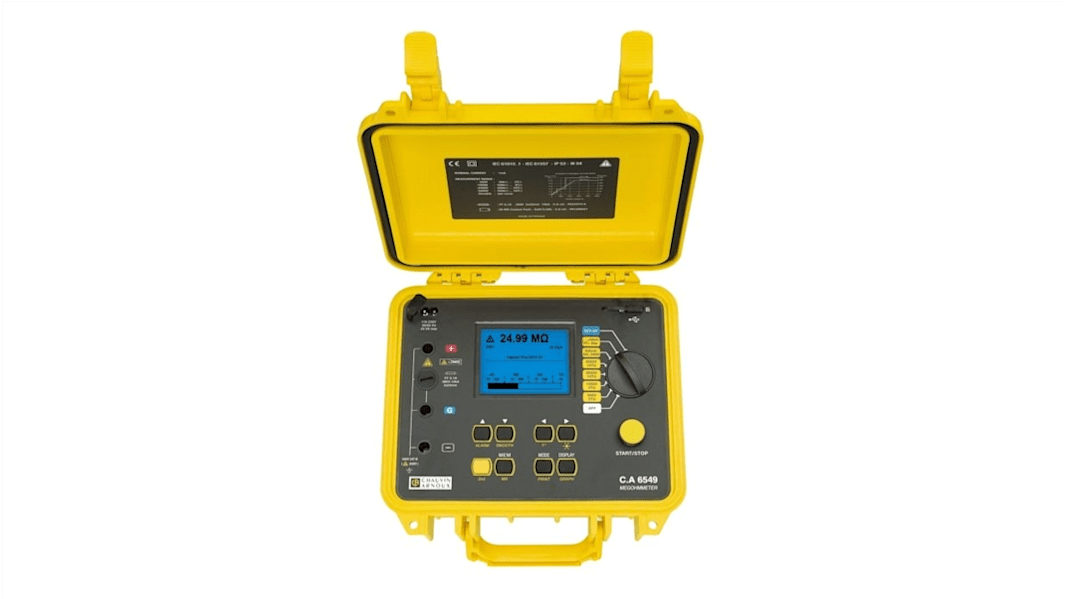

Chauvin Arnoux CA 6549 Insulation Resistance Tester, 40V Min, 5100V Max, 10000GΩ Max
- RS Stock No.:
- 236-8052
- Mfr. Part No.:
- P01139713
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£3,762.94
(exc. VAT)
£4,515.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 06 November 2025
- Plus 1 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,762.94 |
*price indicative
Calibration Options:
Each
£3,815.94
(exc. VAT)
£4,579.13
(inc. VAT)
Each
£3,837.94
(exc. VAT)
£4,605.53
(inc. VAT)
- RS Stock No.:
- 236-8052
- Mfr. Part No.:
- P01139713
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Model Number p | CA 6549 | |
| Tester Type | Insulation Resistance Tester | |
| Minimum Test Voltage | 40V | |
| Maximum Test Voltage | 5100V | |
| Maximum Insulation Resistance Measurement | 10000GΩ | |
| Display Type | Bar Graphs, LCD | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Model Number p CA 6549 | ||
Tester Type Insulation Resistance Tester | ||
Minimum Test Voltage 40V | ||
Maximum Test Voltage 5100V | ||
Maximum Insulation Resistance Measurement 10000GΩ | ||
Display Type Bar Graphs, LCD | ||
- COO (Country of Origin):
- FR
The Chauvin Arnoux 5000 V digital insulation tester, in its site-proof case, the C.A 6545 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current.
Measurement range is 10 kΩ to 10 TΩ
4 fixed test voltages are 500 / 1000 / 2500 and 5000 V
Adjustable test voltage positions of 40 to 5,100 V in 10 V or 100 V increments
Large backlit LCD screen with digital display and bargraph
Quantitative insulation analysis of DAR, PI and DD (dielectric discharge) quality ratios calculated automatically and R(t) stored
Large number of functions like programmable test duration, test voltage locking, smooth function, programmable alarms, etc.
Power supply is NiMH rechargeable battery for 30 days' operation with 10 DAR measurements and 5 PI measurements per day
Electrical safety i.e.. IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557
Dimensions is 270 x 250 x 180 mm
4 fixed test voltages are 500 / 1000 / 2500 and 5000 V
Adjustable test voltage positions of 40 to 5,100 V in 10 V or 100 V increments
Large backlit LCD screen with digital display and bargraph
Quantitative insulation analysis of DAR, PI and DD (dielectric discharge) quality ratios calculated automatically and R(t) stored
Large number of functions like programmable test duration, test voltage locking, smooth function, programmable alarms, etc.
Power supply is NiMH rechargeable battery for 30 days' operation with 10 DAR measurements and 5 PI measurements per day
Electrical safety i.e.. IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557
Dimensions is 270 x 250 x 180 mm
weight is 4.3 kg
