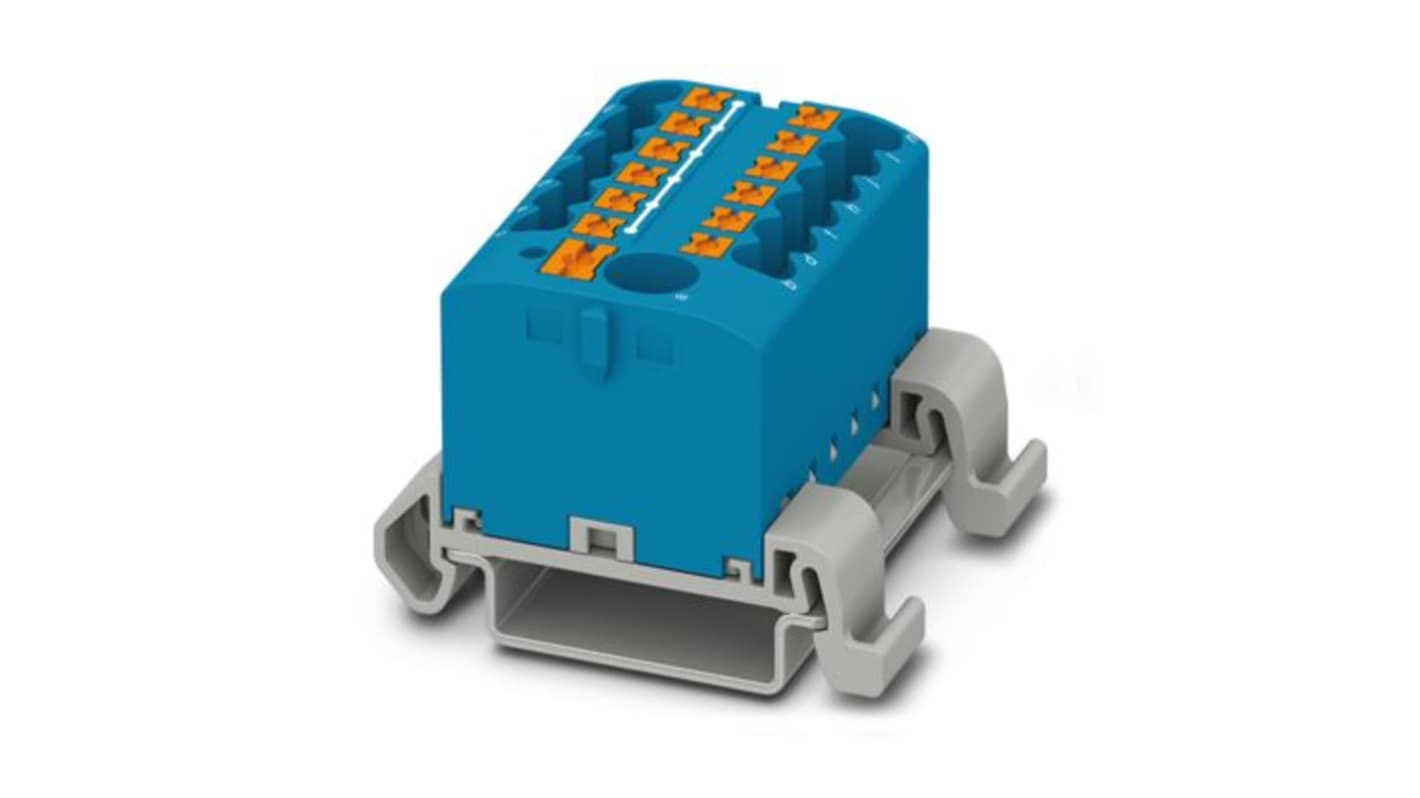

Phoenix Contact Distribution Block, 12 Way, 440V, 22.5A, Blue
- RS Stock No.:
- 520-849
- Mfr. Part No.:
- 1221435
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£65.10
(exc. VAT)
£78.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £65.10 | £8.138 |
*price indicative
- RS Stock No.:
- 520-849
- Mfr. Part No.:
- 1221435
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 12 | |
| Product Type | Distribution Block | |
| Current | 22.5A | |
| Housing Material | Polyamide | |
| Voltage | 440V | |
| Termination Type - Line Side | Snap-In | |
| Minimum Operating Temperature | 60°C | |
| Termination Type - Load Side | Push-in | |
| Wire Size - Line Side | 26/12 AWG | |
| Colour | Blue | |
| Maximum Operating Temperature | 110°C | |
| Width | 41mm | |
| Height | 45.7mm | |
| Standards/Approvals | UKCA-EX Approval ID: CML 22UKEX3672U, IECEx Approval ID: IECExSEV21.0023U, IEC 60364-4-43.2008, DIN VDE 0100-430:2010-10, CCC Approval ID: 2022122313115884, ATEX Approval ID: SEV21ATEX0557U | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 12 | ||
Product Type Distribution Block | ||
Current 22.5A | ||
Housing Material Polyamide | ||
Voltage 440V | ||
Termination Type - Line Side Snap-In | ||
Minimum Operating Temperature 60°C | ||
Termination Type - Load Side Push-in | ||
Wire Size - Line Side 26/12 AWG | ||
Colour Blue | ||
Maximum Operating Temperature 110°C | ||
Width 41mm | ||
Height 45.7mm | ||
Standards/Approvals UKCA-EX Approval ID: CML 22UKEX3672U, IECEx Approval ID: IECExSEV21.0023U, IEC 60364-4-43.2008, DIN VDE 0100-430:2010-10, CCC Approval ID: 2022122313115884, ATEX Approval ID: SEV21ATEX0557U | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Distribution Block is a testament to innovation and functionality, designed to meet the high standards of modern electrical systems. With its Ex e certification, it offers unparalleled safety for hazardous environments. Its dynamic design includes a user friendly push in direct connection technology, significantly reducing installation time. The product not only meets rigorous safety regulations but also optimises space on DIN rails, providing users with a practical and efficient solution for their electrical distribution needs. Ideal for both industrial and commercial settings, this distribution block is engineered to deliver exceptional performance while providing reliable connectivity and safety.
Offers flexible mounting options for diverse applications
Incorporates tool free push in direct connection technology
Designed to save up to 50% space on DIN rails
Available in eleven distinct colours for clear wiring and identification
