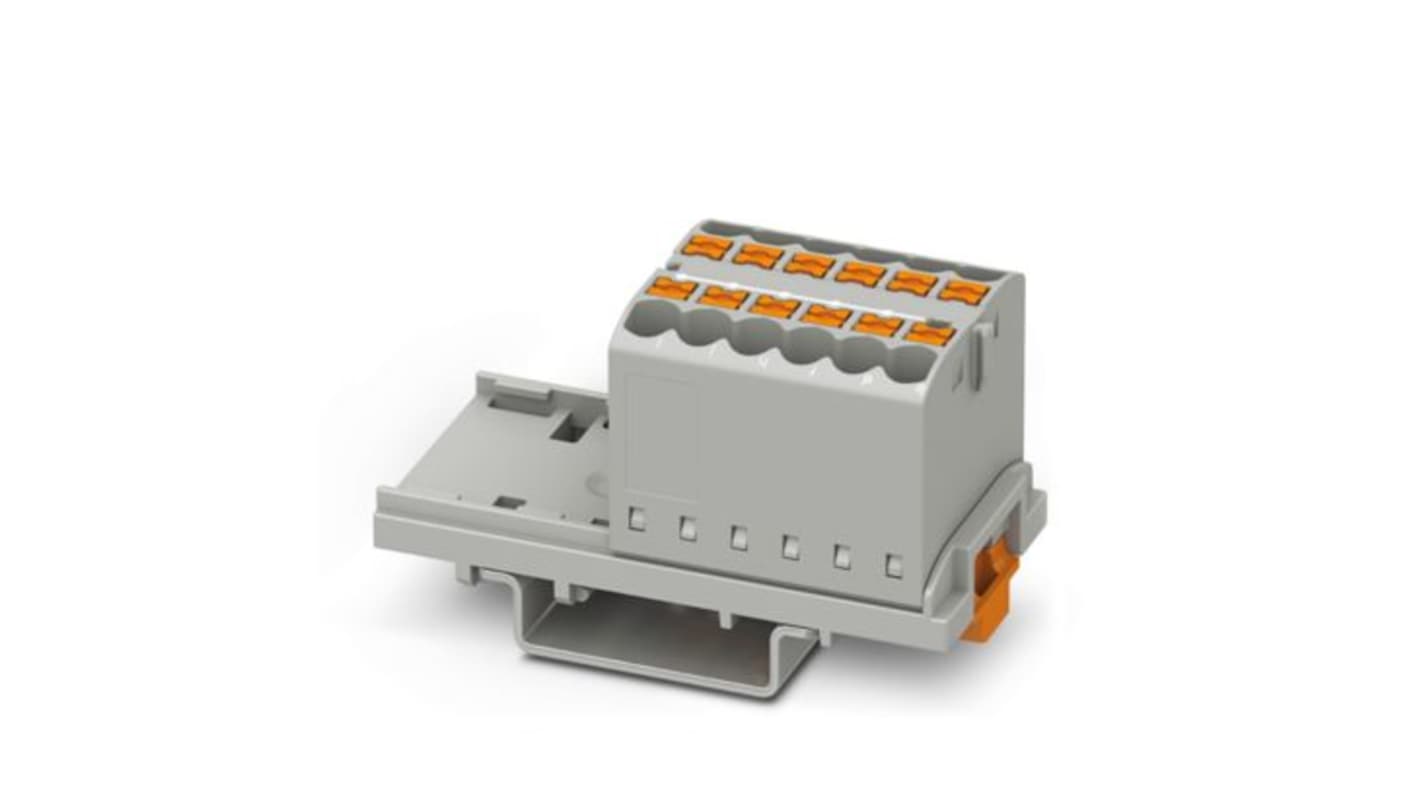

Phoenix Contact Distribution Block, 12 Way, 440 V, 22.5A, Grey
- RS Stock No.:
- 520-845
- Mfr. Part No.:
- 1221415
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£54.64
(exc. VAT)
£65.57
(inc. VAT)
Add 1 pack to get free delivery
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £54.64 | £6.83 |
*price indicative
- RS Stock No.:
- 520-845
- Mfr. Part No.:
- 1221415
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 12 | |
| Product Type | Distribution Block | |
| Current | 22.5A | |
| Housing Material | Polyamide | |
| Voltage | 440 V | |
| Wire Size - Line Side | 26/12 AWG | |
| Minimum Operating Temperature | 60°C | |
| Termination Type - Line Side | Snap-In | |
| Colour | Grey | |
| Width | 28.6 mm | |
| Height | 58.1mm | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | ATEX Approval ID: SEV21ATEX0557U, CCC Approval ID: 2022122313115884, IECEx Approval ID: IECExSEV21.0023U, UKCA-EX Approval ID: CML 22UKEX3672U | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 12 | ||
Product Type Distribution Block | ||
Current 22.5A | ||
Housing Material Polyamide | ||
Voltage 440 V | ||
Wire Size - Line Side 26/12 AWG | ||
Minimum Operating Temperature 60°C | ||
Termination Type - Line Side Snap-In | ||
Colour Grey | ||
Width 28.6 mm | ||
Height 58.1mm | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals ATEX Approval ID: SEV21ATEX0557U, CCC Approval ID: 2022122313115884, IECEx Approval ID: IECExSEV21.0023U, UKCA-EX Approval ID: CML 22UKEX3672U | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Distribution Block is designed to provide exceptional connectivity solutions within industrial applications. Its Ex e certification ensures safety even in hazardous environments, making it ideal for varied sectors such as automation and power distribution. The mounting versatility allows for both DIN rail and direct adhesive options, enhancing installation flexibility. In addition to its robust construction, the product features a sleek grey finish that adheres to industry standards. Its advanced push in direct connection technology significantly reduces installation time and enhances reliability, proving essential for fast paced settings.
Exceptional space saving design optimises the use of available DIN rail
Reliable push in connection technology guarantees swift and secure conductor attachment
Reduced wiring complexity simplifies overall setup and maintenance processes
Robust construction tailored for use in demanding industrial applications
Compatible with a wide range of accessories to enhance functionality
