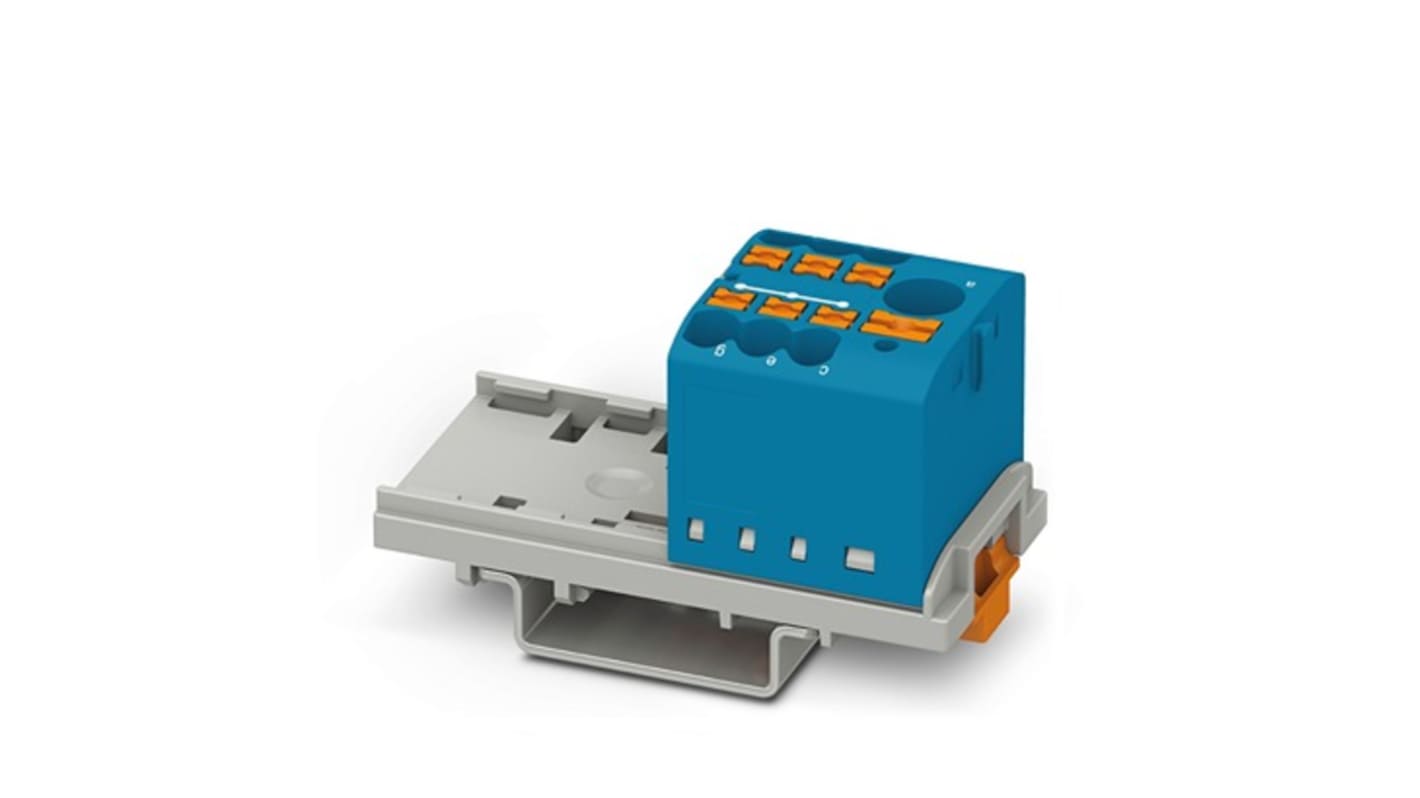

Phoenix Contact Distribution Block, 6 Way, 440 V, 22.5A, Blue
- RS Stock No.:
- 522-065
- Mfr. Part No.:
- 1221457
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£48.85
(exc. VAT)
£58.62
(inc. VAT)
Add 2 packs to get free delivery
Temporarily out of stock
- Shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £48.85 | £4.885 |
*price indicative
- RS Stock No.:
- 522-065
- Mfr. Part No.:
- 1221457
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Distribution Block | |
| Number of Ways | 6 | |
| Current | 22.5A | |
| Housing Material | Polyamide | |
| Voltage | 440 V | |
| Termination Type - Load Side | Push-in | |
| Wire Size - Load Side | 26 AWG | |
| Minimum Operating Temperature | 60°C | |
| Wire Size - Line Side | 26/12 AWG | |
| Termination Type - Line Side | Push-in | |
| Colour | Blue | |
| Width | 28.6 mm | |
| Standards/Approvals | UKCA-EX Approval ID: CML 22UKEX3672U, IECEx Approval ID: IECExSEV21.0023U, CCC Approval ID: 2022122313115884, ATEX Approval ID: SEV21ATEX0557U | |
| Maximum Operating Temperature | 110°C | |
| Height | 58.1mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Distribution Block | ||
Number of Ways 6 | ||
Current 22.5A | ||
Housing Material Polyamide | ||
Voltage 440 V | ||
Termination Type - Load Side Push-in | ||
Wire Size - Load Side 26 AWG | ||
Minimum Operating Temperature 60°C | ||
Wire Size - Line Side 26/12 AWG | ||
Termination Type - Line Side Push-in | ||
Colour Blue | ||
Width 28.6 mm | ||
Standards/Approvals UKCA-EX Approval ID: CML 22UKEX3672U, IECEx Approval ID: IECExSEV21.0023U, CCC Approval ID: 2022122313115884, ATEX Approval ID: SEV21ATEX0557U | ||
Maximum Operating Temperature 110°C | ||
Height 58.1mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Distribution Block offers an elegant solution for efficient electrical connections in diverse industrial applications. Designed for ease of use, it allows for flexible mounting options, accommodating both DIN rail and adhesive installations. It streamlines wiring processes, reducing installation time, while ensuring robust connections that support various conductor sizes. The advanced Push in direct connection technology enables tool free assembly, making it an ideal choice for professionals aiming for both practicality and quality in their projects. Compliant with international standards, this distribution block integrates seamlessly into existing setups, elevating the reliability of your electrical installations.
Tool free Push in direct connection technology saves time
Available in an array of attractive colour variants
Reduces installation space by allowing transverse mounting
Optimum performance through advanced engineering
Compatible with a range of accessories for expanded functionality
Robust design withstands harsh environmental conditions
