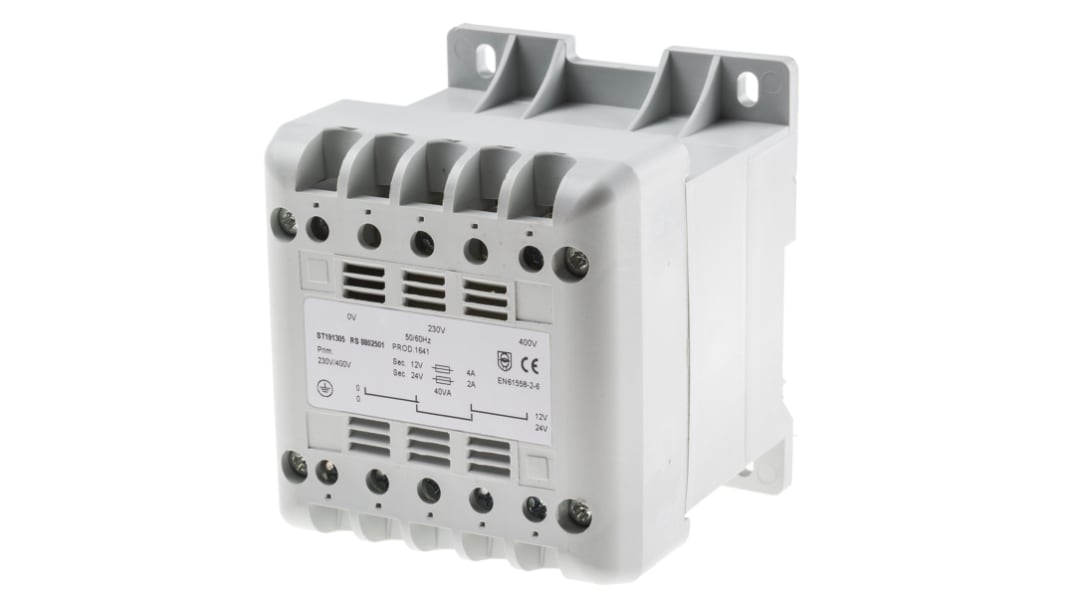

RS PRO 40 VA DIN Rail Transformer, 400 V ac Primary, 12 V ac Secondary, IEC 61558-2-6

View all DIN Rail Transformers
Bulk discount available

Subtotal (1 unit)*

£78.49

(exc. VAT)

£94.19

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 29£78.49
30 - 59£71.82
60 +£64.21

*price indicative

RS Stock No.:
880-2501
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Primary Voltage

400 V ac

Product Type

DIN Rail Transformer

Secondary Voltage

12 V ac

Mount Type

DIN Rail

Number of Outputs

2

Length

106mm

Power

40VA

Width

90mm

Depth

87mm

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Weight

1.4kg

Maximum Operating Temperature

130°C

Standards/Approvals

IEC 61558-2-6

COO (Country of Origin):
PL

RS PRO DIN Rail Control Panel Isolation Transformers


The RS PRO DIN Rail Transformer is a versatile and reliable solution designed to meet the demanding needs of modern electrical systems. With its robust construction and high efficiency, this transformer ensures optimal performance and longevity, making it an excellent choice for various industrial applications.

Why Choose RS PRO DIN Rail Transformers?


  • Versatility: Multiple primary and secondary voltage options to suit diverse applications.

  • Safety: High isolation ratings and IP21 protection class for safe operation

  • Efficiency: High efficiency and low regulation minimize energy loss

  • Durability: Operates at temperatures up to 130°C, built to withstand harsh conditions

    • Features and Benefits


  • Primary Voltage Rating: 230V or 400V AC

  • Secondary Voltage Rating: 12V, 24V, or 115V AC

  • Optional Dual Output: Flexibility to meet diverse requirements

  • Power Ratings: Available from 40VA to 400VA

  • Operating Frequency: 50/60Hz for global compatibility

  • Maximum Temperature: Can withstand up to 130°C

  • Isolation: High isolation of 4kV or 4.6kV RMS for enhanced safety

  • Efficiency: High efficiency with low regulation design

  • Protection Class: IP21 for reliable protection against dust and moisture

  • Adjustments: Optional +/- 15V adjustment tapings for precise voltage control

    • Applications


  • Electrical control systems

  • Panel boards

  • Electromagnetic applications

    • Laminated


    Standards

    EN61558-1
