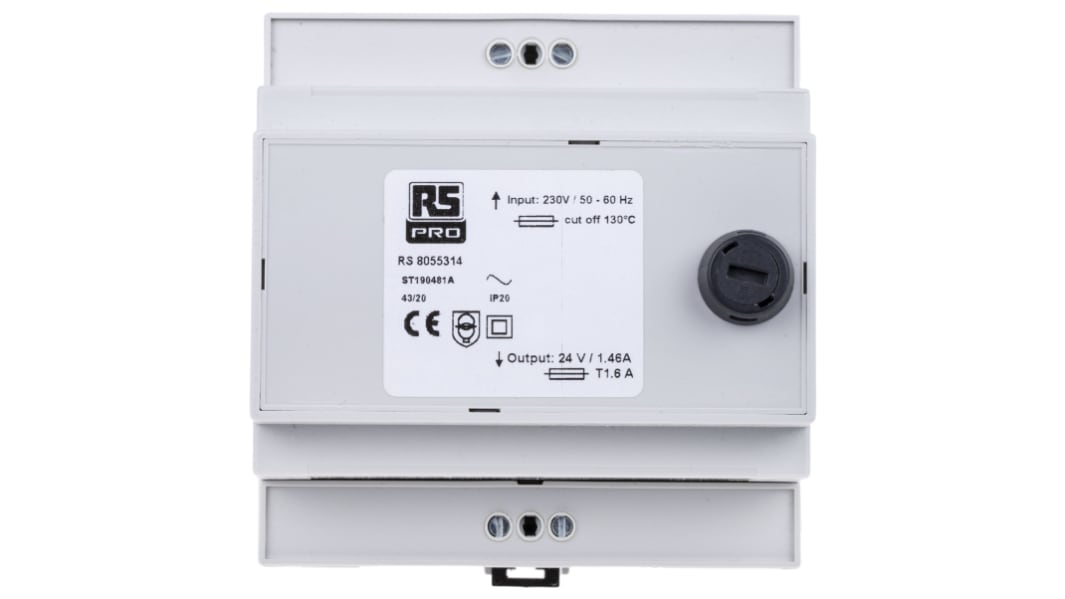

RS PRO 35 VA DIN Rail Transformer, 230 V ac Primary, 24 V ac Secondary, IEC 61558-2-6

View all DIN Rail Transformers
Bulk discount available

Subtotal (1 unit)*

£87.93

(exc. VAT)

£105.52

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 24£87.93
25 - 49£86.08
50 +£80.01

*price indicative

RS Stock No.:
805-5314
Distrelec Article No.:
304-03-541
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

DIN Rail Transformer

Primary Voltage

230 V ac

Secondary Voltage

24 V ac

Mount Type

DIN Rail

Number of Outputs

1

Length

90mm

Power

35VA

Width

88mm

Depth

58mm

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Weight

900g

Maximum Operating Temperature

130°C

Standards/Approvals

IEC 61558-2-6

COO (Country of Origin):
PL

RS PRO 35 VA DIN Rail Transformer, 230 V AC Primary 1 x, 24 V AC Secondary


This DIN rail transformer from RS PRO works with continuous electrical loads to prevent short-circuiting and overloading. Designed to DIN standards (Deutsches Institut für Normung, or the German Institute of Standardisation), it has also been electrical and flash tested for an extra level of safety. It provides additional protection against electrical shock.

The transformer comes with pre-drilled screw holes for easy mounting onto a standard 35 mm (TS35) DIN rail. The plastic casing is IP20 rated for basic dust protection and is safe to touch. It's not waterproof though, so it's best for indoor settings.

These kinds of transformers are typically used in connection with internal building jobs, as well as in factories and workshops, for example for heating and temporary lighting.

Part of the tried and trusted RS PRO range, this product has undergone extensive quality controls for safety and durability.

Features and Benefits


• DIN rail transformer

• Primary voltage rating of 230 V AC

• Secondary voltage rating of 24 V AC

• Power rating of 35 VA

• Mounted by DIN rail

• Single output

• Dimensions: 88 mm (W) x 58 mm (D) x 90 mm (L)

• Operating frequency range of 50 Hz to 60 Hz

• Maximum temperature of +130°C

• Weight of 900 g

• 100% electrical and flash tested for safety

• IP20 rated as safe to touch with fingers

• RoHS compliant for restricted hazardous substances

• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
