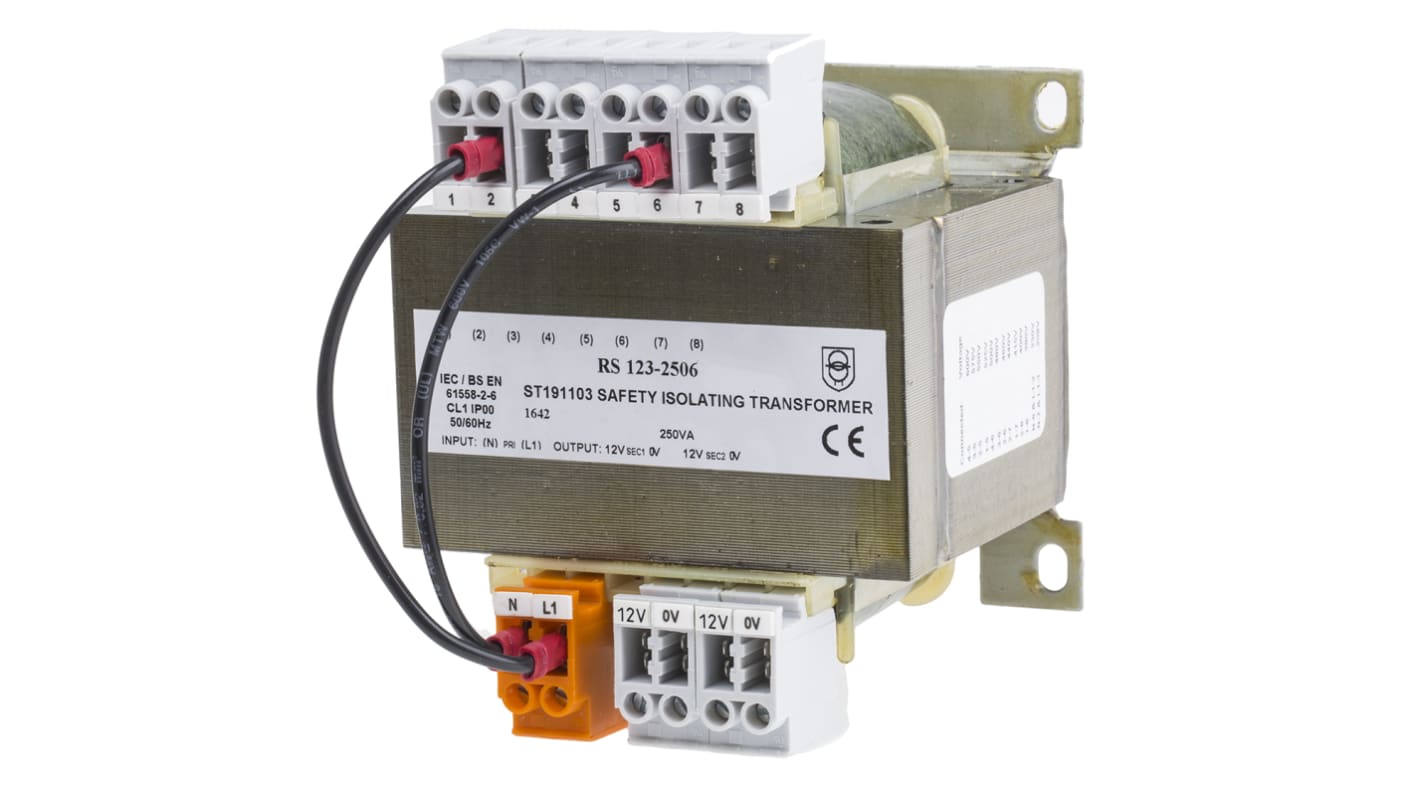

RS PRO 250 VA DIN Rail Transformer, 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500
- RS Stock No.:
- 123-2506
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£157.08
(exc. VAT)
£188.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 25 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £157.08 |
| 10 + | £141.37 |
*price indicative
- RS Stock No.:
- 123-2506
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage | 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac | |
| Product Type | DIN Rail Transformer | |
| Secondary Voltage | 2 x 12 V ac | |
| Mount Type | DIN Rail | |
| Length | 96mm | |
| Power | 250VA | |
| Width | 102mm | |
| Depth | 110mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 3.5kg | |
| Standards/Approvals | IEC 61558-2-6 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac | ||
Product Type DIN Rail Transformer | ||
Secondary Voltage 2 x 12 V ac | ||
Mount Type DIN Rail | ||
Length 96mm | ||
Power 250VA | ||
Width 102mm | ||
Depth 110mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Weight 3.5kg | ||
Standards/Approvals IEC 61558-2-6 | ||
- COO (Country of Origin):
- PL
RS Pro Universal Input Transformers
This series of input transformers from our trusted RS Pro brand are high quality and suitable for use in general applications. They are single phase transformers with screw connectors for universal input voltages, brackets for screw fixing or to DIN Rails. DIN Rail fixing is only for transformers up to 250 VA. These input transformers are 100% flash tested and electrical tested, and feature low noise laminations. With a fitted earth terminal, these transformers have a multi-tapped primary winding. All models are highly reliable and excellent quality.
Features and Benefits
• High efficiency
• Low regulation design
• Varnish impregnated
• Temperature Class B
What does a transformer do?
Transformers increase or decrease voltages within an AC circuit. You will find them in almost all electrical environments. As an example, some of the different types of power management units and how their voltages work are listed below.
Transformers - AC to AC
Power Supplies - AC to DC
DC Converters - DC to DC
Inverters - DC to AC (Pure or modified sine wave)
