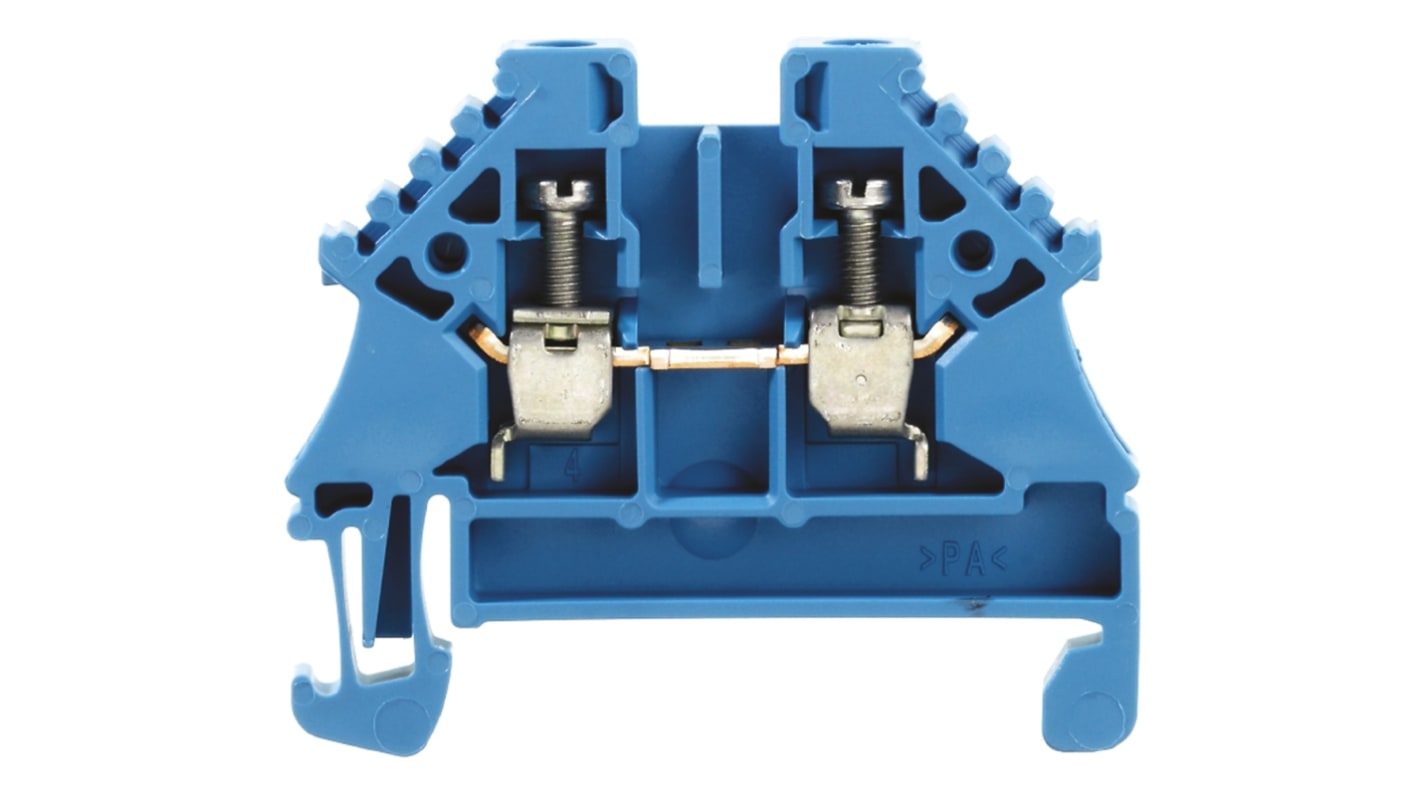

Weidmuller 1040880000 W Series Blue, 2.5mm², Single-Level, Screw Termination
- RS Stock No.:
- 826-3105
- Mfr. Part No.:
- 1040880000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£7.39
(exc. VAT)
£8.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.739 | £7.39 |
*price indicative
- RS Stock No.:
- 826-3105
- Mfr. Part No.:
- 1040880000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Blue | |
Number of Levels | Single | |
Voltage Rating | 500 V | |
Series | W | |
American Wire Gauge | 30 → 12AWG | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Current Rating | 24A | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Blue | ||
Number of Levels Single | ||
Voltage Rating 500 V | ||
Series W | ||
American Wire Gauge 30 → 12AWG | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Current Rating 24A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- DE
WDU Series Feed-Through Terminal Blocks
WDU Series feed-through terminal blocks with yoke connection technology. The terminals are highly reliable and make planning easier and optimise operational safety.
Features and Benefits
Screw connection
Snap-on mounting
Klippon® connect provides established response to a range of requirements
Snap-on mounting
Klippon® connect provides established response to a range of requirements
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
