Weidmuller 8731640000 WTR 2.5 BL Series Blue, 2.5mm², Single-Level, Screw Termination
- RS Stock No.:
- 823-9584
- Mfr. Part No.:
- 8731640000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£12.61
(exc. VAT)
£15.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £2.522 | £12.61 |
*price indicative
- RS Stock No.:
- 823-9584
- Mfr. Part No.:
- 8731640000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Blue | |
Number of Levels | Single | |
Voltage Rating | 500 V | |
American Wire Gauge | 30 → 12AWG | |
Series | WTR 2.5 BL | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Current Rating | 24A | |
Pitch | 5.1mm | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Standards Met | IEC 60947-7-1 | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Blue | ||
Number of Levels Single | ||
Voltage Rating 500 V | ||
American Wire Gauge 30 → 12AWG | ||
Series WTR 2.5 BL | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Current Rating 24A | ||
Pitch 5.1mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Standards Met IEC 60947-7-1 | ||

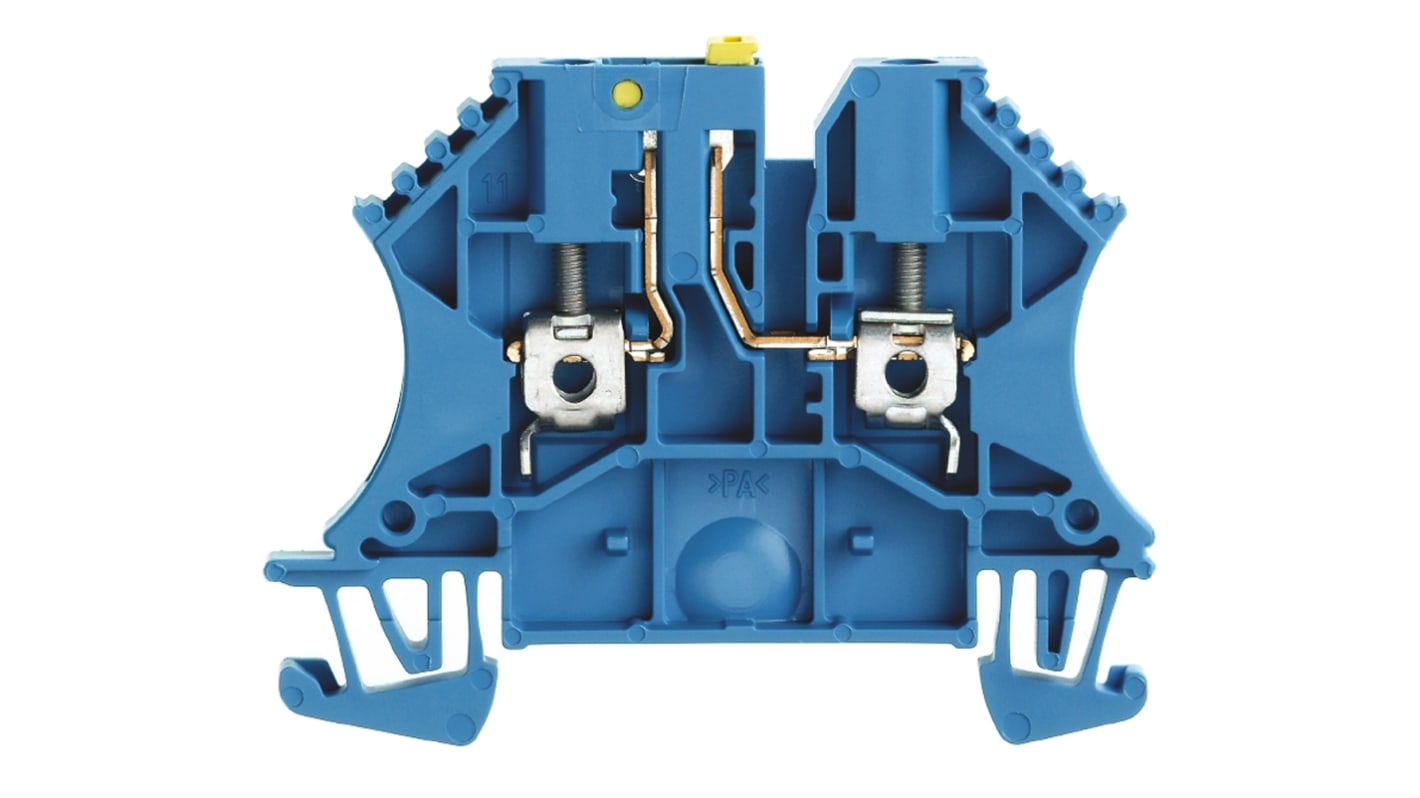

Weidmuller WTR 2.5 BL Series Test Disconnect Terminal Block, 2.5mm², 24A Current Rating - 8731640000
This test disconnect terminal block is designed for efficient electrical connections across various applications. It features a blue colour and supports cable cross-sectional areas of up to 2.5mm². With a current rating of 24A and a voltage rating of 500V, this single-level terminal block complies with IEC 60947-7-1 standards, ensuring safety and dependable operation.
Features & Benefits
• Current handling capability of 24A
• Voltage capacity of up to 500V
• Compatible with AWG sizes from 30 to 12
• Operating temperature range from -50 to +120°C
• Compliance with IEC 60947-7-1 standards
• Compact pitch of 5.1mm for efficient installation
• Voltage capacity of up to 500V
• Compatible with AWG sizes from 30 to 12
• Operating temperature range from -50 to +120°C
• Compliance with IEC 60947-7-1 standards
• Compact pitch of 5.1mm for efficient installation
Applications
• Suitable for automation control panels
• Effective for connecting sensors and actuators
• Applicable in electrical distribution systems
• Used in wiring for mechanical equipment
• Effective for connecting sensors and actuators
• Applicable in electrical distribution systems
• Used in wiring for mechanical equipment
Can it operate in extreme temperatures?
Yes, it functions effectively between -50°C and +120°C.
Will it maintain performance under high current conditions?
It is designed to handle current ratings up to 24A.
Is it compatible with different wire sizes?
The block accommodates AWG sizes ranging from 30 to 12.
What is the height of the WTR 2.5 BL terminal?
The terminal stands 60 mm high.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
