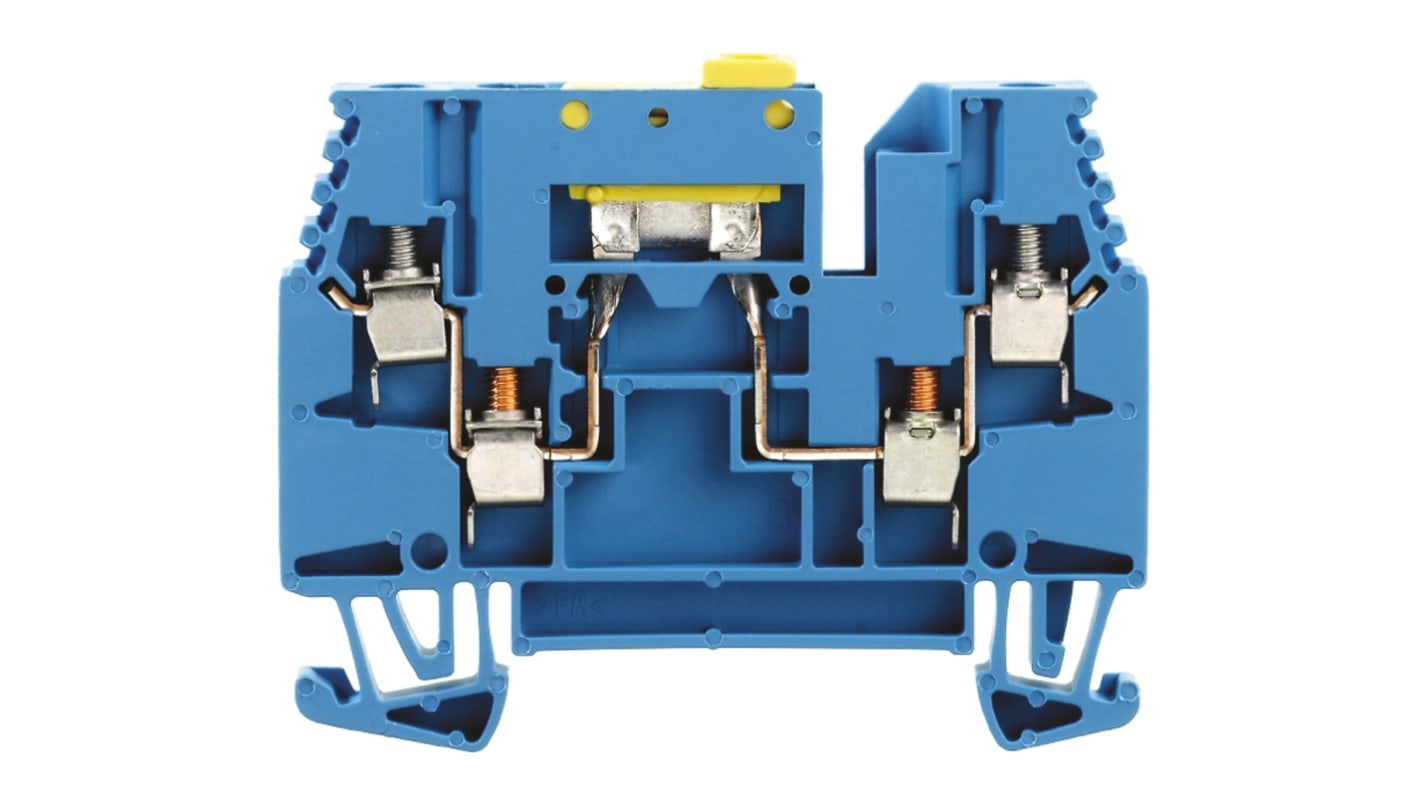

Weidmüller 1039980000 W Series Disconnect Terminal Block Blue, 2.5 mm², 1-Level, Screw

RS Stock No.:: 823-9603
Mfr. Part No.:: 1039980000
Brand:: Weidmüller

Weidmüller 1039980000 W Series Disconnect Terminal Block Blue, 2.5 mm², 1-Level, Screw

Subtotal (1 pack of 5 units)*

£18.29

(exc. VAT)

£21.95

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

95 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 +	£3.658	£18.29

*price indicative

Weidmuller Jumper Bars

Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications

Explore Weidmuller Jumper Bars

RS Stock No.:: 823-9603
Mfr. Part No.:: 1039980000
Brand:: Weidmüller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Colour	Blue
	Product Type	Disconnect Terminal Block
	Number of Levels	1
	Voltage	400 V
	Series	W
	Cable CSA	2.5 mm²
	Minimum Wire Size AWG	26 AWG
	Maximum Wire Size AWG	12 AWG
	Pitch	5.1mm
	Terminal Block Current	14A
	Minimum Operating Temperature	-50°C
	Termination Type	Screw
	Maximum Operating Temperature	120°C
	Hazardous Area Certification	No
	Standards/Approvals	No

	Select all
	Brand Weidmüller
	Colour Blue
	Product Type Disconnect Terminal Block
	Number of Levels 1
	Voltage 400 V
	Series W
	Cable CSA 2.5 mm²
	Minimum Wire Size AWG 26 AWG
	Maximum Wire Size AWG 12 AWG
	Pitch 5.1mm
	Terminal Block Current 14A
	Minimum Operating Temperature -50°C
	Termination Type Screw
	Maximum Operating Temperature 120°C
	Hazardous Area Certification No
	Standards/Approvals No

1039980000_WTR_2.5_ZZ_BL_en 8239603

COO (Country of Origin):: RO

WTR Series Test Disconnect Terminal Blocks

Weidmuller W series (WTR) test quick disconnect terminal blocks with clamping yoke technology.

Features and Benefits

• High reliability;• Variety of designs;• Clamping yoke connections

Product Application Information

Klippon® Connect provides a proven response to a large range of different requirements.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
