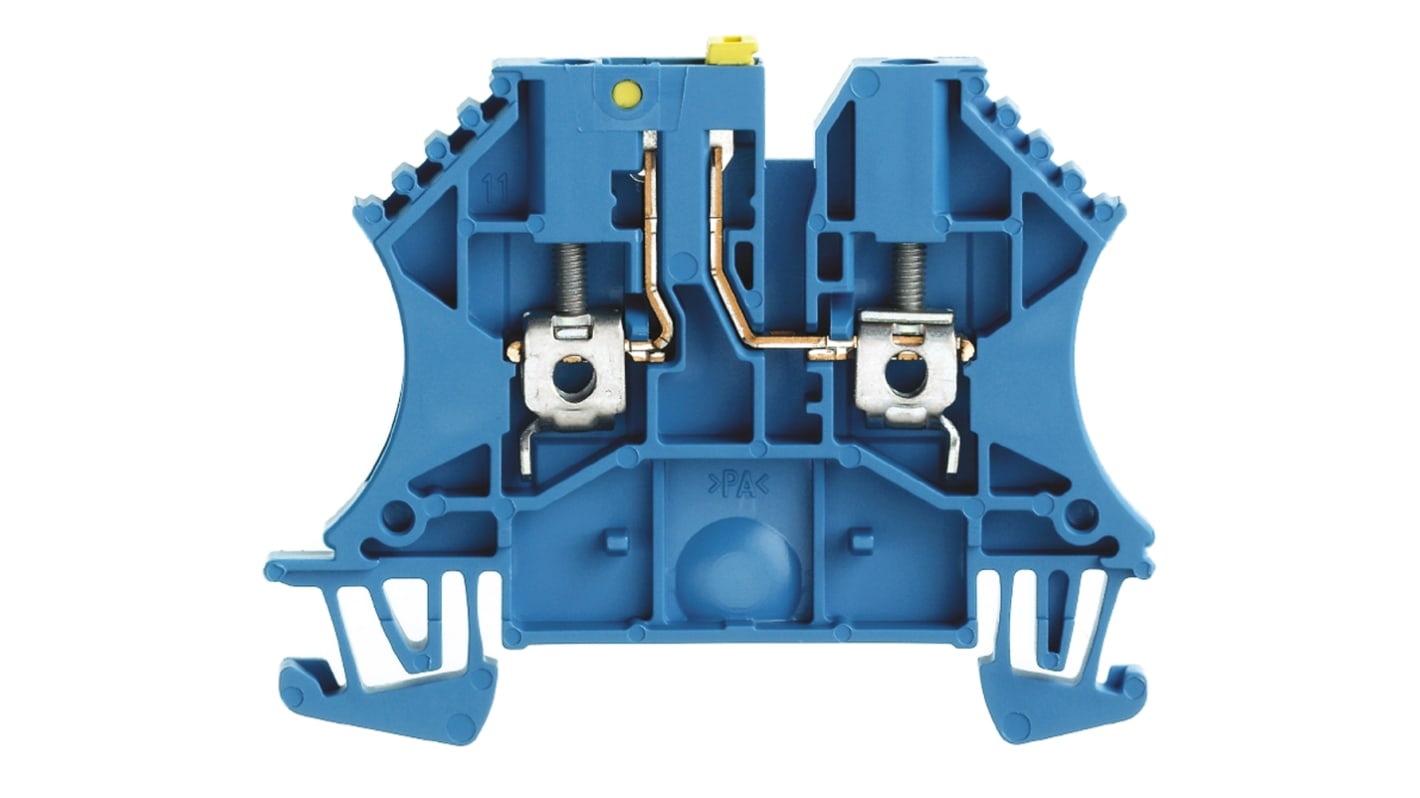

Weidmüller W Series Blue Disconnect Terminal Block, 2.5mm², Single-Level, Screw Termination
- RS Stock No.:
- 823-9590
- Mfr. Part No.:
- 8731660000
- Brand:
- Weidmüller
445 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£2.196
(exc. VAT)
£2.635
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 25 | £2.196 | £10.98 |
| 30 - 55 | £2.086 | £10.43 |
| 60 + | £2.002 | £10.01 |
| *price indicative | ||
- RS Stock No.:
- 823-9590
- Mfr. Part No.:
- 8731660000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
Product Details
WTR Series Test Disconnect Terminal Blocks
Weidmuller W series (WTR) test quick disconnect terminal blocks with clamping yoke technology.
Features and Benefits
• High reliability
• Variety of designs
• Clamping yoke connections
Product Application Information
Klippon® Connect provides a proven response to a large range of different requirements.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
|---|---|
| Colour | Blue |
| Number of Levels | Single |
| American Wire Gauge | 30 → 12AWG |
| Series | W |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Voltage Rating | 800 V |
| Current Rating | 14A |
| Pitch | 5.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
- RS Stock No.:
- 823-9590
- Mfr. Part No.:
- 8731660000
- Brand:
- Weidmüller
