Weidmuller 1023780000 WDU Series Blue, 2.5mm², Single-Level, Screw Termination, ATEX, IECEx
- RS Stock No.:
- 220-4147
- Mfr. Part No.:
- 1023780000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£6.72
(exc. VAT)
£8.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 860 unit(s) ready to ship
- Plus 130 unit(s) ready to ship from another location
- Plus 1,000 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.672 | £6.72 |
*price indicative
- RS Stock No.:
- 220-4147
- Mfr. Part No.:
- 1023780000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Blue | |
Number of Levels | Single | |
American Wire Gauge | 26 → 12AWG | |
Series | WDU | |
Voltage Rating | 500 V | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Current Rating | 32A | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Hazardous Area Certification | ATEX, IECEx | |
Standards Met | CCC, CE, CSA, cURus, IECEx, UKCA | |
Model Number | WDU 2.5N BL | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Blue | ||
Number of Levels Single | ||
American Wire Gauge 26 → 12AWG | ||
Series WDU | ||
Voltage Rating 500 V | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Current Rating 32A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met CCC, CE, CSA, cURus, IECEx, UKCA | ||
Model Number WDU 2.5N BL | ||
- COO (Country of Origin):
- DE

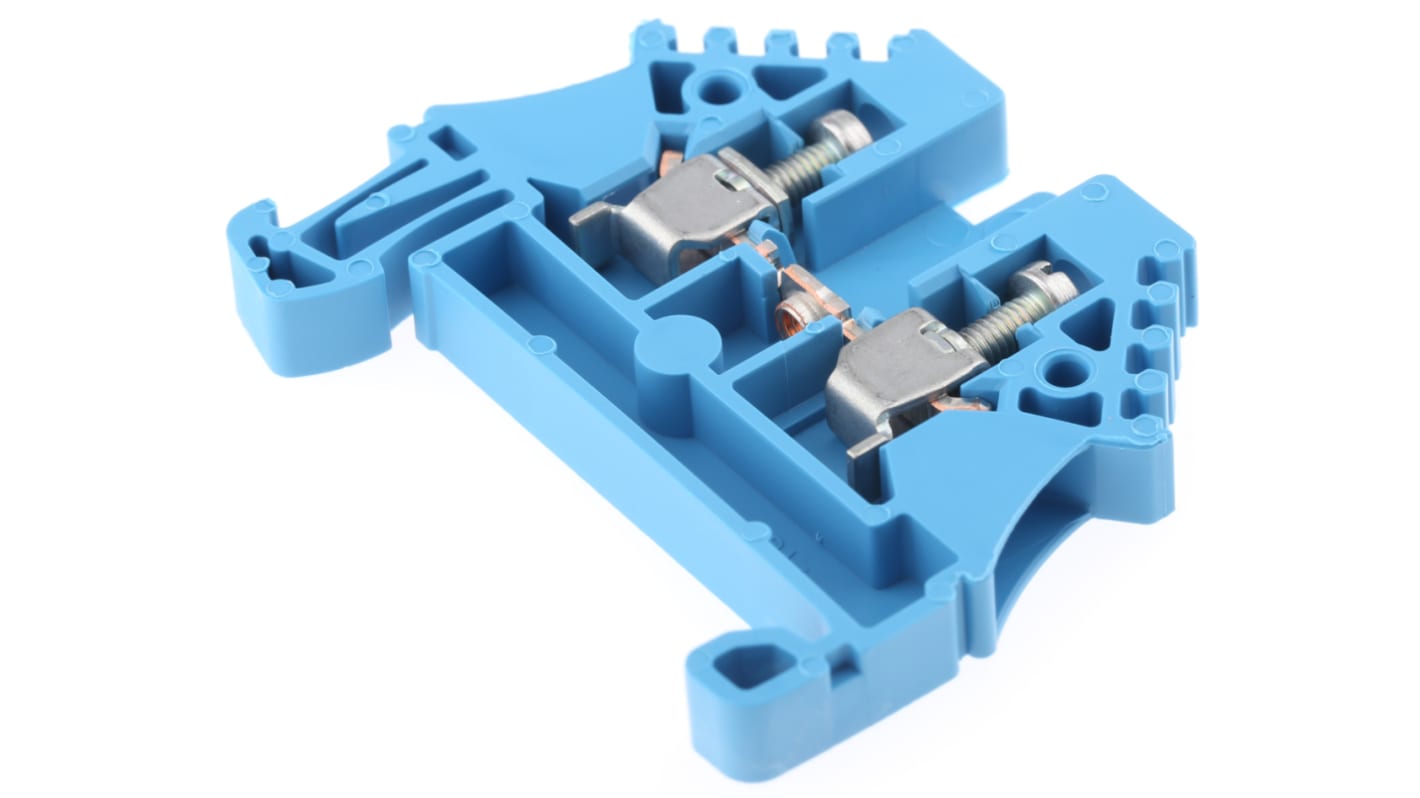

Weidmuller WDU Series DIN Rail Terminal Block, Screw Termination Method, 500V Voltage Rating - 1023780000
This Weidmuller DIN rail terminal block in blue is designed for industrial applications, offering a current rating of 32A and a wire cross-section of 2.5 mm². The single-level terminal block from the WDU series ensures reliable and secure electrical connections for various wiring needs.
Features & Benefits
• Screw connection method for easy installation
• 500V voltage rating for industrial use
• Wide operating temperature range from -50°C to +120°C
• Compact design with dimensions of 5.1mm x 44mm x 37mm for easy handling
• UL 94 flammability rating of V-0 for safety
• CSA certified for 26 to 12 AWG cables ensuring safe operation
• 500V voltage rating for industrial use
• Wide operating temperature range from -50°C to +120°C
• Compact design with dimensions of 5.1mm x 44mm x 37mm for easy handling
• UL 94 flammability rating of V-0 for safety
• CSA certified for 26 to 12 AWG cables ensuring safe operation
Applications
• Ideal for electrical panel wiring
• Suitable for control systems in automation
• Suitable for power distribution in industrial settings
• Suitable for control systems in automation
• Suitable for power distribution in industrial settings
Can it handle high temperatures?
Yes, the terminal block can operate in temperatures ranging from -50°C to +120°C.
Will it work with different wire sizes?
The terminal block is compatible with wires ranging from 26 to 12 AWG in size, ensuring flexibility in wiring setups.
Is it suitable for industrial use?
Yes, the WDU series terminal block is designed for industrial applications, offering reliability and safety in electrical connections.
Approvals
1-10
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
