One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

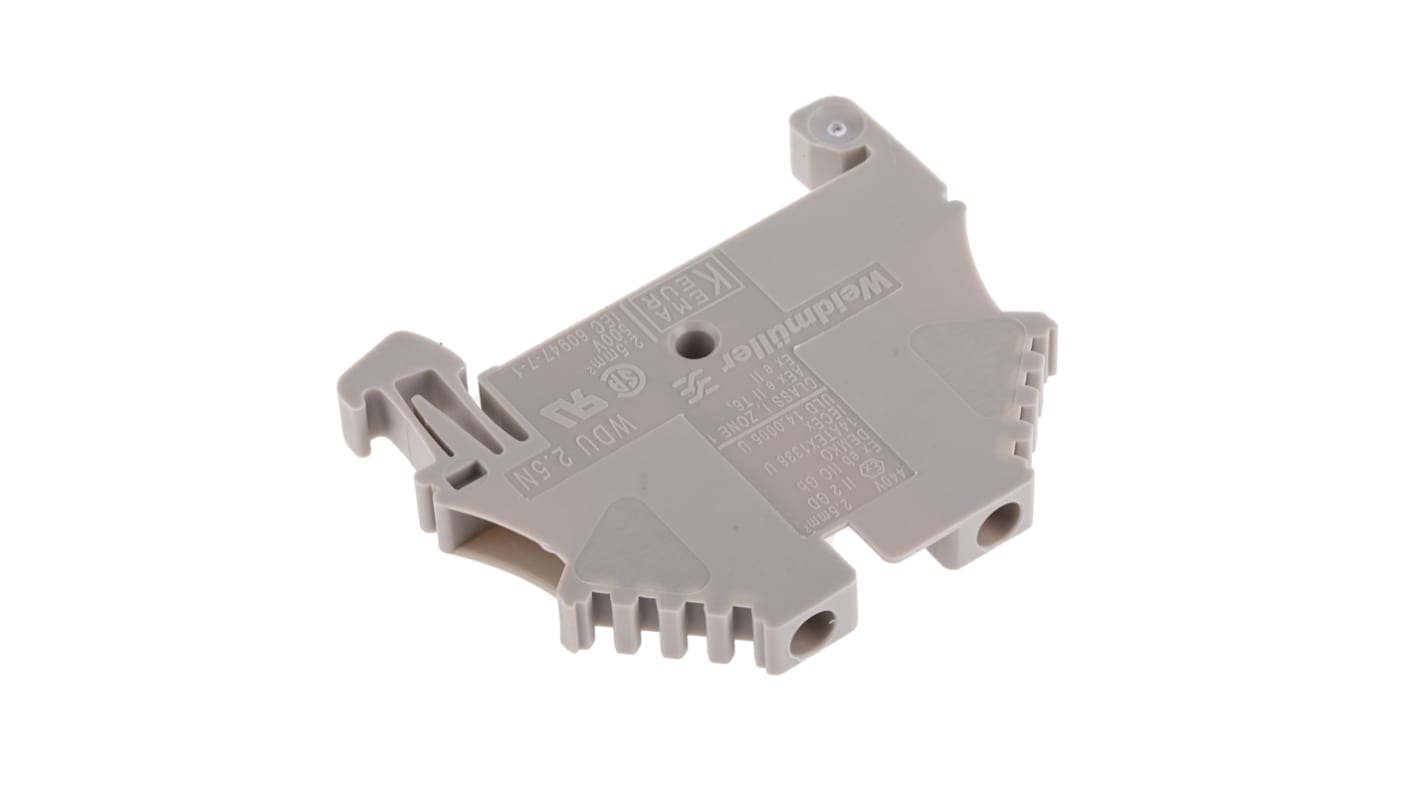

Keep unruly sparks under control with this single-level feed-through terminal block from Weidmuller. The component improves electrical safety by putting a cap on overcurrents and short circuits to prevent damage to your equipment. A robust Wemid casing protects internal wires and contacts while providing touch-proof insulation to decrease shocking surprises. It's tough enough to handle use in dangerous environments thanks to its wide operating temperature range of -50°C to +120°C. Simply clip this item onto a DIN rail for convenient and tool-free installation.

• Screw clamp terminals secure wires to limit accidental disconnections
• Accommodates wire sizes of 26 to 12AWG for compatibility with different applications
• Light weight of only 6.2g puts little strain on DIN rails

• Medical imaging equipment
• Electrical installations
• Automated assembly and packaging lines
• Transport industry

Thanks to its compact dimensions of 44 (H) x 5.1 (W) x 37mm (D), the item easily fits onto DIN rails in confined enclosures.

It has a voltage rating of 500V for use in medium-duty applications.

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
