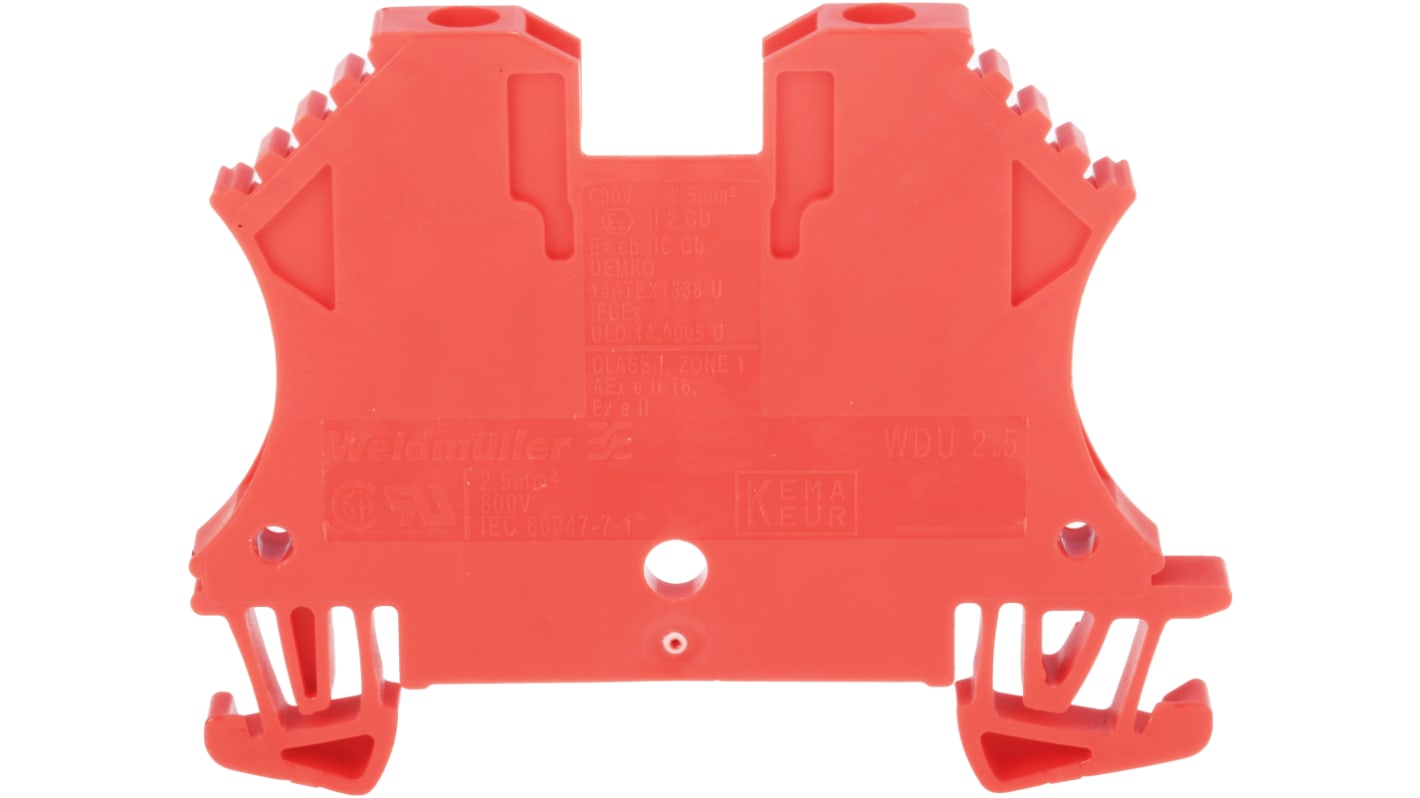

Weidmüller WDU Series Red Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 779-649
- Mfr. Part No.:
- 1020040000
- Brand:
- Weidmüller
1060 In stock - FREE next working day delivery available
660 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.848
(exc. VAT)
£1.018
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £0.848 | £8.48 |
60 - 110 | £0.802 | £8.02 |
120 + | £0.774 | £7.74 |
*price indicative |
- RS Stock No.:
- 779-649
- Mfr. Part No.:
- 1020040000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Weidmuller Feed-Through Terminal Block, Screw Connections, DIN Rail Mounting - WDU Series - 1020040000
Build your electrical circuit in a snap with this feed-through terminal block from Weidmuller. The unit helps to connect and protect equipment in an industrial control cabinet, making it a cinch to assemble a complete electrical setup. Its design lets you join two conductors of the same size to one clamping point, which cuts down on the risk of electric shock. It also ensures a durable connection, so there's little chance of wires working loose. As this terminal block is explosion-proof, you can rely on it in hazardous areas.
• Halogen-free construction means it emits no toxic fumes in the event of a fire
• Snaps onto a DIN rail for quick, tool-free mounting
• PA housing for resistance to corrosion and wear
• Tinned copper contacts are highly conductive to provide optimal electrical flow
• Snaps onto a DIN rail for quick, tool-free mounting
• PA housing for resistance to corrosion and wear
• Tinned copper contacts are highly conductive to provide optimal electrical flow
Applications
• Robotics
• Industrial engineering
• Oil and gas industries
• Industrial engineering
• Oil and gas industries
What size conductors are compatible with this feed-through terminal block?
The component is compatible with wires ranging in size from 30 to 12AWG, allowing you to choose the conductor size that best suits your needs.
Approvals
1-10
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Red |
Number of Levels | Single |
American Wire Gauge | 30 → 12AWG |
Series | WDU |
Termination Method | Screw |
Cable CSA | 2.5mm² |
Current Rating | 32A |
Voltage Rating | 800 V |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
Hazardous Area Certification | ATEX |
Standards Met | ATEX, CE, CSA, EAC, GOSTEX, IEC EX |
