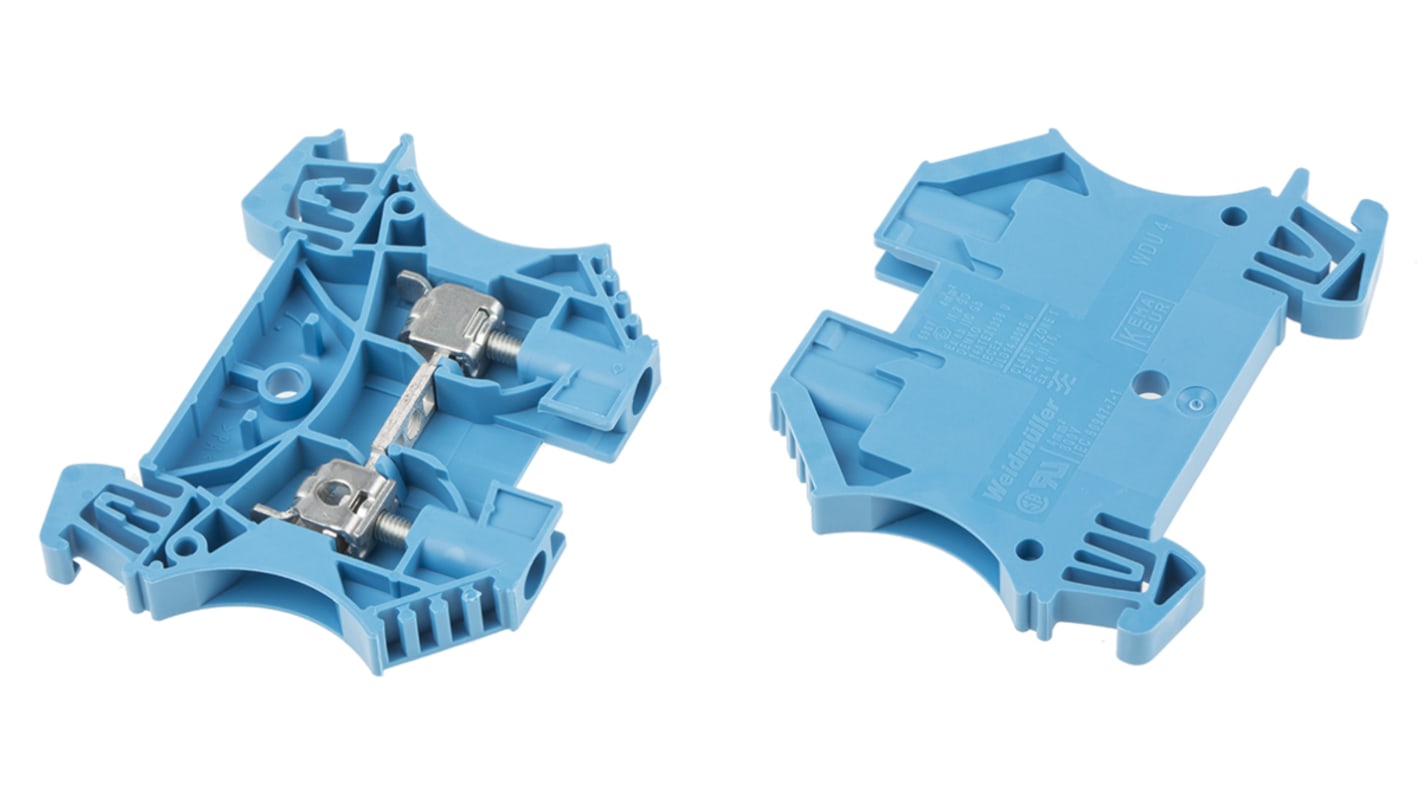

Need a trusty middleman to carry signals from cables to your DIN rail-linked component? Choose this feed-through terminal block from Weidmuller. Thanks to its durable Wemid housing, this piece of kit safely handles wear and impact in harsh industrial settings. A hefty rated impulse withstand voltage of 8kV means that your connected devices are safe and sound from any sudden power spikes.

• Snap-on DIN rail mounting is simple and tool-free to save you time and effort
• Current rating of 41A for use in high-power applications
• Compact dimensions of 60 (H) x 6.1 (W) x 46.5mm (D) make it a space-efficient choice
• Performs optimally in temperatures ranging between -50°C and +120°C, so it's tough enough for demanding environments

• Machine building
• Assembly lines
• Food production industry

To link wires to this unit, simply insert them into the device's screw clamps and fasten them. It takes cable sizes between 26 and 10AWG, so it's a versatile choice.

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
