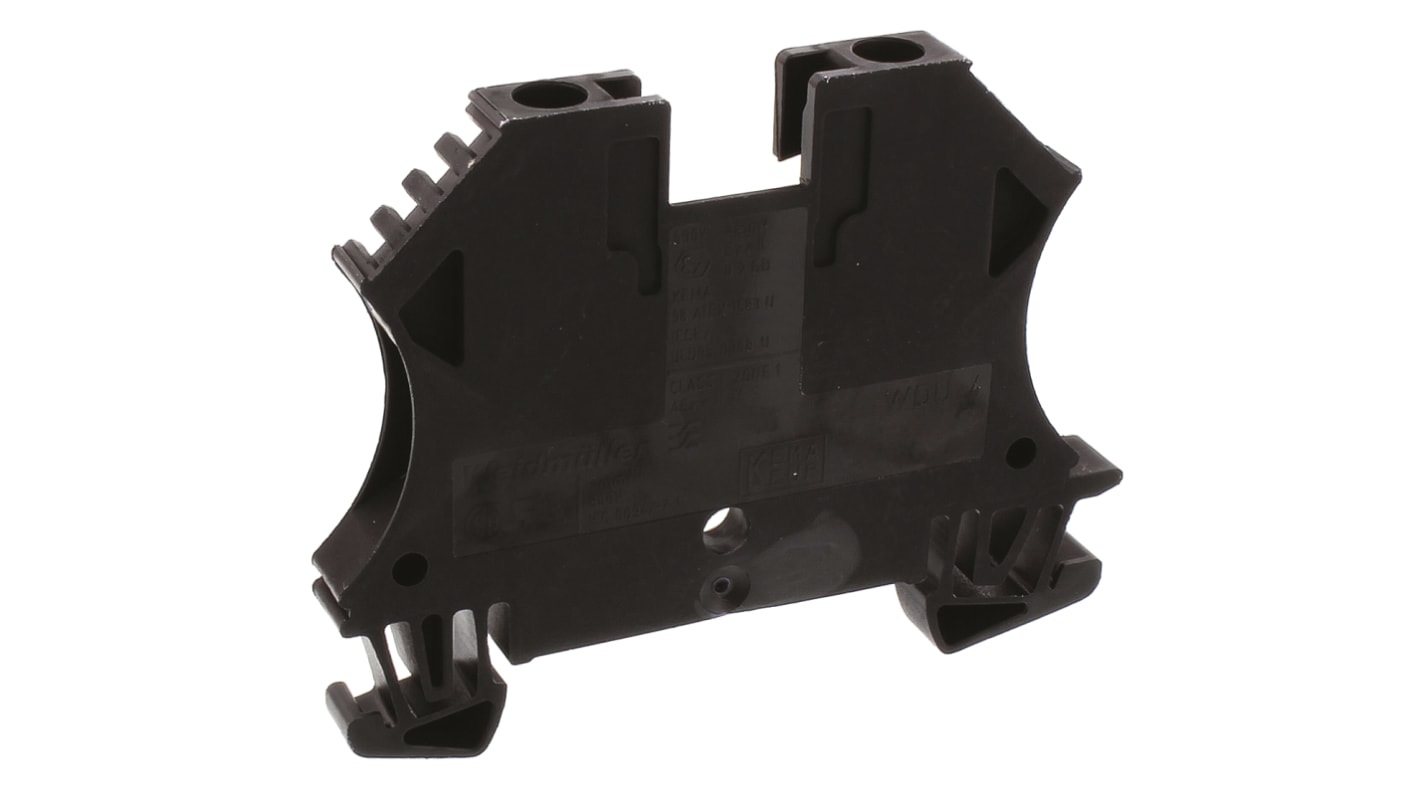

Weidmuller 1020110000 WDU Series Black, 4mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 489-5307
- Mfr. Part No.:
- 1020110000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£8.18
(exc. VAT)
£9.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 590 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.818 | £8.18 |
*price indicative
- RS Stock No.:
- 489-5307
- Mfr. Part No.:
- 1020110000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Black | |
Number of Levels | Single | |
American Wire Gauge | 26 → 10AWG | |
Voltage Rating | 800 V | |
Series | WDU | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Current Rating | 41A | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Hazardous Area Certification | ATEX | |
Standards Met | CCC, CE, CSA, cURus, IECEx, UKCA | |
Model Number | WDU 4 SW | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Black | ||
Number of Levels Single | ||
American Wire Gauge 26 → 10AWG | ||
Voltage Rating 800 V | ||
Series WDU | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Current Rating 41A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Hazardous Area Certification ATEX | ||
Standards Met CCC, CE, CSA, cURus, IECEx, UKCA | ||
Model Number WDU 4 SW | ||
- COO (Country of Origin):
- DE
Weidmuller WDU Series Standard Din Rail Terminal, Screw Termination Method, 800 V Voltage Rating - 1020110000
This Weidmuller standard DIN rail terminal is a reliable and high-quality terminal designed for various applications in different industries. With a current rating of 41 A and a cable CSA of 4 mm², this terminal is ATEX certified for hazardous areas, ensuring safety and performance. The black colour adds versatility to its usage, while the screw termination method offers secure connections.
Features & Benefits
• The cable CSA is 4 mm², providing sufficient cross-sectional area for electrical conductivity
• The current rating is 41 A, ensuring reliable performance under specified load conditions
• It holds hazardous area certification ATEX, suitable for use in potentially explosive atmospheres
• The maximum operating temperature is +120°C, ensuring stable performance in high-temperature environments
• The minimum operating temperature is -50°C, providing operational reliability in cold conditions
• The voltage rating is 800 V, ensuring compatibility with standard industrial voltage requirements
• The current rating is 41 A, ensuring reliable performance under specified load conditions
• It holds hazardous area certification ATEX, suitable for use in potentially explosive atmospheres
• The maximum operating temperature is +120°C, ensuring stable performance in high-temperature environments
• The minimum operating temperature is -50°C, providing operational reliability in cold conditions
• The voltage rating is 800 V, ensuring compatibility with standard industrial voltage requirements
Applications
• Suitable for use in industrial automation systems
• Ideal for electrical control panels
• Essential for power distribution • Used in machinery and equipment manufacturing
• Ideal for electrical control panels
• Essential for power distribution • Used in machinery and equipment manufacturing
Can it withstand extreme temperatures?
Yes, the Weidmuller Standard Din Rail Terminal can operate in temperatures ranging from -50 °C to +120 °C.
Will it provide secure connections?
Yes, with a screw termination method, this terminal ensures reliable and secure connections.
Is it suitable for hazardous areas?
Yes, this terminal is ATEX certified, making it safe for use in hazardous environments.
Can it handle high currents?
Yes, with a current rating of 41 A, this terminal is capable of handling high-powered applications.
What is the voltage rating of this terminal?
The Weidmuller Standard Din Rail Terminal has a voltage rating of 800 V, ensuring compatibility with a wide range of systems.
Approvals
1-11
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
