Weidmuller 1886550000 W Series Black, 4mm², Single-Level, Screw Termination, Fused
- RS Stock No.:
- 768-4620
- Distrelec Article No.:
- 304-02-297
- Mfr. Part No.:
- 1886550000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£5.29
(exc. VAT)
£6.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 135 unit(s) ready to ship
- Plus 417 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.29 |
*price indicative
- RS Stock No.:
- 768-4620
- Distrelec Article No.:
- 304-02-297
- Mfr. Part No.:
- 1886550000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Black | |
Number of Levels | Single | |
American Wire Gauge | 30 → 12AWG | |
Voltage Rating | 500 V | |
Series | W | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Fused | Yes | |
Current Rating | 6.3A | |
Pitch | 9.1mm | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Standards Met | CE, CSA, EAC, ROHS | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Black | ||
Number of Levels Single | ||
American Wire Gauge 30 → 12AWG | ||
Voltage Rating 500 V | ||
Series W | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Fused Yes | ||
Current Rating 6.3A | ||
Pitch 9.1mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Standards Met CE, CSA, EAC, ROHS | ||
- COO (Country of Origin):
- CN
Fused LED
This Weidmüller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and the fuse is shrouded when installed,Single LED indicates fuse failure
Note
The voltage and current ratings are to VDE ratings.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

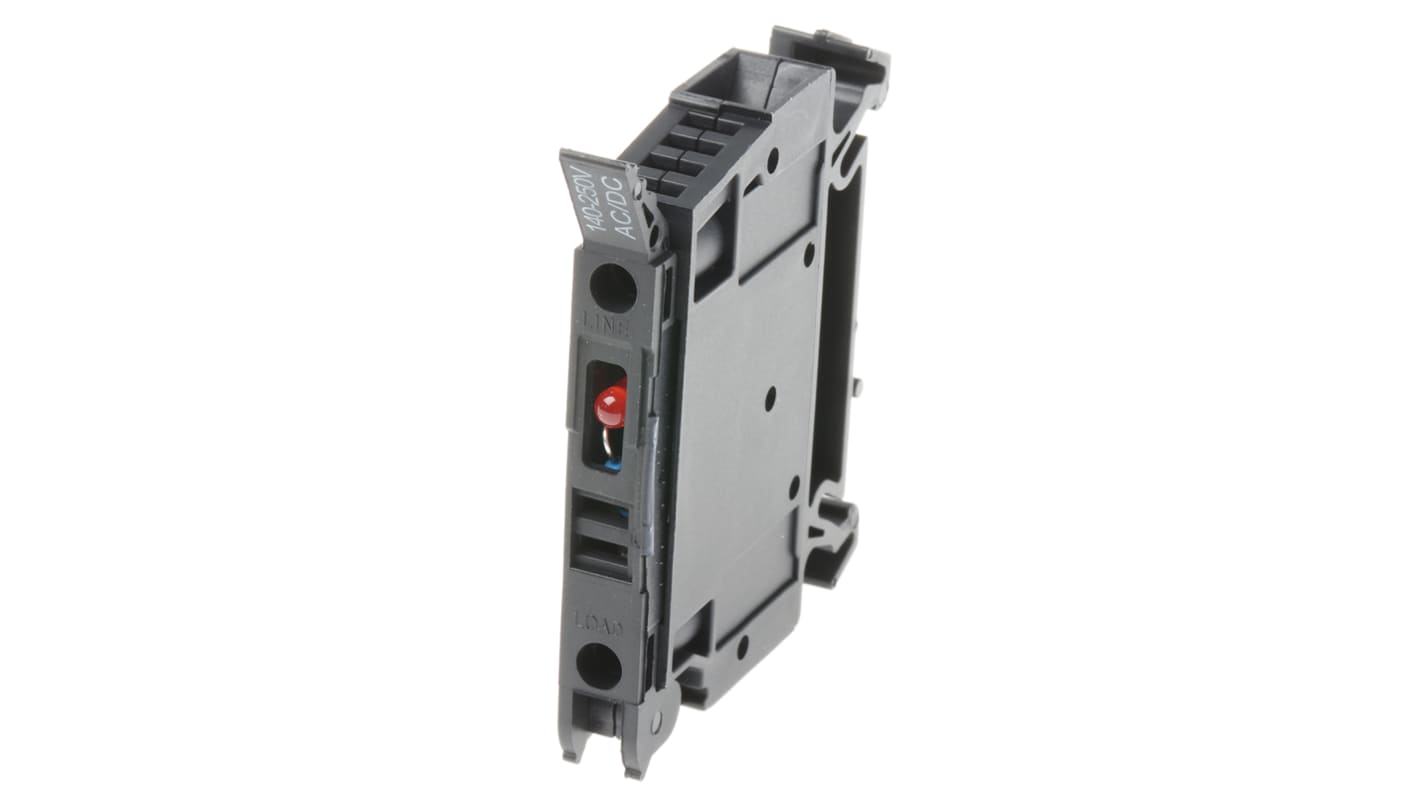

Weidmuller Fused DIN Rail Terminal, 8mm Width, 30 to 12AWG Wire Size - W Series - 1886550000
Neatly link cables in your machinery with this fused DIN rail terminal from Weidmuller. It uses a screw termination method for easy and secure wiring with the aid of a simple screwdriver. A broad operating temperature range between -50°C and +120°C makes this component a reliable choice for use in harsh industrial conditions. Thanks to its current rating of 6.3A, it's suitable for use in high-power applications. The housing is made of Wemid for resistance to heat and impact, so you can depend on this terminal for long-term performance.
Features & Benefits
• Compact dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) for installation in areas with limited space
• Snap-on mounting design for fast and easy installation without the need for specialised tools
• Light weight of 11.78g to place minimal strain on your equipment
• Snap-on mounting design for fast and easy installation without the need for specialised tools
• Light weight of 11.78g to place minimal strain on your equipment
Applications
• Railway facilities
• Automation and robotics
• Lighting control systems
• Automation and robotics
• Lighting control systems
Is this device flame-retardant?
Yes. This device will self-extinguish in 10 seconds in the event of a fire, helping to ensure workplace safety.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
