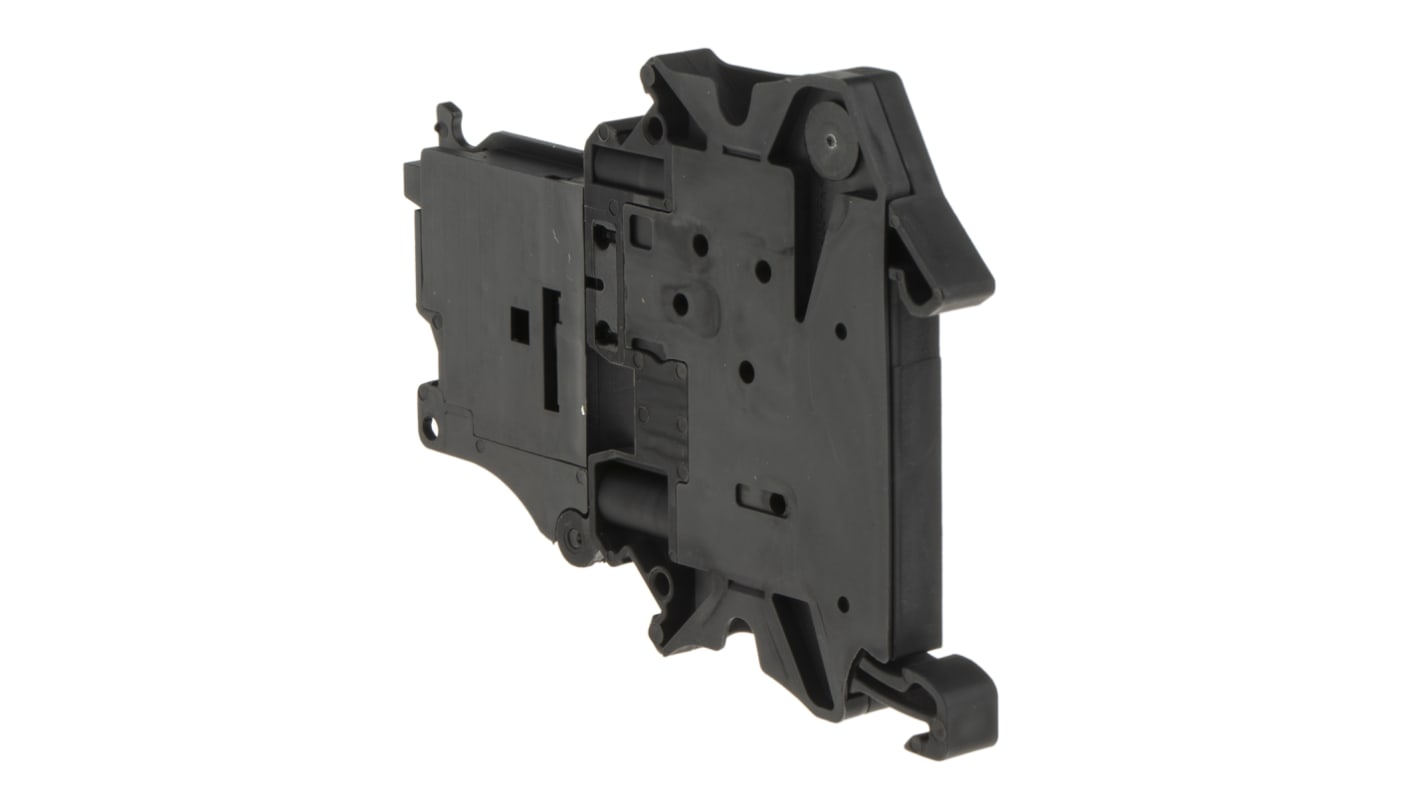

Phoenix Contact UT 4-HESI (5X20) Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused
- RS Stock No.:
- 627-1630
- Mfr. Part No.:
- 3046032
- Brand:
- Phoenix Contact
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Pack of 5
£23.05
(exc. VAT)
£27.66
(inc. VAT)
Pack(s) | Per Pack | Per unit* |
1 + | £23.05 | £4.61 |
*price indicative |
- RS Stock No.:
- 627-1630
- Mfr. Part No.:
- 3046032
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Fused DIN Rail Terminal, 6.2mm Pitch, G / 5 x 20 Fuse Type - UT 4-HESI (5X20) - 3046032
Take your equipment protection up a notch with this fused DIN rail terminal block from Phoenix Contact. It has screw terminals and polyamide housing for insulation, enabling the safe and reliable connection of wires. A width of just 6.2mm means you'll have no trouble squeezing the block onto a crowded DIN rail.
At the front, you'll find a holder for the fuse, which guards against over-currents. For convenience, the unit accepts standard 5 x 20 glass and ceramic cartridge fuses. Designed for class G fuses and rated for 500V, this block is well-suited to industrial applications such as machine building and plant engineering. It's tested to ensure it meets hazard levels one to three of DIN EN 45545-2 fire safety standards for rail vehicles, so it's also suitable for rolling stock manufacturing and repair.
At the front, you'll find a holder for the fuse, which guards against over-currents. For convenience, the unit accepts standard 5 x 20 glass and ceramic cartridge fuses. Designed for class G fuses and rated for 500V, this block is well-suited to industrial applications such as machine building and plant engineering. It's tested to ensure it meets hazard levels one to three of DIN EN 45545-2 fire safety standards for rail vehicles, so it's also suitable for rolling stock manufacturing and repair.
Features & Benefits
• Modular design is compatible with the CLIPLINE range, enabling custom control panel building
• Test connections located on either side of lever for easy circuit checks
• UL 94-V0 flammability rating ensures burning stops within ten seconds to boost fire safety
• Works with wire sizes between 26 and 10AWG for wide compatibility
• Test connections located on either side of lever for easy circuit checks
• UL 94-V0 flammability rating ensures burning stops within ten seconds to boost fire safety
• Works with wire sizes between 26 and 10AWG for wide compatibility
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
---|---|
Colour | Black |
Number of Levels | Single |
American Wire Gauge | 26 → 10AWG |
Series | UT 4-HESI (5X20) |
Termination Method | Screw |
Cable CSA | 4mm² |
Fused | Yes |
Current Rating | 6.3A |
Voltage Rating | 500 V |
Pitch | 6.2mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +110°C |
Standards Met | CSA, cULus |
Model Number | UT 4-HESI (5X20) |
