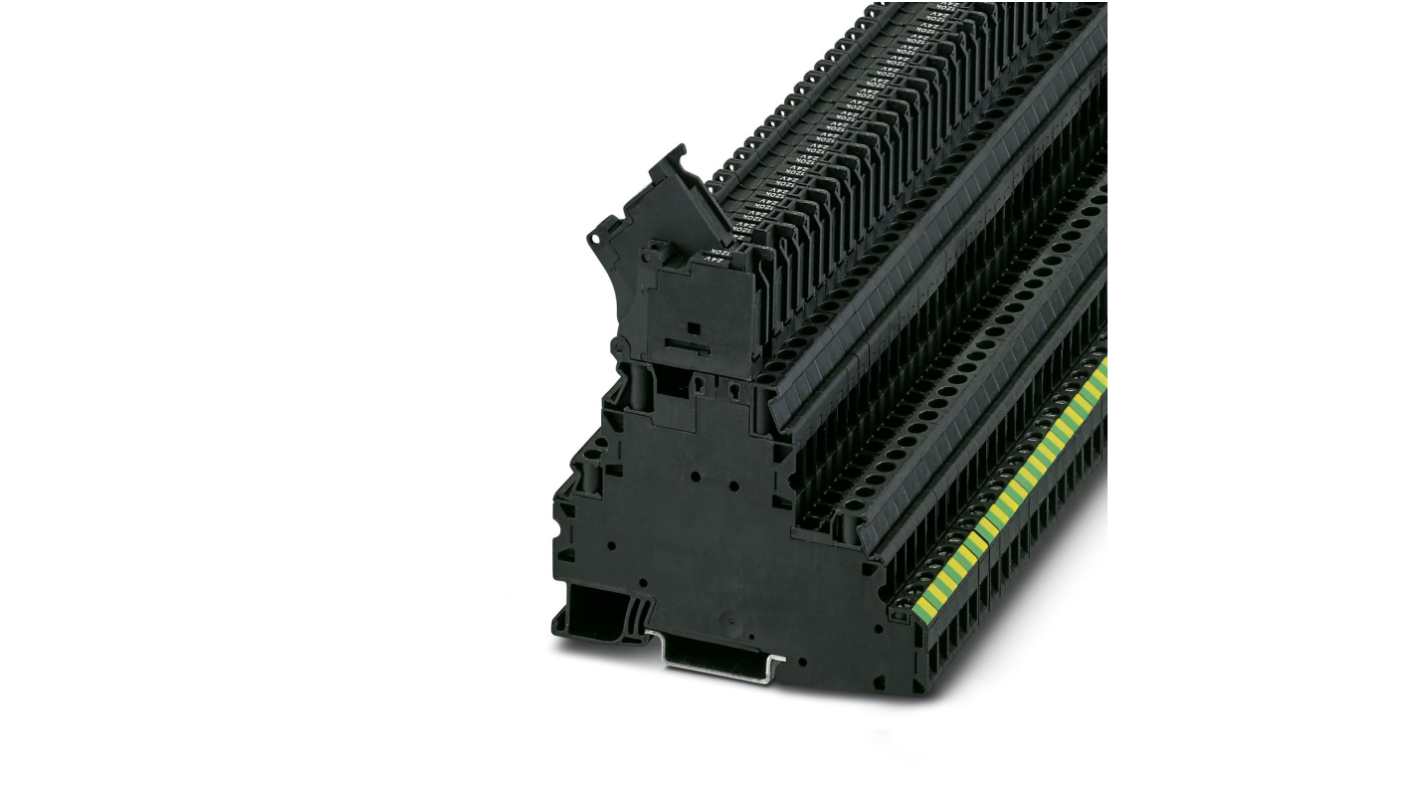

Phoenix Contact 3214321 UT 4-PE/L/HESILED 24 (5X20) Series Fuse Modular Terminal Block Black, 4mm², 3-Level Fused,
- RS Stock No.:
- 866-6853
- Mfr. Part No.:
- 3214321
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£17.43
(exc. VAT)
£20.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 27 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.43 |
*price indicative
- RS Stock No.:
- 866-6853
- Mfr. Part No.:
- 3214321
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black | |
| Product Type | Fuse Modular Terminal Block | |
| Number of Levels | 3 | |
| Series | UT 4-PE/L/HESILED 24 (5X20) | |
| Voltage | 500V | |
| Minimum Wire Size AWG | 26AWG | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Fused | Yes | |
| Terminal Block Current | 28A | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Screw | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | IEC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Product Type Fuse Modular Terminal Block | ||
Number of Levels 3 | ||
Series UT 4-PE/L/HESILED 24 (5X20) | ||
Voltage 500V | ||
Minimum Wire Size AWG 26AWG | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 10AWG | ||
Fused Yes | ||
Terminal Block Current 28A | ||
Minimum Operating Temperature -60°C | ||
Termination Type Screw | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals IEC | ||
- COO (Country of Origin):
- PL
Phoenix Contact Fused DIN Rail Terminal, 5 Connectors, 28A Current Rating - UT 4-PE/L/HESILED 24 (5X20) 120KOHM - 3214321
Make a secure connection in a jiffy with this fused DIN rail terminal from Phoenix Contact. You can use it to connect together wires from multiple pieces of equipment in your automation setup. The terminal offers five connections and three levels, allowing you to save space in your panel by connecting control, signal and power cables in the same unit. To provide protection to your personnel and equipment, it has a rated surge voltage of 6kV and contains a glass fuse that will cut the circuit in the event of an overcurrent.
DIN rail mounting makes it quick and easy to install this block in your setup. Screw terminals are on hand for hassle-free wiring. Thanks to a voltage rating of 500V and a current rating of 28A, this is a suitable choice for high-voltage applications such as industrial automation, transportation networks and automotive manufacturing.
• Compact dimensions of 6.2 (W) x 92.7 (L) x 88.9mm (H) make it a space-efficient option
• Lever-type fuse suitable for use in potentially explosive areas
