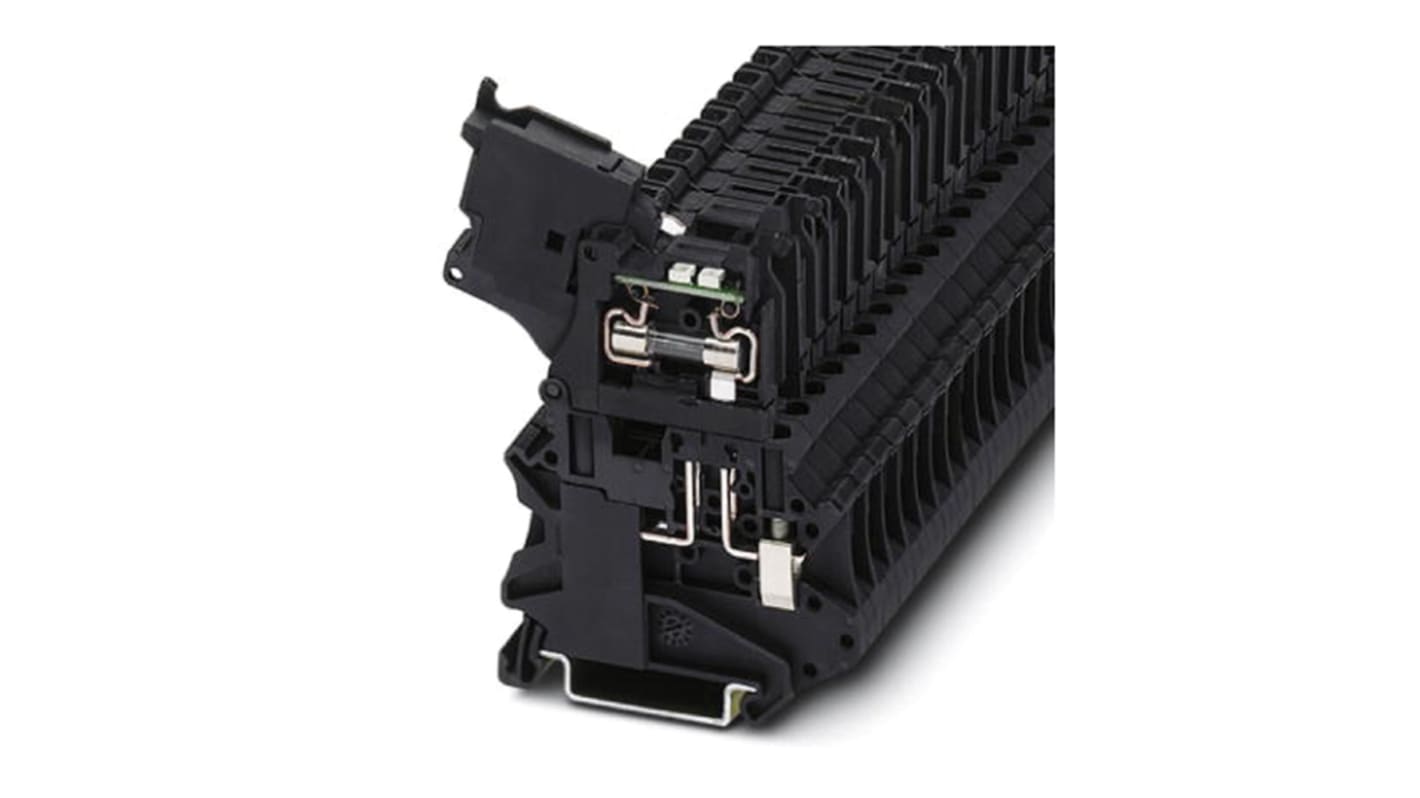

Phoenix Contact 3074172 UT 4-HESILED 24 (5X20)GY Series Fuse Modular Terminal Block Grey, 0.14mm², 6 mm², 1-Level Fused,
- RS Stock No.:
- 858-0526
- Mfr. Part No.:
- 3074172
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£537.70
(exc. VAT)
£645.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £537.70 | £10.754 |
*price indicative
- RS Stock No.:
- 858-0526
- Mfr. Part No.:
- 3074172
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Fuse Modular Terminal Block | |
| Colour | Grey | |
| Number of Levels | 1 | |
| Number of Positions | 1 | |
| Voltage | 24V | |
| Series | UT 4-HESILED 24 (5X20)GY | |
| Cable CSA | 0.14, 6mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Fused | Yes | |
| Maximum Wire Size AWG | 10AWG | |
| Pitch | 6.2mm | |
| Termination Type | Screw | |
| Minimum Operating Temperature | 60°C | |
| Terminal Block Current | 6.3A | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Fuse Modular Terminal Block | ||
Colour Grey | ||
Number of Levels 1 | ||
Number of Positions 1 | ||
Voltage 24V | ||
Series UT 4-HESILED 24 (5X20)GY | ||
Cable CSA 0.14, 6mm² | ||
Minimum Wire Size AWG 26AWG | ||
Fused Yes | ||
Maximum Wire Size AWG 10AWG | ||
Pitch 6.2mm | ||
Termination Type Screw | ||
Minimum Operating Temperature 60°C | ||
Terminal Block Current 6.3A | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Fuse modular terminal block, fuse type: Glass / ceramics / ..., number of positions: 1, connection method: Screw connection, cross section: 0.14 mm²- 6 mm², AWG: 26 - 10, nominal current: 6.3 A, nom. voltage: 24 V, width: 6.2 mm, fuse type: G / 5 x 20, mounting type: NS 35/7,5, NS 35/15, color: gray
