Phoenix Contact 3047691 UT 4-MTD BK Series Black, 4mm², Single-Level, Screw Termination

View all DIN Rail Terminal Blocks

Subtotal (1 unit)*

£1.39

(exc. VAT)

£1.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1.39

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
804-3399
Mfr. Part No.:
3047691
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Black

Number of Levels

Single

Voltage Rating

800 V

American Wire Gauge

26 → 10AWG

Series

UT 4-MTD BK

Termination Method

Screw

Cable CSA

4mm²

Current Rating

32A

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+110°C

Standards Met

IEC 60947-7-1

Model Number

UT 4-MTD BK

COO (Country of Origin):
DE

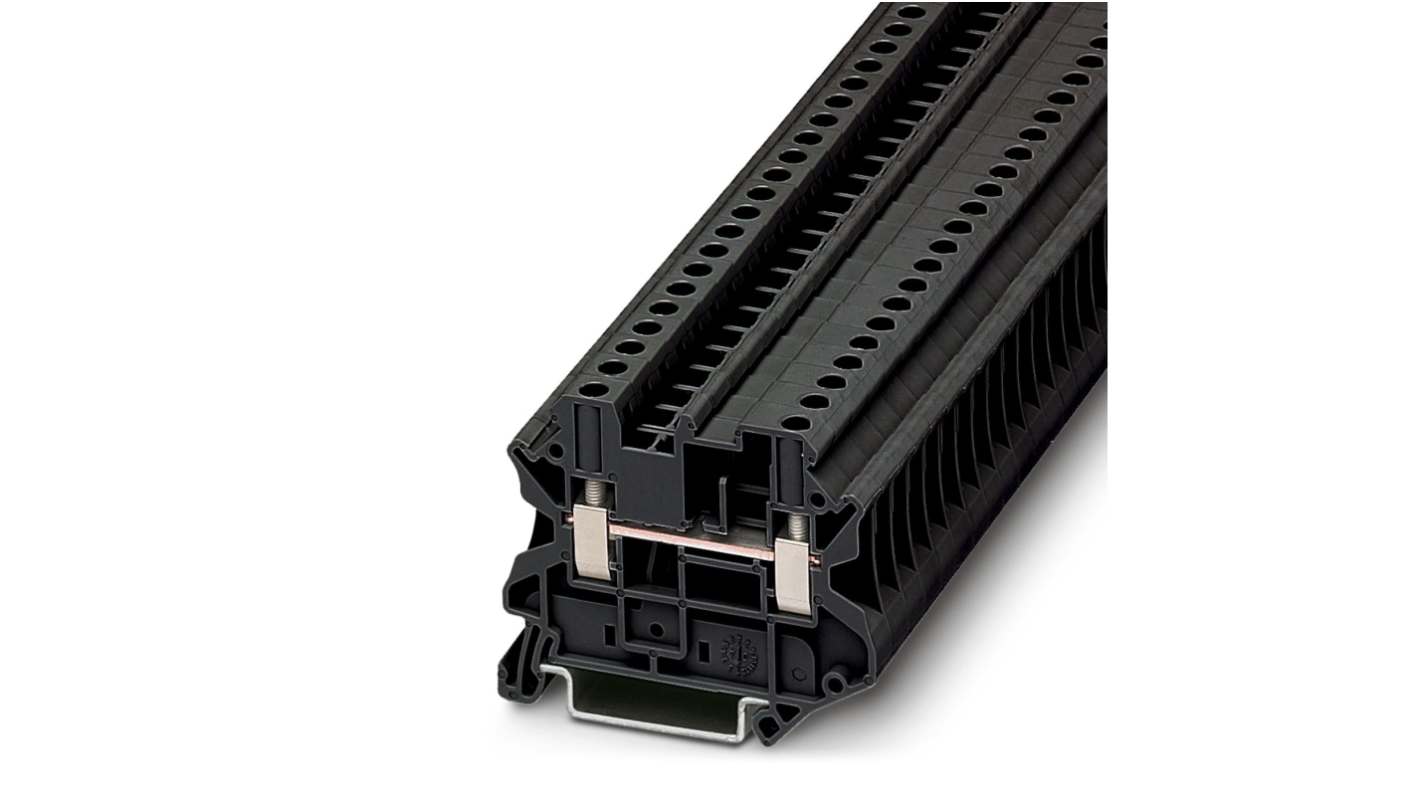

Phoenix Contact UT 4-MTD BK Series Feed Through Terminal Block, 26 to 10 AWG, 4mm² Cable CSA - 3047691


This feed-through terminal block is suitable for reliable connections in various industrial applications. With a high voltage capacity of up to 800V and a current rating of 32A, it is an important component for automation and electrical systems. The block supports a broad range of conductor sizes, ensuring versatility for different wiring needs in challenging environments.

Features & Benefits


• Screw termination method ensures secure connections
• Accommodates conductor sizes from 0.14mm² to 6mm² for flexibility
• Rated for a high surge voltage of up to 8kV, enhancing system resilience
• Compliant with IEC 60947-7-1 to meet industry standards

Applications


• Suitable for connecting conductors in complex electrical circuits
• Commonly used in control cabinets for enhanced organisation
• Appropriate for requiring robust electrical connections
• Effective in environments subject to extreme temperature variations

How do the temperature ratings affect its use in different environments?


It functions effectively at temperatures from -60°C to +110°C, allowing its use in extreme conditions.

What mounting options are available for installing this terminal block?


It is designed for NS 35/7.5 and NS 35/15 mounting types, providing flexibility for installation.

What are the tightening torque requirements for proper installation?


The recommended tightening torque ranges from 0.6Nm to 0.8Nm to ensure secure connections.


Phoenix Contact CLIPLINE UT Range
