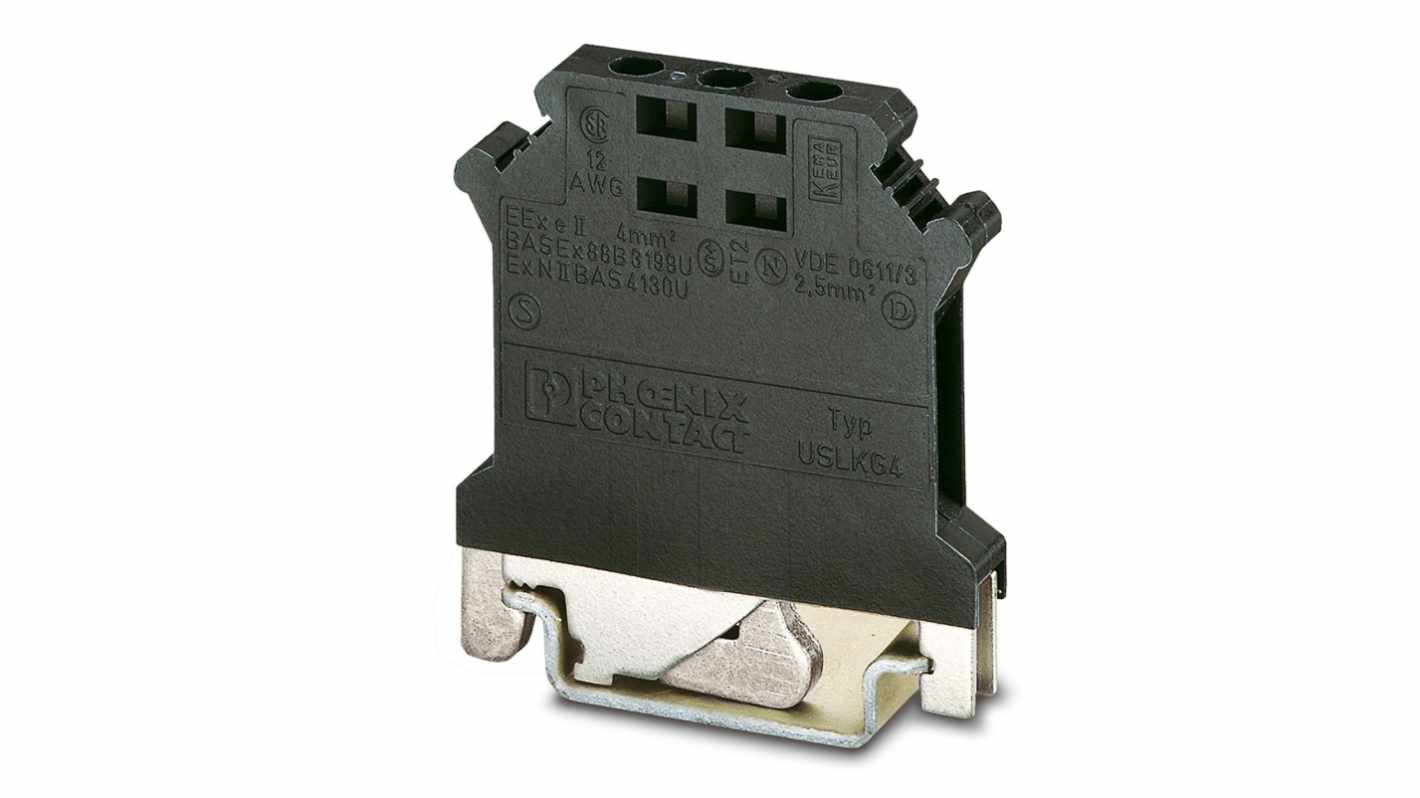

Phoenix Contact 2798789 USLKG 4 BK/BK Series Black, 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 270-0368
- Mfr. Part No.:
- 2798789
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£655.35
(exc. VAT)
£786.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,950 unit(s) shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £13.107 | £655.35 |
*price indicative
- RS Stock No.:
- 270-0368
- Mfr. Part No.:
- 2798789
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Black | |
Number of Levels | Single | |
Series | USLKG 4 BK/BK | |
American Wire Gauge | 24 → 12AWG | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Number of Levels Single | ||
Series USLKG 4 BK/BK | ||
American Wire Gauge 24 → 12AWG | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TR
Phoenix Contact, USLKG Series of Earth Block
The Phoenix Contact USLKG series of Earth block offers you reliable grounding for your earthing wires, increase protection for personnel and equipment from interference such as EMI. The USLKG series offers "Plug&Play" style DIN rail mounting, allowing you to easily interchange/modify the set up of your earth blocks. The USLKG series performs well in different environments and has a good operating temperature range.
Features and Benefits
USLKG DIN Rail mountable
Screw Connection, feature 2 connections
Industry-wide green/yellow colouring for easy identification
Available in various widths ranging from 5.2 - 12.2mm
PA Insulating material
Overvoltage category 3 protection
ATEX Rated
Screw Connection, feature 2 connections
Industry-wide green/yellow colouring for easy identification
Available in various widths ranging from 5.2 - 12.2mm
PA Insulating material
Overvoltage category 3 protection
ATEX Rated
Typical Applications
Control centers
Distribution boards
Distribution boards
The Phoenix Contact reference potential terminal block is with black insulation housing for mounting on DIN Rail NS 32 or NS 35/7..
Environmental friendly
No hazardous substances above threshold values
No hazardous substances above threshold values
