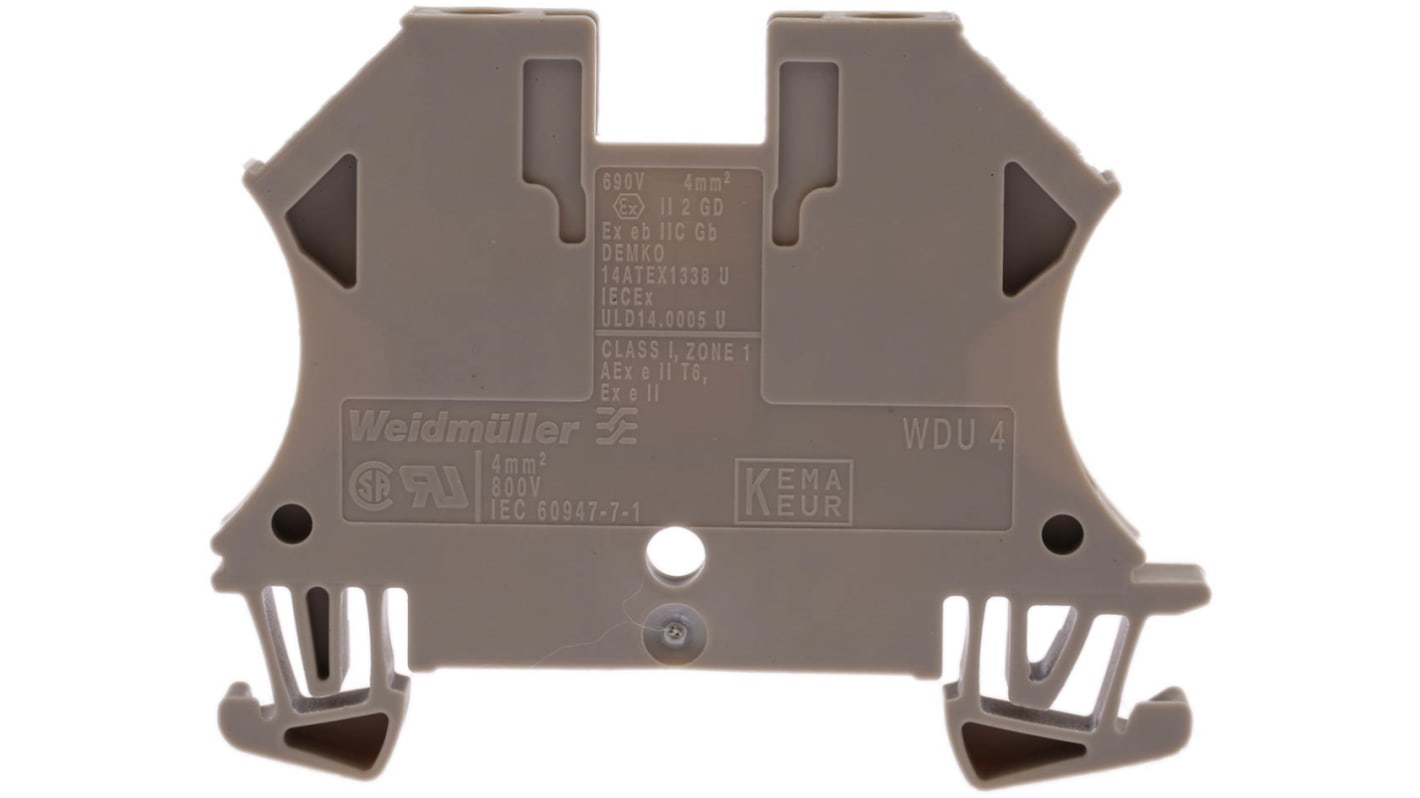

Weidmüller 1020100000 WDU Series Feed Through Terminal Block Beige, 4mm², 1-Level, Screw, ATEX
- RS Stock No.:
- 425-207
- Distrelec Article No.:
- 304-28-749
- Mfr. Part No.:
- 1020100000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£7.68
(exc. VAT)
£9.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 597 unit(s) shipping from 16 June 2026
- Plus 95 unit(s) shipping from 16 June 2026
- Plus 77 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £7.68 | £0.768 |
*price indicative
- RS Stock No.:
- 425-207
- Distrelec Article No.:
- 304-28-749
- Mfr. Part No.:
- 1020100000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige | |
| Product Type | Feed Through Terminal Block | |
| Sub Type | Terminal | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Series | WDU | |
| Minimum Wire Size AWG | 26AWG | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Termination Type | Screw | |
| Terminal Block Current | 32A | |
| Minimum Operating Temperature | -50°C | |
| Hazardous Area Certification | ATEX | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige | ||
Product Type Feed Through Terminal Block | ||
Sub Type Terminal | ||
Number of Levels 1 | ||
Voltage 800V | ||
Series WDU | ||
Minimum Wire Size AWG 26AWG | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 10AWG | ||
Termination Type Screw | ||
Terminal Block Current 32A | ||
Minimum Operating Temperature -50°C | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Weidmuller Feed-Through Terminal Block, 32A Current Rating, 26 to 10AWG Wire Size - WDU Series - 1020100000
Use this feed-through terminal block from Weidmuller to safely link cables to your electrical panels and equipment. Thanks to its two-way configuration, you can connect up to two wires for a tidy setup. This unit's housing is made from a Wemid thermoplastic material, which provides resistance to heat and wear for use in harsh environments. Its current rating of 32A and its voltage rating of 800V make this terminal block a safe choice for heavy-duty industrial applications.
Features & Benefits
• Rated impulse withstand voltage of 8kV to handle sudden spikes in voltage
• Compatible with wires ranging in size from 26 to 10AWG in size for versatility
• Wide operating temperature range of -50°C to +120°C for use in extreme conditions
• Snap-on mounting on a DIN rail for simple, tool-free installation
Applications
• Automotive manufacturing
• Oil and gas plants
• Electrical transmission stations
How large is this terminal block?
This terminal block has compact dimensions of 60 (L) x 6.1 (W) x 46.5mm (H), making it a practical choice for setups where space is limited.
’W’ Series Terminal Blocks
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.
Features and Benefits:
Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals
Product Application Information
Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.
A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
