Weidmuller 1020580000 WDU Series Blue, 50mm², Single-Level, Screw Termination, ATEX, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£45.39

(exc. VAT)

£54.47

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 130 left, ready to ship
  • Plus 910 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£4.539£45.39

*price indicative

Sponsored
Weidmuller Jumper Bars
Weidmuller Jumper Bars
Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications
Explore Weidmuller Jumper Bars
RS Stock No.:
220-4204
Mfr. Part No.:
1020580000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Colour

Blue

Number of Levels

Single

American Wire Gauge

12 → 2AWG

Series

WDU

Voltage Rating

1 kV

Termination Method

Screw

Cable CSA

50mm²

Fused

No

Current Rating

150A

Pitch

16mm

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+130°C

Hazardous Area Certification

ATEX, IECEx

Standards Met

CE, RoHS Compliant

COO (Country of Origin):
DE

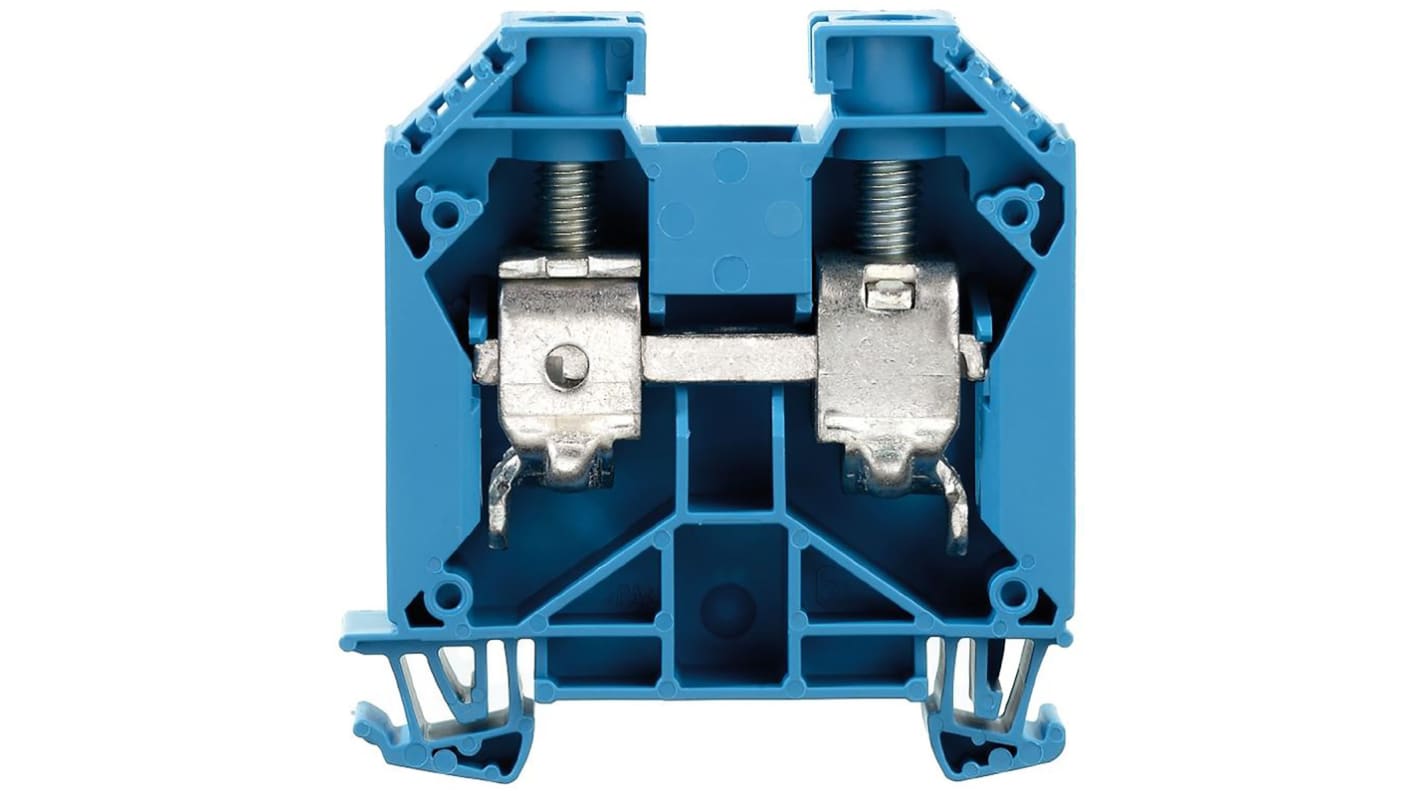

Weidmuller WDU Series Feed Through Terminal Block, 150A Current Rating, 1kV Voltage Rating - 1020580000


This feed through terminal block is an essential component in electrical engineering and panel building. Designed to connect multiple conductors, this screw terminal block offers a robust construction with a striking blue colour. It operates within a wide temperature range of -60°C to +130°C, making it suitable for a variety of industrial applications. With a compact width of 16mm and a height of 60mm, this reliable device ensures efficient connectivity in confined spaces.

Features & Benefits


• High current rating of 150A for demanding applications
• Screw connection facilitates secure and simple installation
• ATEX and IECEx certified for hazardous area usage
• Supports cable cross-sectional area up to 50mm²
• Compliant with CE and RoHS standards for environmental safety
• Offers a versatile operating temperature range for extreme conditions

Applications


• Used for connecting power or signal conductors in panels
• Suitable for installations in hazardous locations
• Employed in industrial settings for effective signalling and data transmission

What are the maximum and minimum conductor cross-sectional areas acceptable for this device?


The terminal block accommodates a maximum conductor cross-section of 50mm² and a minimum of 2.5mm², ensuring versatility for various wire sizes.

How does this terminal block ensure compliance with safety standards?


The device meets ATEX and IECEx standards, ensuring it is suitable for use in potentially explosive atmospheres. Additionally, it adheres to CE and RoHS regulations for safety and environmental considerations.

What is the significance of the temperature range specified for this terminal block?


The temperature range of -60°C to +130°C indicates its capability to operate effectively in extreme conditions, making it suitable for various applications across different industries.
