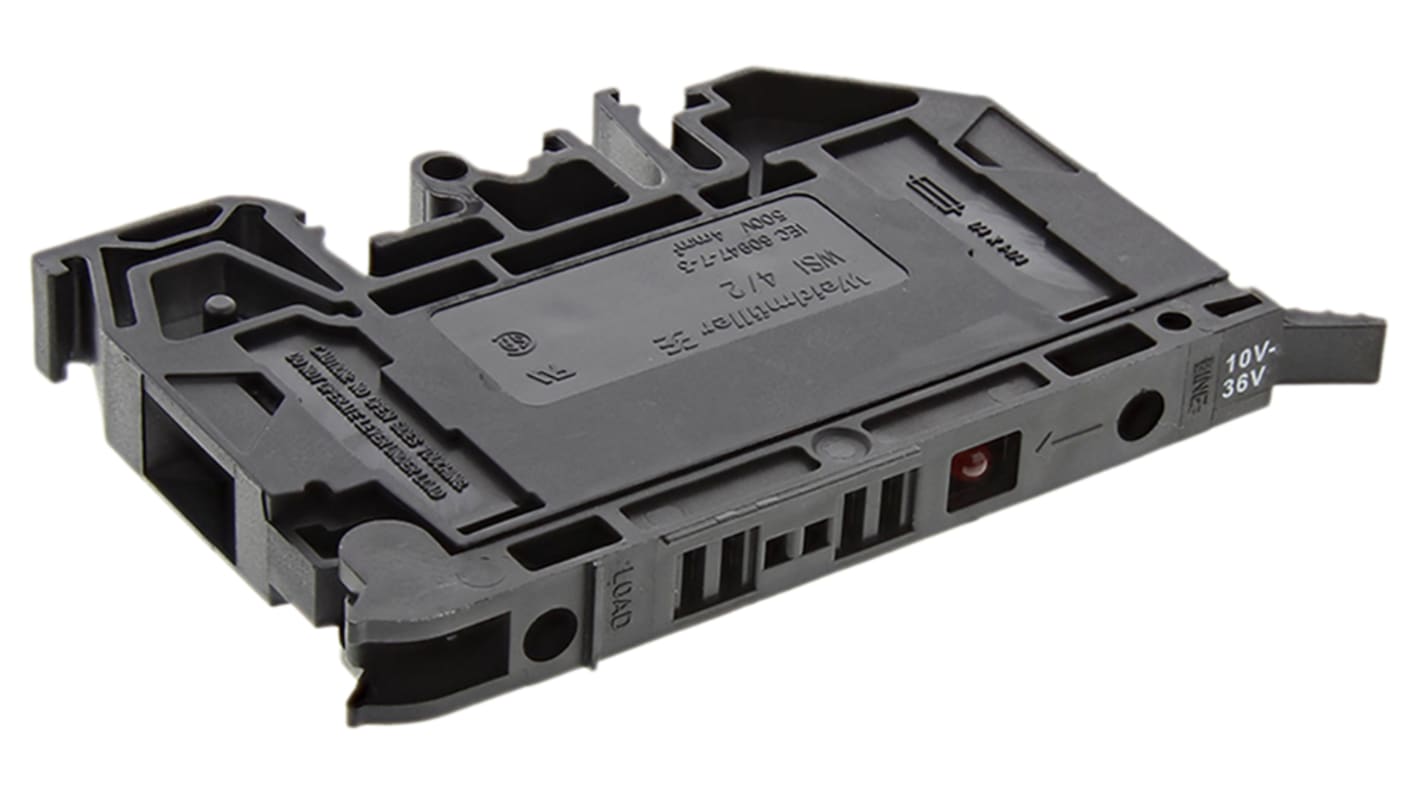

This Weidmüller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and the fuse is shrouded when installed,Single LED indicates fuse failure

The voltage and current ratings are to VDE ratings.

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

This Weidmüller fused DIN rail terminal with a current rating of 15A is designed for use with 30 to 10 AWG. Suitable for a voltage rating of 500V, this terminal features screw termination method and is compatible with TS35 rail type. With a minimum operating temperature of -50 °C and a maximum of +120 °C, this terminal ensures reliable performance in a variety of conditions.

• Wide operating temperature range of -50 °C to +120 °C provides versatility
• Screw termination method ensures secure connections
• Compatible with TS35 rail type for easy installation
• Suitable for American Wire Gauge sizes 30 to 10, catering to various wire needs
• Maximum voltage rating of 500V for safe and efficient operation

• Ideal for use in industrial automation applications
• Suitable for electrical installations in machinery and control systems

Yes, it is suitable for 30 to 10 AWG wire sizes.

Yes, it is designed for voltage rating of 500V.

Yes, it is compatible with TS35 rail type for easy installations.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
