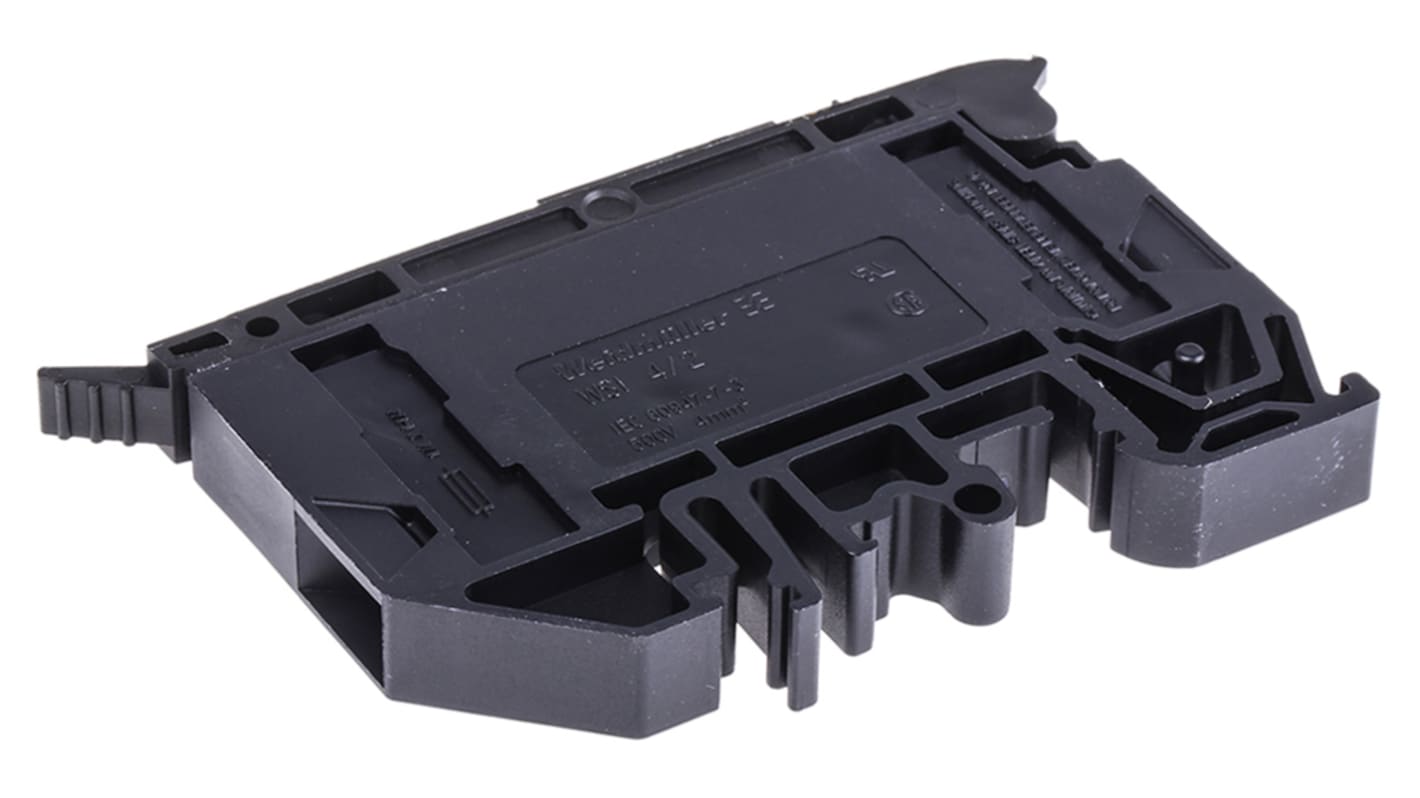

Weidmuller 1880390000 W Series Black, Single-Level, Screw Termination
- RS Stock No.:
- 768-4618
- Mfr. Part No.:
- 1880390000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£4.51
(exc. VAT)
£5.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 104 unit(s) ready to ship
- Plus 575 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £4.51 |
*price indicative
- RS Stock No.:
- 768-4618
- Mfr. Part No.:
- 1880390000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Black | |
Number of Levels | Single | |
Voltage Rating | 500 V | |
American Wire Gauge | 30 → 10AWG | |
Series | W | |
Termination Method | Screw | |
Current Rating | 15A | |
Pitch | 9.1mm | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Black | ||
Number of Levels Single | ||
Voltage Rating 500 V | ||
American Wire Gauge 30 → 10AWG | ||
Series W | ||
Termination Method Screw | ||
Current Rating 15A | ||
Pitch 9.1mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- CN
Fused LED
This Weidmüller Fuse terminal is available in two different types, Fuse terminal with pivoting retaining lever and Fuse terminal with plug in SIHA fuse holder. The fuse holder is opened lever style and the fuse is shrouded when installed,Single LED indicates fuse failure
Note
The voltage and current ratings are to VDE ratings.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
