Weidmuller 1886590000 W Series Black, 0.5 → 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 768-4627
- Distrelec Article No.:
- 304-02-298
- Mfr. Part No.:
- 1886590000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£5.29
(exc. VAT)
£6.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 459 unit(s) ready to ship
- Plus 627 unit(s) ready to ship from another location
- Plus 450 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.29 |
*price indicative
- RS Stock No.:
- 768-4627
- Distrelec Article No.:
- 304-02-298
- Mfr. Part No.:
- 1886590000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Black | |
Number of Levels | Single | |
Series | W | |
American Wire Gauge | 30 → 12AWG | |
Termination Method | Screw | |
Cable CSA | 0.5 → 4mm² | |
Current Rating | 6.3A | |
Pitch | 9.1mm | |
Standards Met | CE | |
Model Number | WSI 4/LD 10-36V AC/DC | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Black | ||
Number of Levels Single | ||
Series W | ||
American Wire Gauge 30 → 12AWG | ||
Termination Method Screw | ||
Cable CSA 0.5 → 4mm² | ||
Current Rating 6.3A | ||
Pitch 9.1mm | ||
Standards Met CE | ||
Model Number WSI 4/LD 10-36V AC/DC | ||
- COO (Country of Origin):
- CN

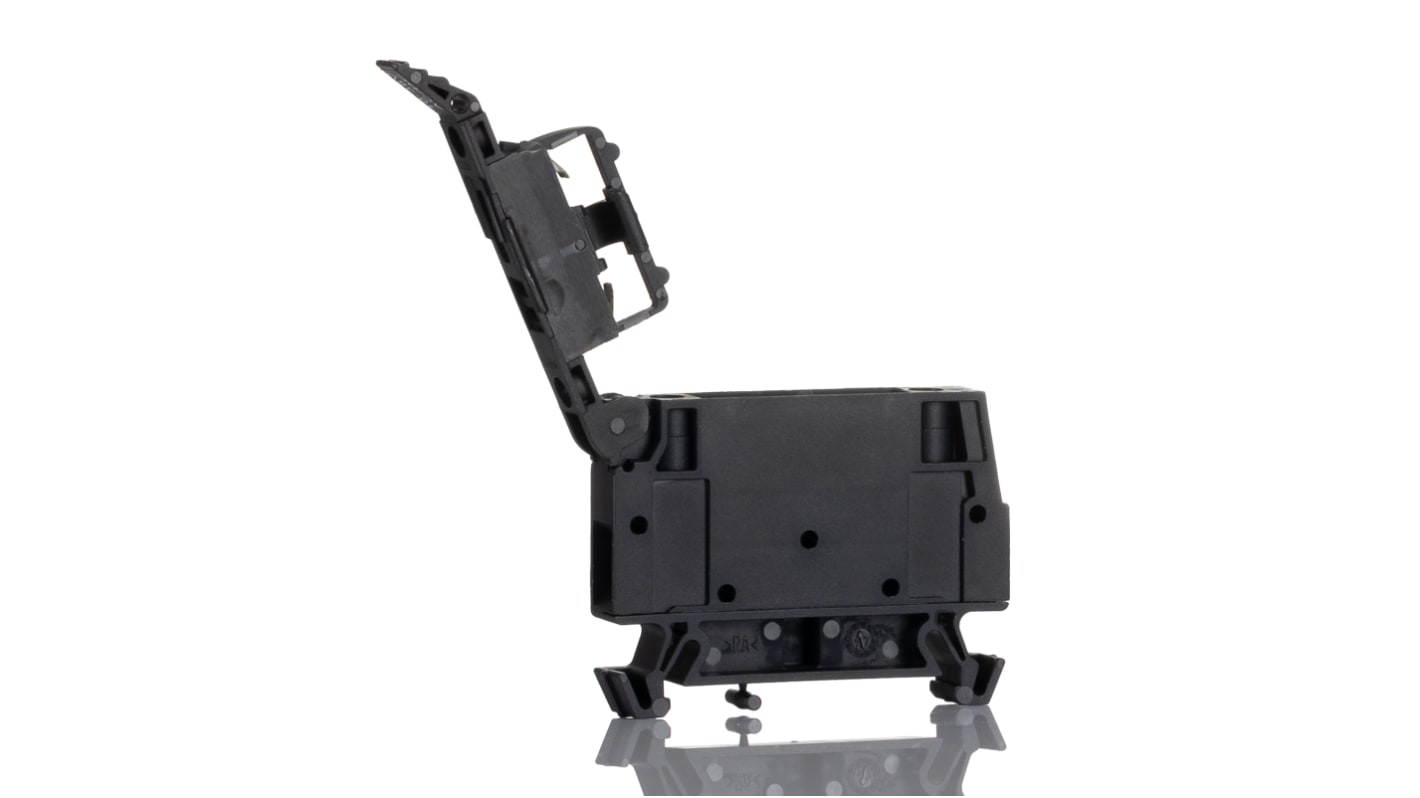

Weidmuller Fused DIN Rail Terminal, 6.3A Current Rating, 9.1mm Pitch - W-Series - 1886590000
Beef up your system with protection against overcurrent and short circuits using this fused DIN rail terminal from Weidmuller. It holds a standard 5 x 20mm-sized cartridge fuse (563-699), making it a breeze to reset your equipment after a short circuit. The LED display enables effortless monitoring of the unit's power status. As it simply clips onto a DIN rail, you can mount it in a snap to get your system up and running in no time.
• Compatible with wire sizes between 30 and 12AWG to suit many different setups
• Screw connection ensures secure wiring using just a screwdriver
• Slim dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) to maximise space on your DIN rail
• Operating voltage range between 10 and 36V AC/DC for flexibility in your power supply options
• Screw connection ensures secure wiring using just a screwdriver
• Slim dimensions of 50.7 (H) x 8 (W) x 42.5mm (D) to maximise space on your DIN rail
• Operating voltage range between 10 and 36V AC/DC for flexibility in your power supply options
Applications
• Automated systems
• Energy management
• HVAC equipment
• Transportation industry
• Energy management
• HVAC equipment
• Transportation industry
What temperatures can this unit withstand?
This component has a broad operating temperature range between -50°C and +120°C to suit installation in even the most demanding conditions.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
