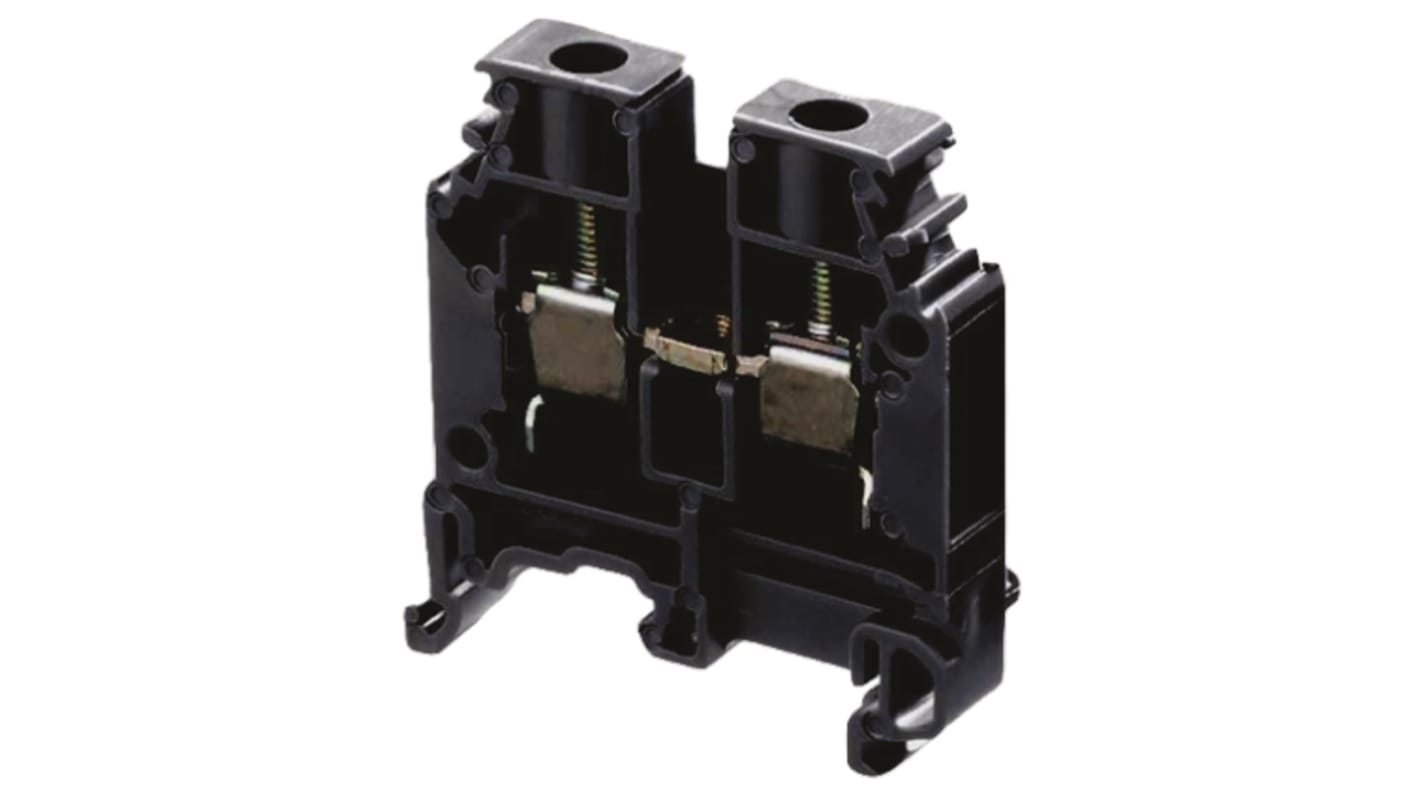

Entrelec 1SNA400239R1500 SNA Series DIN Rail Terminal Black, 6mm², 1-Level, Screw
- RS Stock No.:
- 771-7916
- Mfr. Part No.:
- 1SNA400239R1500
- Brand:
- Entrelec
Subtotal (1 unit)*
£1.93
(exc. VAT)
£2.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.93 |
*price indicative
- RS Stock No.:
- 771-7916
- Mfr. Part No.:
- 1SNA400239R1500
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Product Type | DIN Rail Terminal | |
| Colour | Black | |
| Sub Type | Feed Through | |
| Number of Positions | 2 | |
| Number of Levels | 1 | |
| Series | SNA | |
| Voltage | 1000V ac | |
| Cable CSA | 6mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 8AWG | |
| Pitch | 8mm | |
| Minimum Operating Temperature | -5°C | |
| Terminal Block Current | 41A | |
| Termination Type | Screw | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | IP20, UL | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Product Type DIN Rail Terminal | ||
Colour Black | ||
Sub Type Feed Through | ||
Number of Positions 2 | ||
Number of Levels 1 | ||
Series SNA | ||
Voltage 1000V ac | ||
Cable CSA 6mm² | ||
Minimum Wire Size AWG 22AWG | ||
Fused No | ||
Maximum Wire Size AWG 8AWG | ||
Pitch 8mm | ||
Minimum Operating Temperature -5°C | ||
Terminal Block Current 41A | ||
Termination Type Screw | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals IP20, UL | ||
M6/8 screw clamp terminal blocks Feed Through
M6/8 Screw clamp terminal blocks with feed-through function.
Features and benefits
• Rated Cross-Section: 6 mm²
• 8 mm Spacing
• Sub-Function: 2 connections
• Flexibility to snap onto symmetrical and asymmetrical DIN Rails
• Different colours available to help quickly identify specific functions
SNA Series Screw Clamp Terminal Blocks Feed Through
